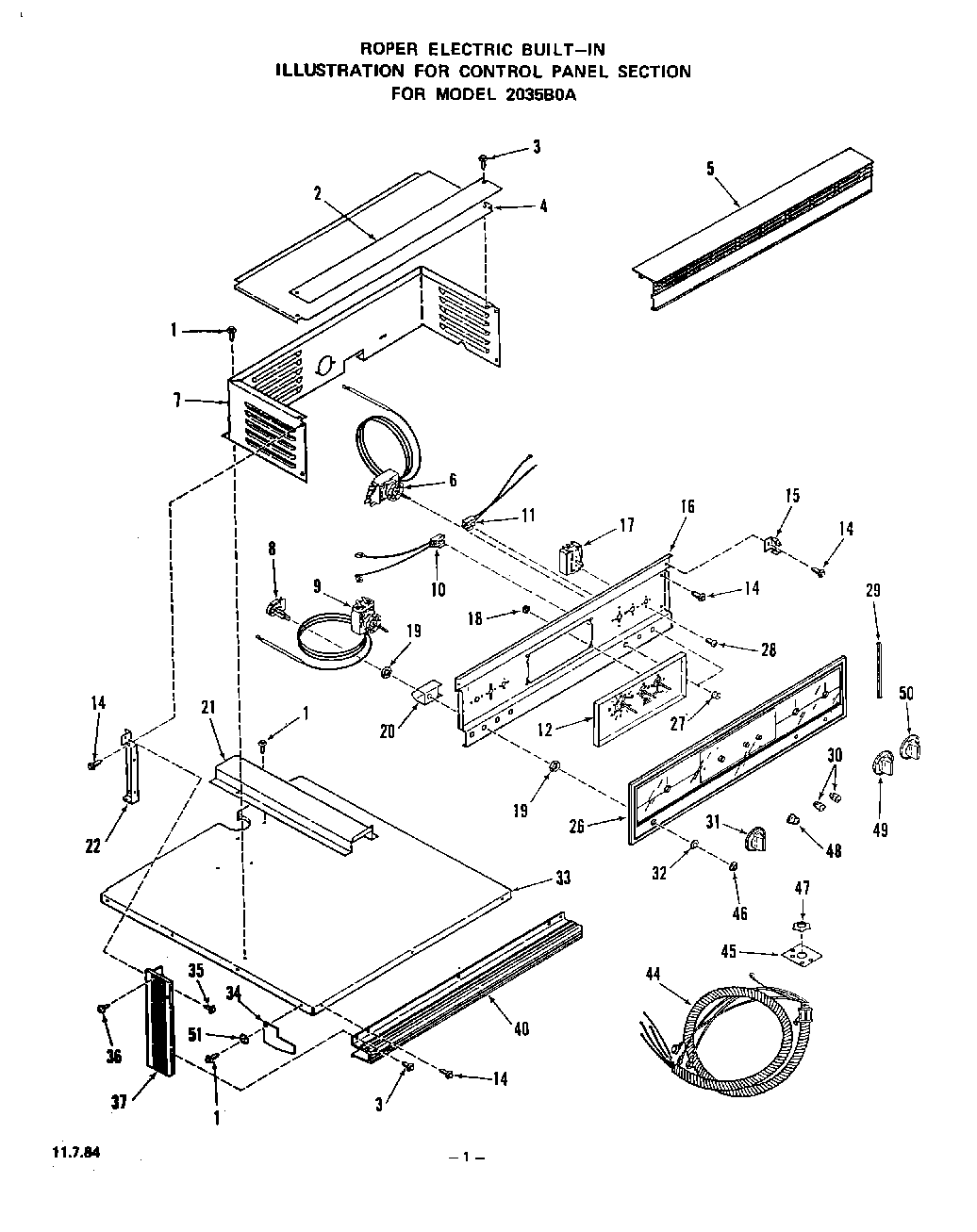

2035B0A 02 – CONTROL PANEL

Products

Position	Product
1	Screw 10-16×7/16“
2	Extension-Top Cover
3	Screw 10 – 32 x 7/16“
4	Top Cover-Control Housing
5	Trim
6	Thermostat-Upper Oven
7	Control Housing
8	Push Switch-Oven Light
9	Lower Oven Thermostat
10	Lower Oven
11	Indicator Light-Upper Oven
12	Clock Motor
12	Clock w/1 Hr. Timer
14	WP112432 Whirlpool Nut Assembly
15	Retainer-Glass (Rt. or Lt.)
16	Control Mounting Panel
17	Selector Switch
18	Keps Nut 10-24
19	Lock Nut
20	Shield-Switch
21	Wire Cover
22	Left
22	Right
26	Control Panel Glass
27	Lens-Indicator Light
28	WPL 78565
29	End Trim-Control Panel Glass (Rt. or Lt.)
31	Knob-Lower Oven Thermostat
32	Washer
33	Cabinet Top
34	Heat Shield (Lt. or Rt.)
35	Screw 6-32×1/4“
36	Screw 6-32 x 1/2“
37	Right
37	Left
40	Trim-Control Panel
44	Harness Conduit
45	Plate (For Key 45)
46	Knurled Nut
47	Nut (For Key 45)
48	Knob-Clock (Start & Stop Time)
49	Knob-Upper Oven Thermostat
50	Knob-Selector Switch
51	Washer
