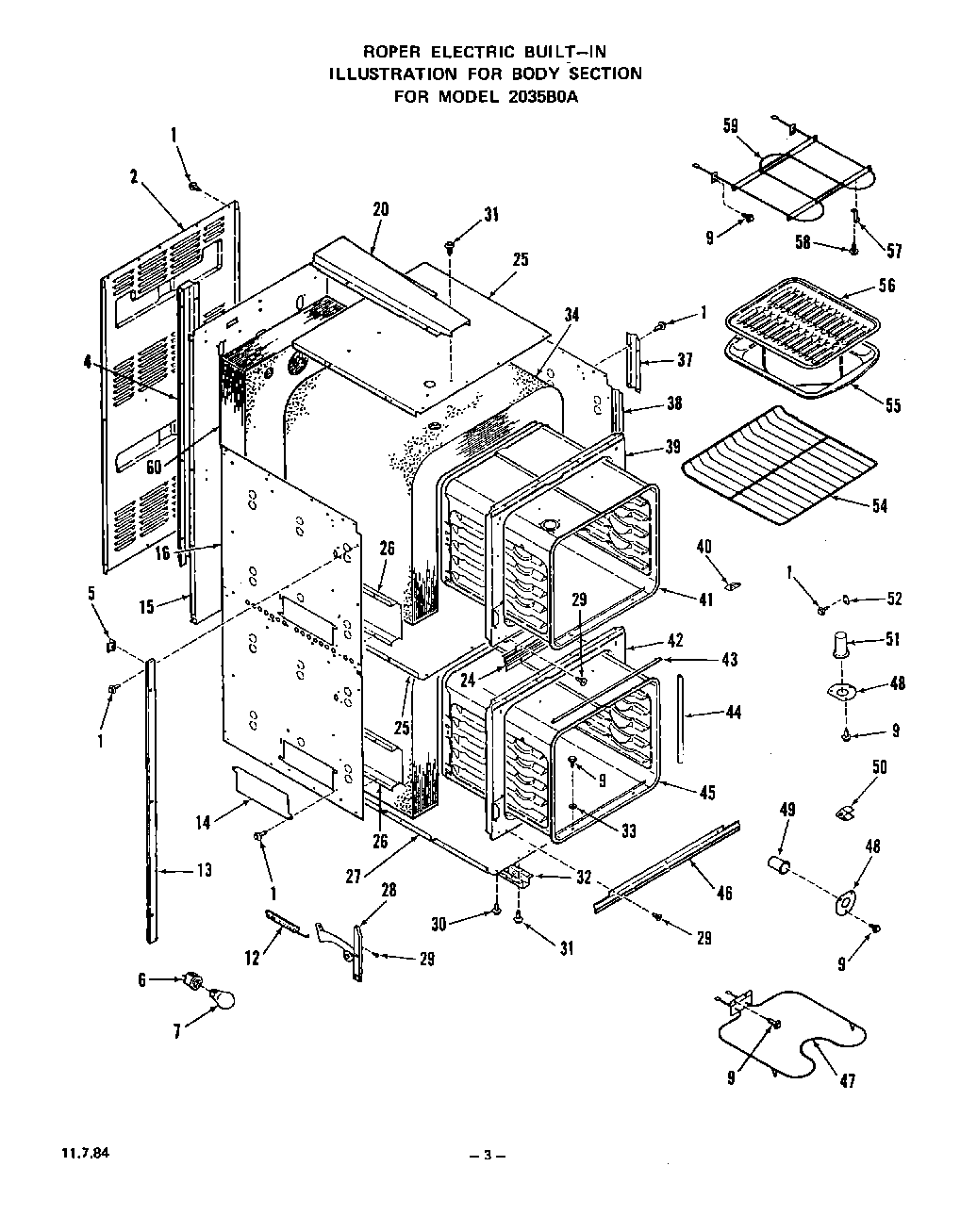

2035B0A 03 – BODY

Products

Position	Product
1	Screw 10-16×7/16“
2	Cabinet Back
4	Rear Oven Vent Box
5	Spacer (4 Req)
6	Holder-Oven Light Bulb
7	Oven Lamp Bulb
9	Screw 10 – 32 x 17/32“
12	Spring-Oven Door (4Req.)
13	Side Trim (Lt. or Rt.)
14	Cover Plate
15	Main Back
16	Cabinet Side-Lt. or Rt.
20	Vent Box
24	Center Front Trim
25	Insulation Retainer
26	Door Spring Insulation Retainer (Lt. or Rt.)
27	Cabinet Bottom
28	Left
28	Right
29	Screw 10-32 x 5/8“
30	Screw 10 – 32 x 1/4“
31	WP112432 Whirlpool Nut Assembly
32	Bottom Channel-Lt. or Rt.
33	Washer
34	Insulation-Oven Top & Sides (1 Piece) (Up.& Lo Oven
37	Raceway
38	WPL 325532
39	Front Frame-Up. Oven
40	Cover
41	Upper Oven Body
42	Front Frame-Lo. Oven
43	Top Seal-Oven Door (Lo. & Up. Oven)
44	Side Seal-Oven Door (Rt. or Lt.) (Lo. & Up. Oven)
45	Lower Oven Body
46	Lower Trim
47	Bake Element
48	Oven Vent Clamp
49	WPL 294679
50	WPL 291123
51	Vent Tube-Upper Oven
52	Cover Plate-Thermostat Bulb
54	Oven Rack (2 Up. Oven & 1 Lo. Oven)
55	Broiler Pan
56	WPL 326297
57	Broiler Element Support
58	Screw 10ABx3/8“
59	WPL 328115
60	WPL 328798
