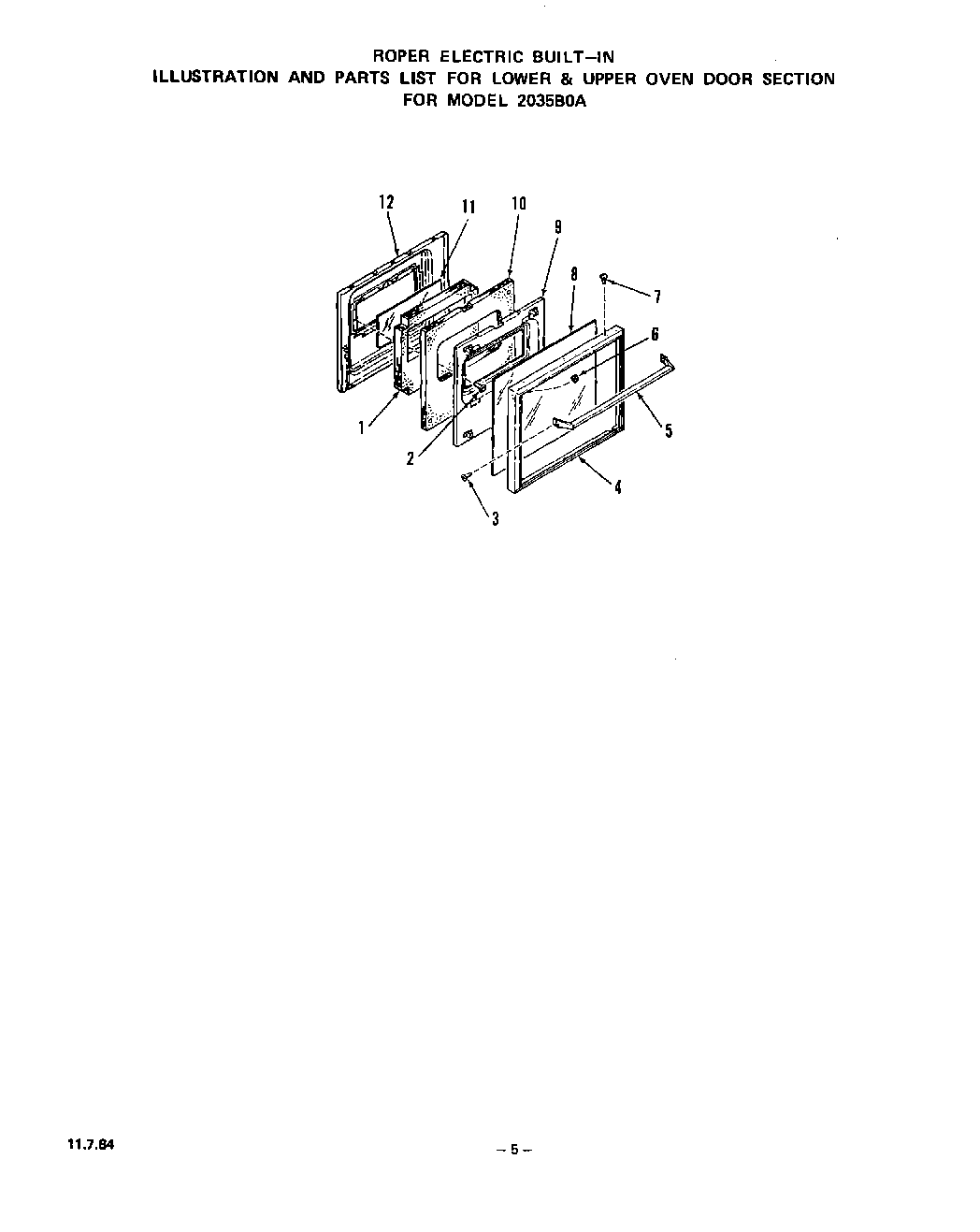

2035B0A 04 – LOWER AND UPPER OVEN DOOR

Products

Position	Product
1	Insulation
2	WP112432 Whirlpool Nut Assembly
3	Screw 8-32 x 1/2“
4	Frame-Oven Door
5	Handle-Oven Door
6	Keps Nut 8-32
7	Screw 6-20×3/8“
8	Oven Door Glass-Outer
9	Retainer-Oven Door Insulation
10	Insulation
11	Oven Door Glass-Center
12	Electric Use & Care Guide
12	Lining-Oven Door
12	Wire Harness
12	Installation Guide
12	Operating Guide
12	Repair Parts Manual
