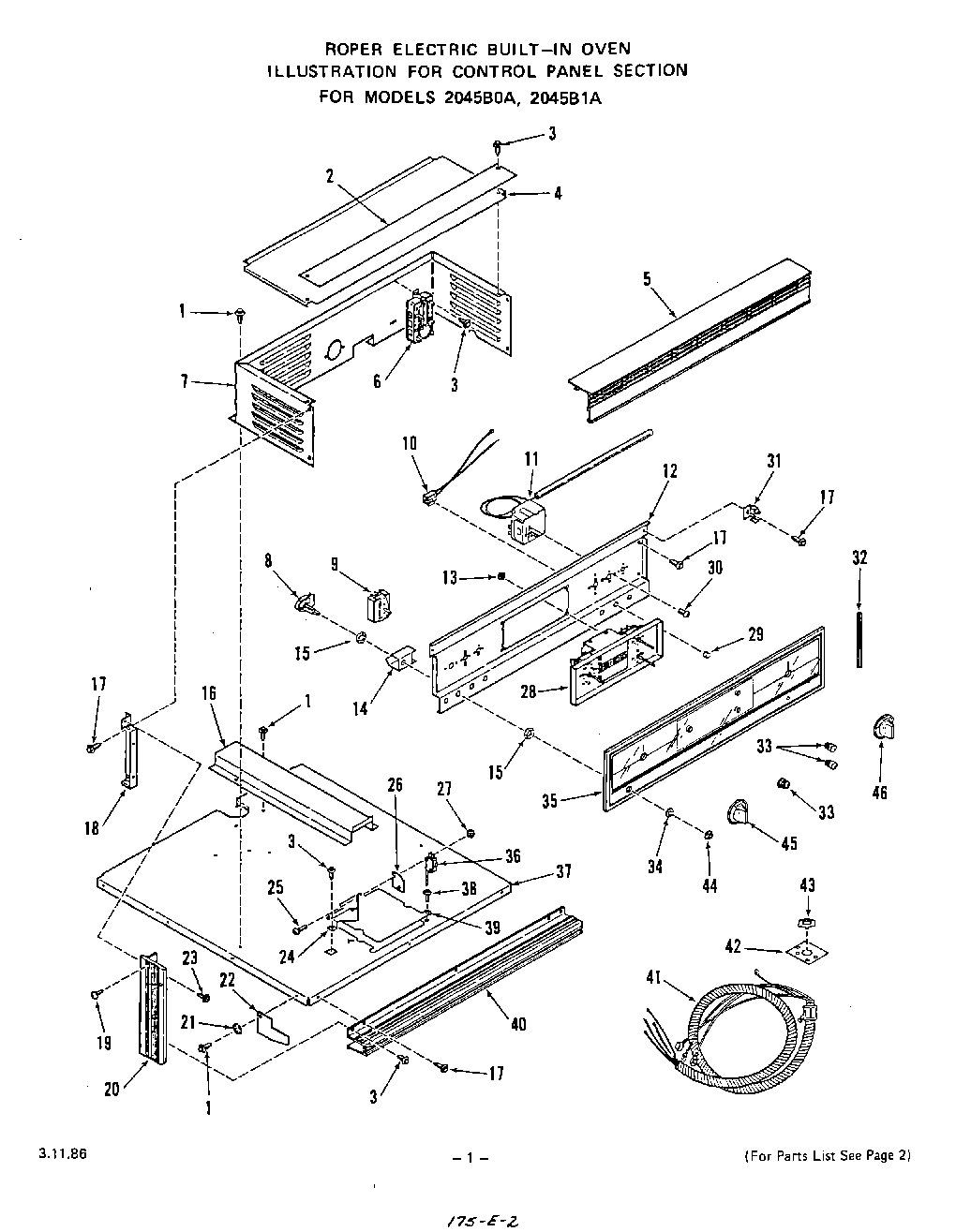

2045B0A 02 – CONTROL PANEL

Products

Position	Product
1	Screw 10-16×7/16“
2	Extension-Top Cover
3	Screw 10 – 32 x 7/16“
4	Top Cover-Control Housing
5	Trim
6	Oven Relay
7	Control Housing
8	Push Switch-Oven Light
9	Selector Switch
10	Indicator Light-Oven
11	Oven Thermostat
12	Control Mounting Panel
13	Keps Nut 10-24
14	Shield-Switch
15	Lock Nut
16	Wire Cover
17	WP112432 Whirlpool Nut Assembly
18	Right
18	Left
18	Support-Control Panel
19	Screw 6-32 x 1/2“
20	Right
20	Left
20	Side Trim-Control Panel
21	Washer
22	Heat Shield (Lt. or Rt.)
23	Screw 6-32×1/4“
24	Bracket-Micro Switch
25	Screw 4-40×3/4“
26	Insulator
27	Keps Nut 4-40
28	Clock w/1 Hr. Timer
29	Lens-Indicator Light (2 Req)
30	WPL 78565
31	Retainer-Glass (Rt. or Lt.)
32	End Trim-Control Panel Glass (Rt. or Lt.)
33	Knob-Clock
34	Washer
35	Control Panel Glass
36	Micro Switch – Lock
37	Cabinet Top
38	WPL 295850
39	Cover Plate-Lock
40	Trim-Control Panel
41	Harness Conduit Asem.
42	Plate (For Key 45)
43	Nut (For Key 45)
44	Knurled Nut
45	Knob-Selector Switch
46	Knob-Oven Thermostat
