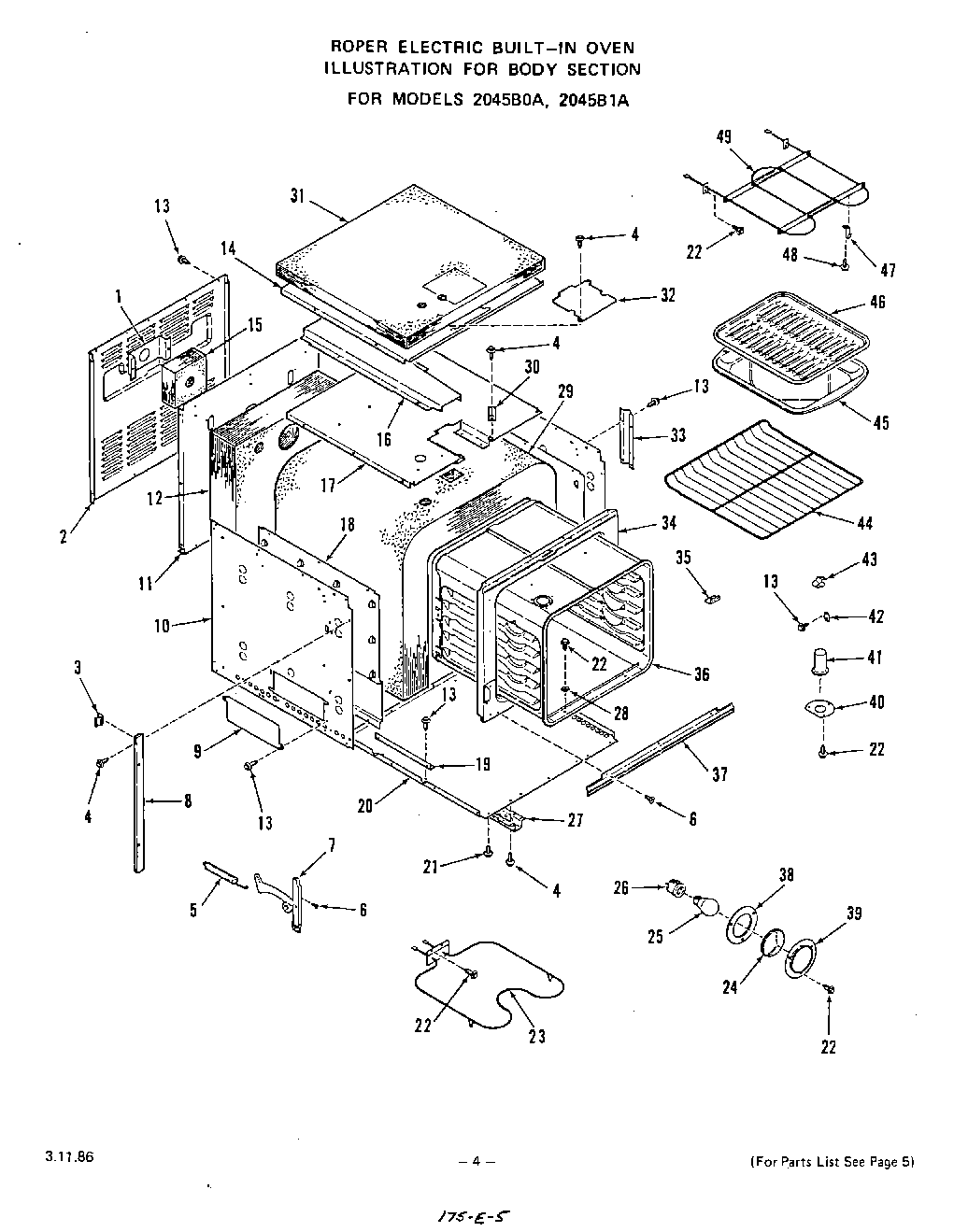

| 1 | Insulation Retainer-Oven Light |
| 2 | Cabinet Back |
| 3 | Spacer (4 Req) |
| 4 | WP112432 Whirlpool Nut Assembly |
| 5 | Spring-Oven Door (Lt. or Rt.) |
| 6 | Screw 10-32 x 5/8`` |
| 7 | Right |
| 7 | Left |
| 7 | Hinge |
| 8 | Side Trim-Lt. or Rt. |
| 9 | Cover Plate |
| 10 | Cabinet Side-Lt or Rt. |
| 11 | Main Back |
| 12 | Insulation-Oven Back & Bottom (1 Piece) |
| 13 | Screw 10-16x7/16`` |
| 14 | Insulation Retainer-Cabinet Top |
| 15 | WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V |
| 16 | Vent Box |
| 17 | Insulation Retainer-Oven Top |
| 18 | Insulation Retainer-Oven Side (Lt. or Rt.) |
| 19 | Bracket-Insulation Retainer (Lt. or Rt.) |
| 20 | Cabinet Bottom |
| 21 | Screw 10 - 32 x 1/4`` |
| 22 | Screw 10 - 32 x 17/32`` |
| 23 | Bake Element |
| 24 | Lens-Oven Light |
| 25 | Oven Lamp Bulb |
| 26 | Holder-Oven Light Bulb |
| 27 | Bottom Channel-Lt. or Rt. |
| 28 | Washer |
| 29 | Insulation-Oven Top & Sides (1 Piece) |
| 30 | Bracket |
| 31 | Insulation-Cabinet Top |
| 32 | Cover Plat |
| 33 | Raceway |
| 34 | 2045BOA Model |
| 34 | Front Frame |
| 34 | 2045B1A Model |
| 35 | Cover |
| 36 | 2045B1A Model |
| 36 | Oven Body |
| 36 | 2045BOA Model |
| 37 | Lower Trim |
| 38 | Gasket-Lens |
| 39 | Retainer-Oven Light Lens |
| 40 | Oven Vent Clamp |
| 42 | Cover Plate-Thermostat Bulb |
| 43 | Thermostat Bulb-Retainer (2 Req) |
| 44 | WP330190 Whirlpool Knob |
| 45 | Broiler Pan |
| 45 | WPL 331592 |
| 45 | 2055B0A Model |
| 46 | WPL 326297 |
| 47 | Broiler Element Support |
| 48 | Leg Leveler (4 Required) |
| 49 | WPL 328115 |
