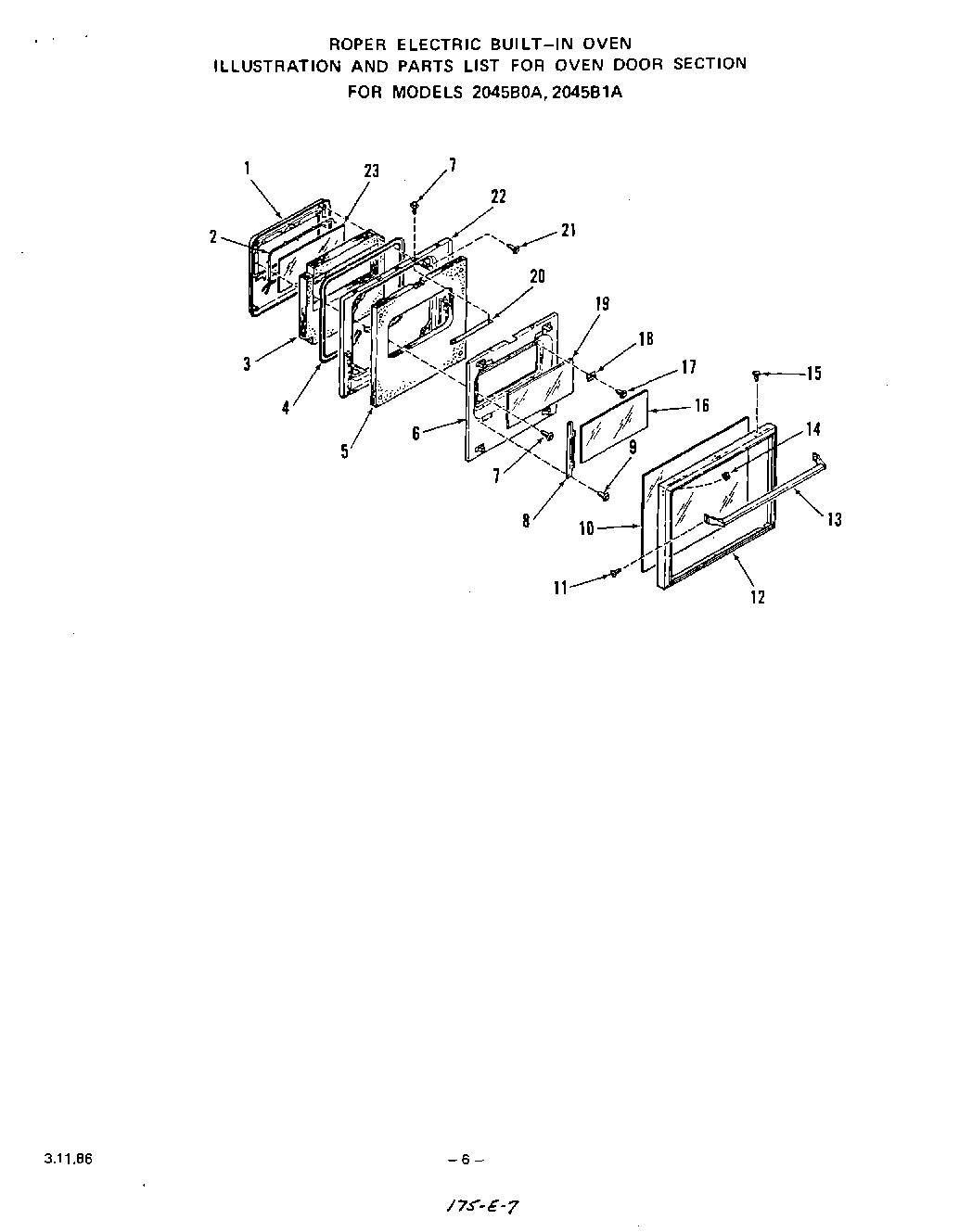

2045B0A 05 – OVEN DOOR , LIT/OPTIONAL

Products

Position	Product
	xWire Harness
1	2045BOA Model
1	Plug-Oven Door Lining
1	2045B1A Model
2	Seal-Inner Glass
3	Insulation-Oven Door Plug
4	Gasket-Oven Door
5	Insulation-Oven Door Lining
6	Retainer-Oven Door Insulation
7	WP112432 Whirlpool Nut Assembly
8	Retainer-Oven Door Glass (Lt. or Rt.)
9	Screw 10-16×7/16“
10	Oven Door Glass-Outer
11	Screw 8-32 x 1/2“
12	Frame-Oven Door
13	Handle-Oven Door
14	Keps Nut 8-32
15	Screw 6-20×3/8“
16	Oven Door Glass-Intermediate
17	Screw 10-32×17/32“
18	Retainer-Door Glass
19	Oven Door Glass-Center
20	WP312967 Whirlpool Clamp
21	Screw 10 – 32 x 7/16“
22	Lining-Oven Door
22	2045B1A Model
22	2045BOA Model
23	Main
23	Oven Door Glass-Inner
23	Auxiliary
