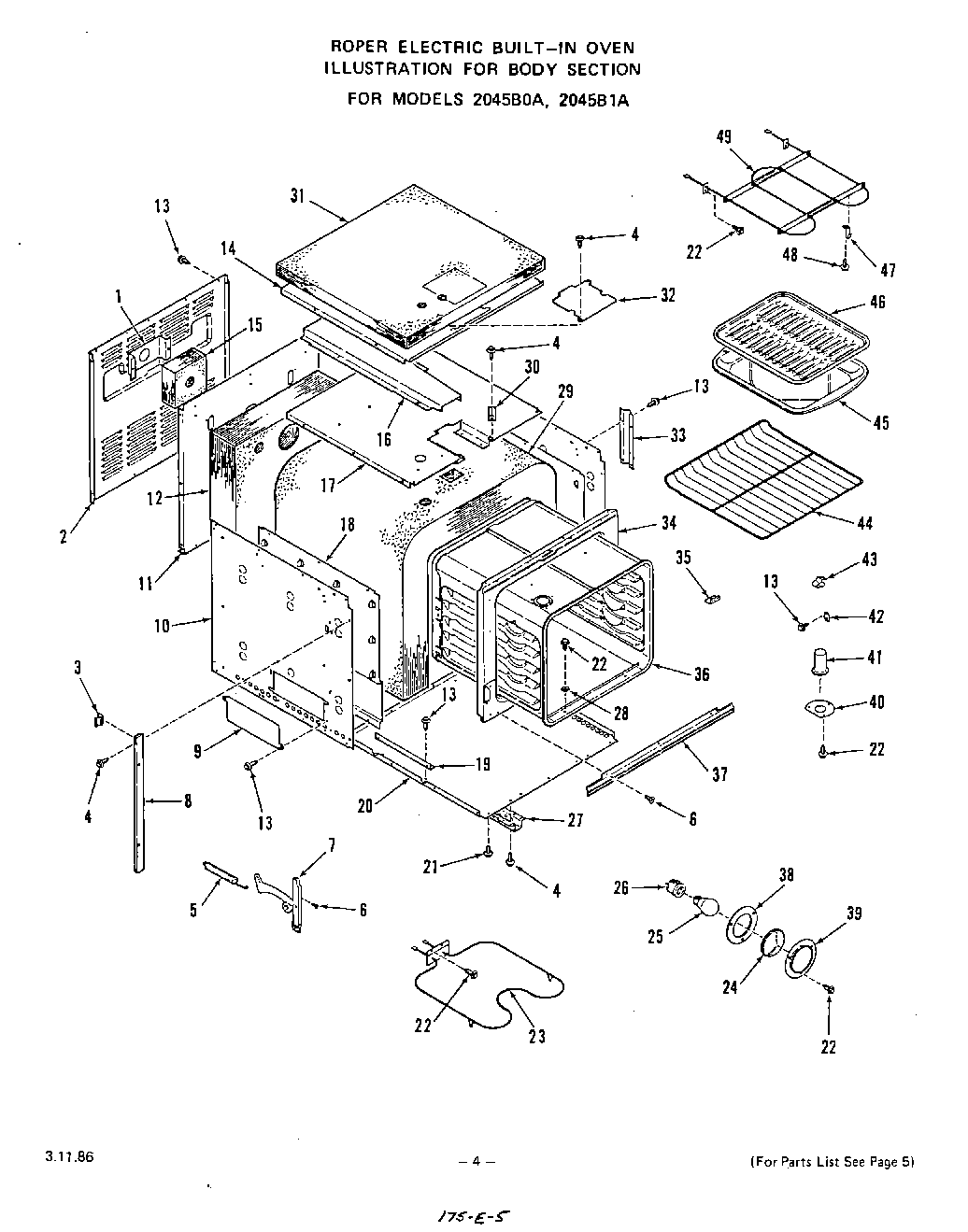

2045B1A 04 – BODY

Products

Position	Product
1	Insulation Retainer-Oven Light
2	Cabinet Back
3	Spacer (4 Req)
4	WP112432 Whirlpool Nut Assembly
5	Spring-Oven Door (Lt. or Rt.)
6	Screw 10-32 x 5/8“
7	Right
7	Left
7	Hinge
8	Side Trim-Lt. or Rt.
9	Cover Plate
10	Cabinet Side-Lt or Rt.
11	Main Back
12	Insulation-Oven Back & Bottom (1 Piece)
13	Screw 10-16×7/16“
14	Insulation Retainer-Cabinet Top
15	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
16	Vent Box
17	Insulation Retainer-Oven Top
18	Insulation Retainer-Oven Side (Lt. or Rt.)
19	Bracket-Insulation Retainer (Lt. or Rt.)
20	Cabinet Bottom
21	Screw 10 – 32 x 1/4“
22	Screw 10 – 32 x 17/32“
23	Bake Element
24	Lens-Oven Light
25	Oven Lamp Bulb
26	Holder-Oven Light Bulb
27	Bottom Channel-Lt. or Rt.
28	Washer
29	Insulation-Oven Top & Sides (1 Piece)
30	Bracket
31	Insulation-Cabinet Top
32	Cover Plat
33	Raceway
34	Front Frame
34	2045BOA Model
34	2045B1A Model
35	Cover
36	Oven Body
36	2045B1A Model
36	2045BOA Model
37	Lower Trim
38	Gasket-Lens
39	Retainer-Oven Light Lens
40	Oven Vent Clamp
42	Cover Plate-Thermostat Bulb
43	Thermostat Bulb-Retainer (2 Req)
44	WP330190 Whirlpool Knob
45	Broiler Pan
45	WPL 331592
45	2055B0A Model
46	WPL 326297
47	Broiler Element Support
48	Leg Leveler (4 Required)
49	WPL 328115
