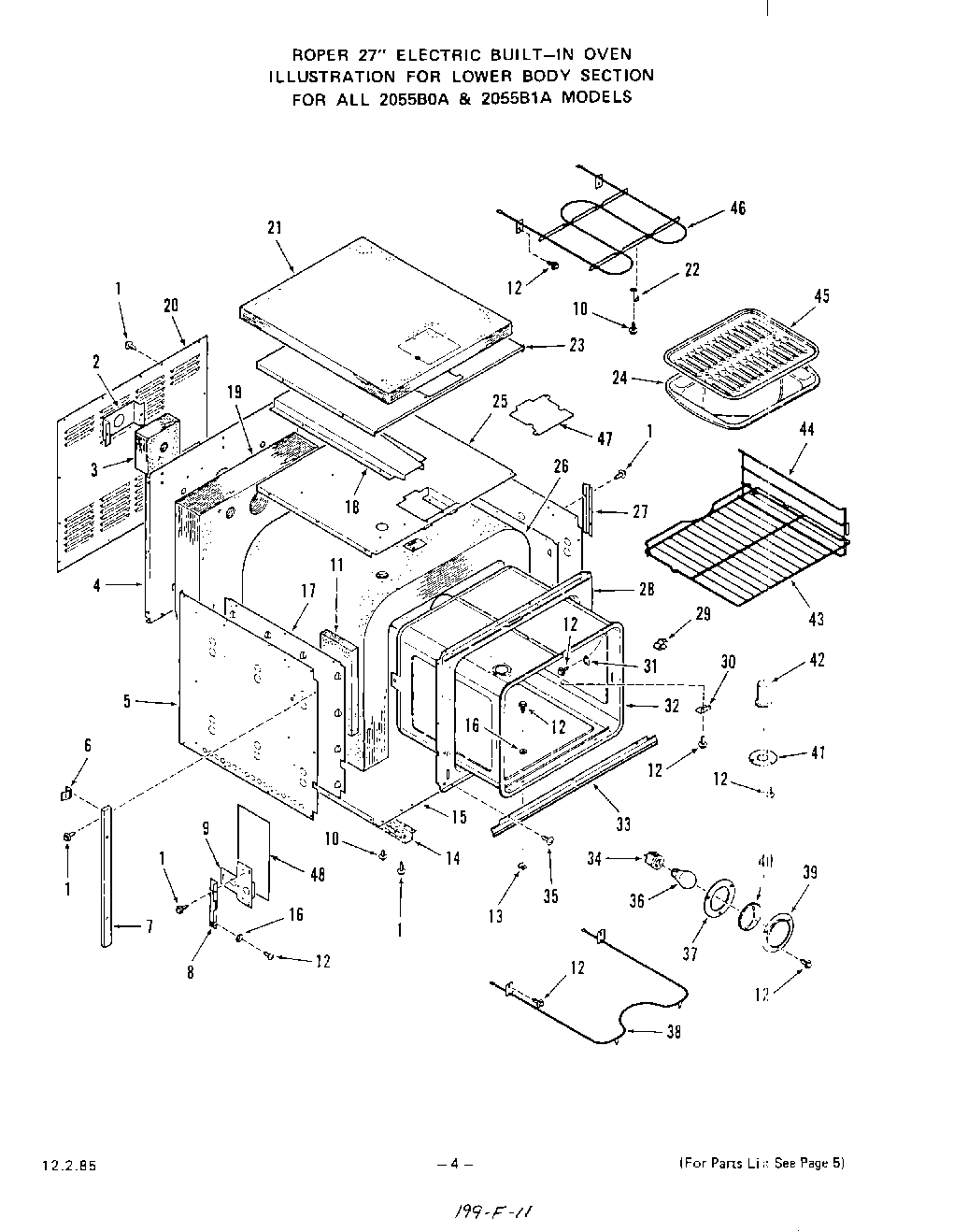

2055B0A 04 – LOWER BODY

Products

Position	Product
1	WP112432 Whirlpool Nut Assembly
2	Insulation Retainer-Oven Light
4	Main Back
5	Cabinet Side
5	Left
5	Right
6	Spacer (4 Req)
7	Side Trim-Lt. or Rt.
8	Hinge Angle-Lt. or Rt.
9	Hinge Box Asm. Lt or Rt
10	Screw 10 – 32 x 1/4“
11	Insulation (Lt. or Rt.)
12	Screw 10 – 32 x 17/32“
13	Speed Nut 10-32
14	Bottom Channel-Lt. or Rt.
15	Cabinet Bottom
16	Washer
17	Insulation Retainer-Oven Side (lt. or Rt.)
18	Top Oven Vent Box
19	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
20	Cabinet Back
22	Broiler Element Support
23	Insulation Retainer-Cabinet Top
24	Broiler Pan
24	WPL 331592
24	2055B0A Model
25	Insulation Retainer-Oven Top
26	Insulation Oven Top & Sides (1 Piece)
27	Raceway
28	2055B1A Model
28	2055B0A Model
28	Front Frame
29	Thermostat Bulb-Retainer (2 Req)
30	Cover
31	Cover Plate-Thermostat Bulb
32	2055B0A Model
32	2055B1A Model
32	Oven Body
33	Lower Trim
34	Holder-Oven Light Bulb
35	Screw 10-32 x 5/8“
36	Oven Lamp Bulb
37	Gasket-Lens
38	Bake Element
39	Retainer-Oven Light Lens
40	Lens-Oven Light
41	Oven Vent Clamp
43	Oven Rack (2 Req)
44	Oven Rack Guide-Rt. or Lt.
45	WPL 326297
46	Broiler Element
47	Cover Plat
48	WPL 114300
