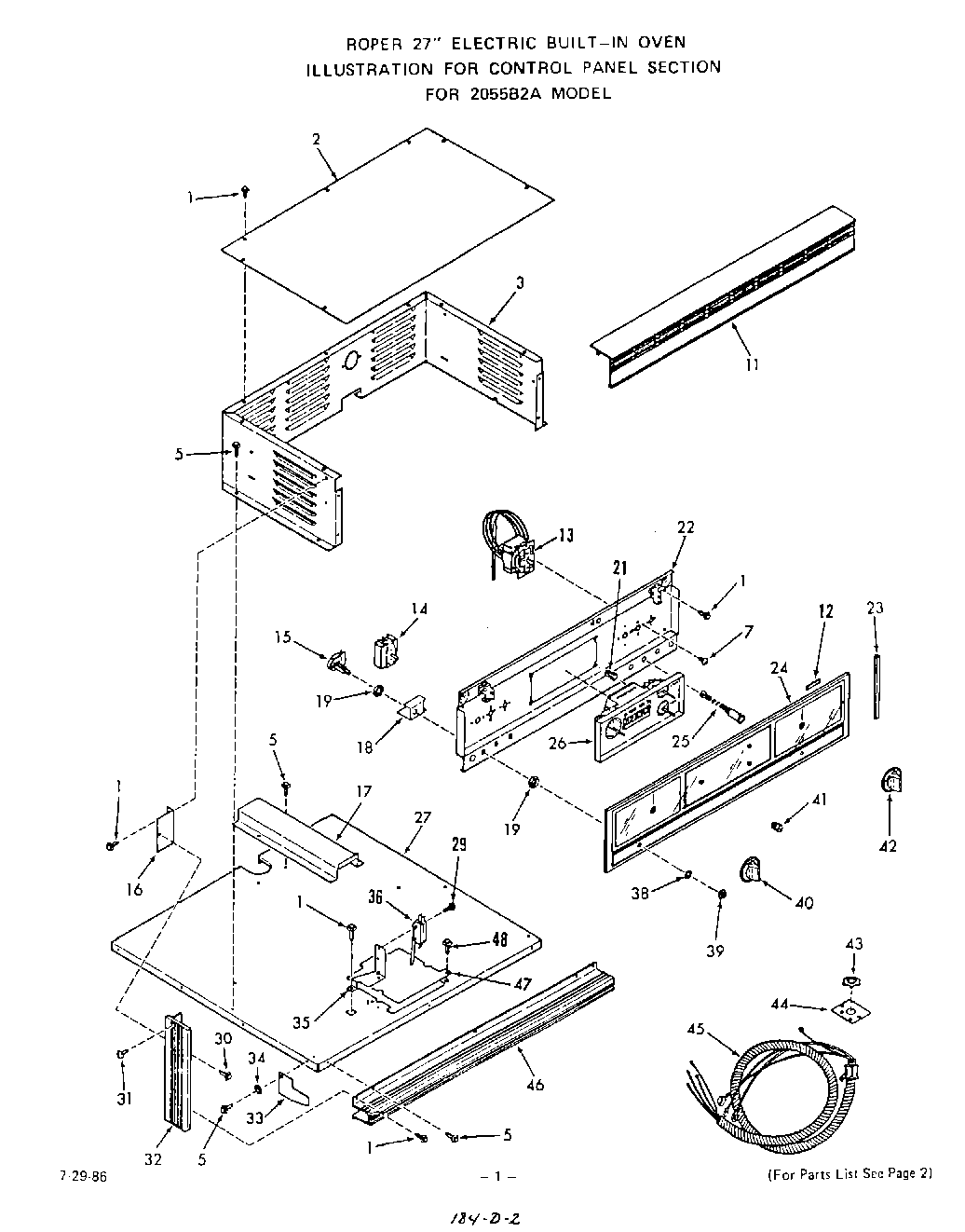

2055B2A 02 – CONTROL PANELadmin2025-04-26T09:00:33+00:002055B2A 02 – CONTROL PANEL ProductsPositionProduct1Screw 10 - 32 x 7/16``2Top-Control Housing3Control Housing5WP112432 Whirlpool Nut Assembly7WPL 7856511Top Trim12Cushion-Door Glass13Oven Thermostat14Selector Switch15Push Switch-Oven Light16Control Panel Support (Lt. or Rt.)17Wire Cover18Shield-Switch19Lock Nut21Tubular Clip (4 Req.)22Mounting Panel-Controls23End Trim-Control Panel Glass (Rt or Lt)24Control Panel Glass25Indicator Light26Clock w/1 Hr. Timer27Cabinet Top29Screw 6-32x7/8``30Screw 6-32x1/4``31Screw 6-32 x 1/2``32Left32Right32Side Trim-Control Panel33Heat Shield (Lt. or Rt.)34Washer35Bracket-Micro Switch36Micro Switch-Lock38Washer39Knurled Nut40Knob-Selector Switch41Knob-Clock (Start & Stop Time)42Knob-Oven Thermostat43Nut (For Key 45)44Plate (For Key 45)45Harness Conduit Asm.46Control Panel Trim47Cover Plate Lock48WPL 295850
