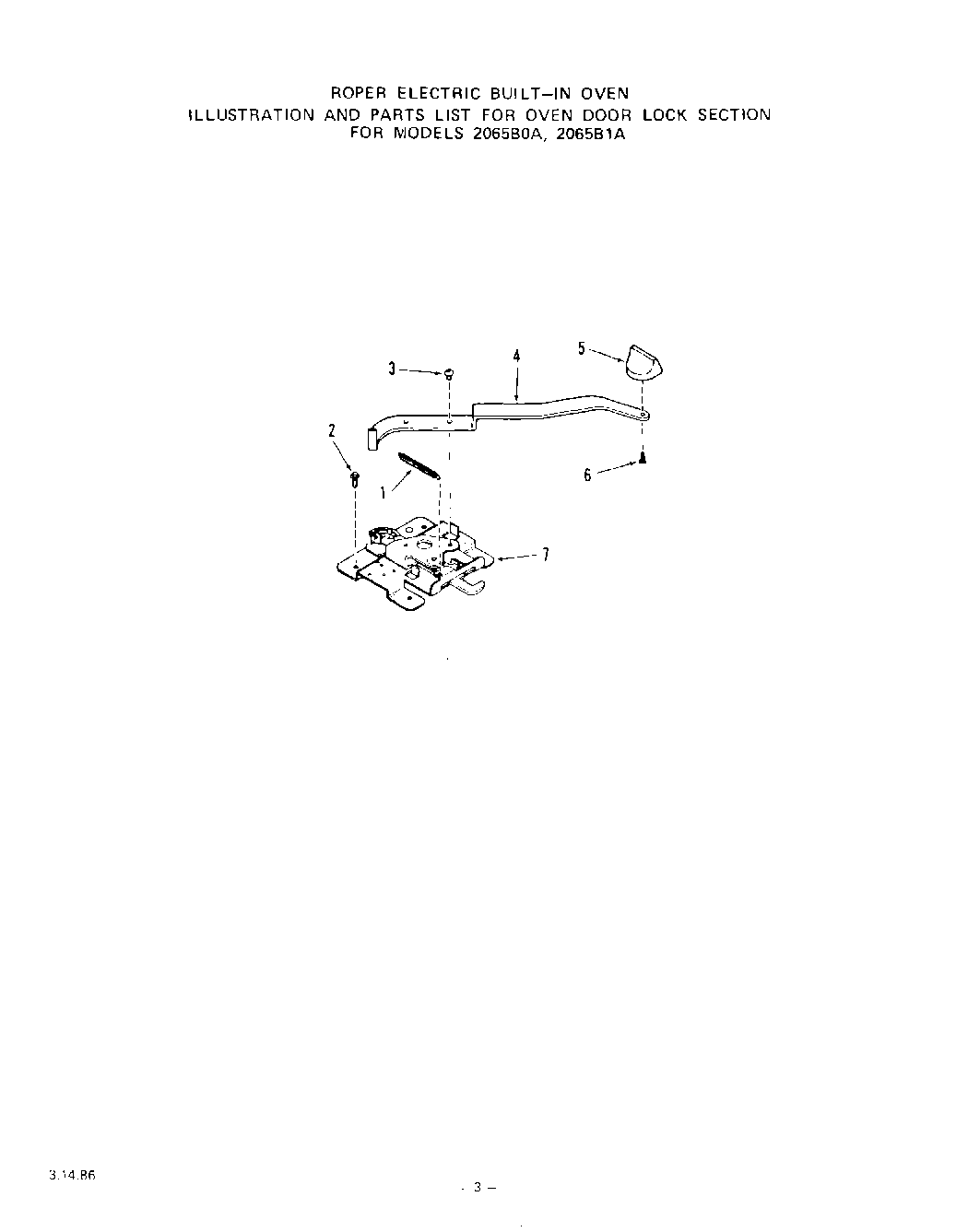

2065B0A 03 – OVEN DOOR LOCK
Products
| Position | Product |
|---|---|
| 1 | Spring |
| 2 | WP112432 Whirlpool Nut Assembly |
| 3 | Screw 10-24x1/4`` |
| 4 | Lock Handle |
| 5 | Knob-Lock Handle |
| 6 | Screw 6-32x15/32`` |
| 7 | Oven Door Lock Assm. |
2065B0A 03 – OVEN DOOR LOCK
| Position | Product |
|---|---|
| 1 | Spring |
| 2 | WP112432 Whirlpool Nut Assembly |
| 3 | Screw 10-24x1/4`` |
| 4 | Lock Handle |
| 5 | Knob-Lock Handle |
| 6 | Screw 6-32x15/32`` |
| 7 | Oven Door Lock Assm. |
