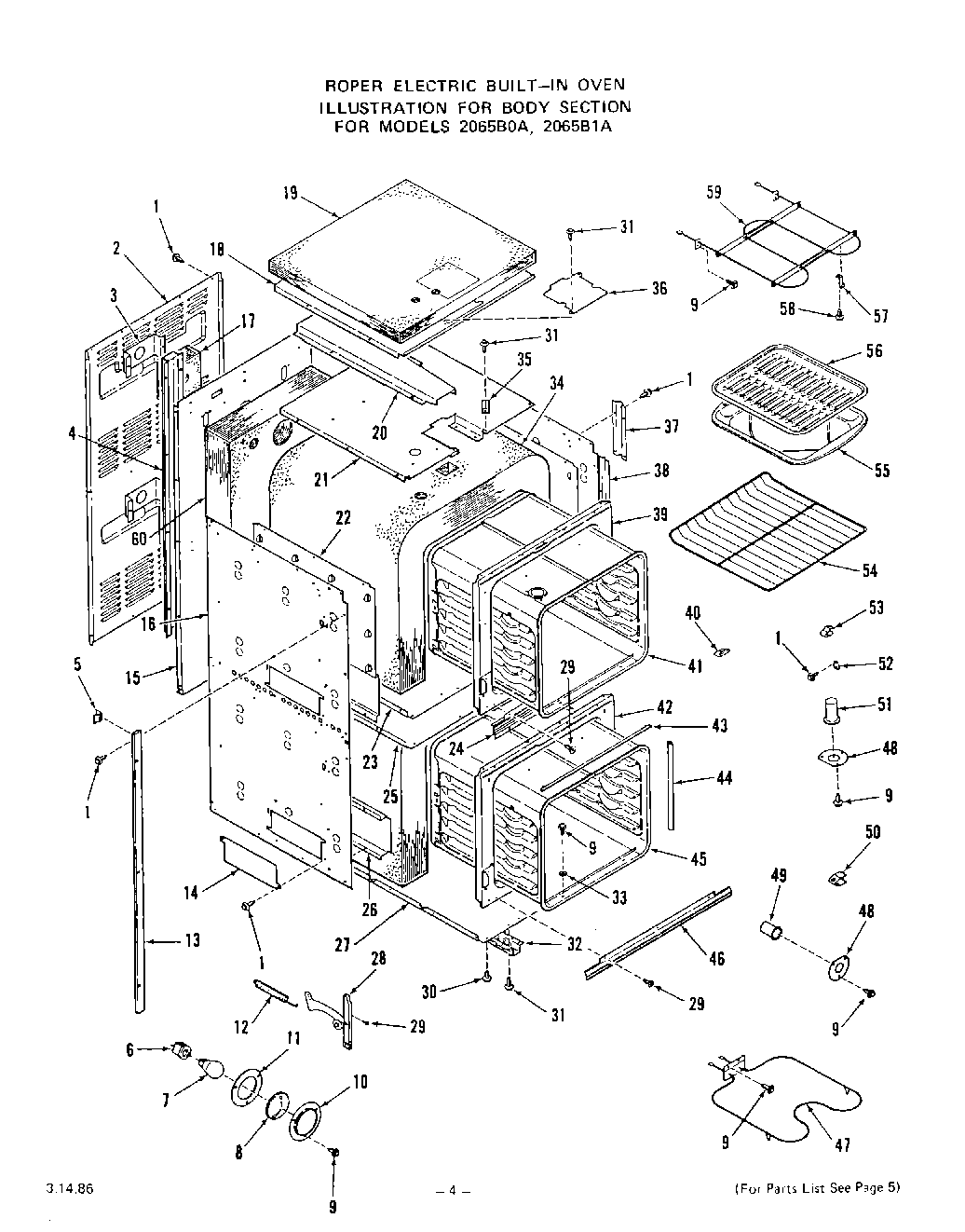

2065B0A 04 – BODY

Products

Position	Product
1	Screw 10-16×7/16“
2	Cabinet Back
3	Insulation Retainer-Oven Light
4	Rear Oven Vent Box
5	Spacer (4 Req)
6	Holder-Oven Light Bulb
7	Oven Lamp Bulb
8	Lens-Oven Light
9	Screw 10 – 32 x 17/32“
10	Retainer-Oven Light Lens
11	Gasket-Lens
12	Spring-Oven Door (Lt. or Rt.)
12	Spring-Oven Door (4Req.)
12	Spring-Oven Door (Lt. or Rt.)
13	Side Trim (Lt. or Rt.)
14	Cover Plate
15	Main Back
16	Cabinet Side-Lt. or Rt.
17	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
18	Insulation Retainer-Cabinet Top
19	Insulation-Cabinet Top
20	Vent Box
21	Insulation Retainer-Oven Top
22	Insulation Retainer-Oven Side (Lt. or Rt.)
23	Bottom Insulation Retainer (Up. Oven)
24	Center Front Trim
25	Insulation Retainer
26	Door Spring Insulation Retainer (Lt. or Rt.)
27	Cabinet Bottom
28	Hinge
28	Left
28	Right
29	Screw 10-32 x 5/8“
30	Screw 10 – 32 x 1/4“
31	WP112432 Whirlpool Nut Assembly
32	Bottom Channel-Lt. or Rt.
33	Washer
34	Insulation-Oven Top & Sides (1 Piece)
35	Bracket
36	Cover Plat
37	Raceway
38	WPL 325532
39	2045B1A Model
39	2045BOA Model
39	F
40	Cover
41	WPL ARI9123A13
41	2045B1A Model
41	2045BOA Model
42	WPL 331663
42	WPL 327960
42	WPL ARI9124A98
43	WPL 328809
44	WPL 329204
45	WPL ARI9125A50
45	WPL 331647
45	WPL 327417
46	Lower Trim
47	Bake Element
48	Oven Vent Clamp
49	WPL 294679
50	WPL 291123
52	Cover Plate-Thermostat Bulb
53	Thermostat Bulb-Retainer (2 Req)
54	WP330190 Whirlpool Knob
55	WPL 331592
55	WPL ARI9126A15
55	2055B0A Model
56	WPL 326297
57	Broiler Element Support
58	Screw 10ABx3/8“
59	WPL 328115
60	Insulation-Oven Back & Bottom (1 Piece)
