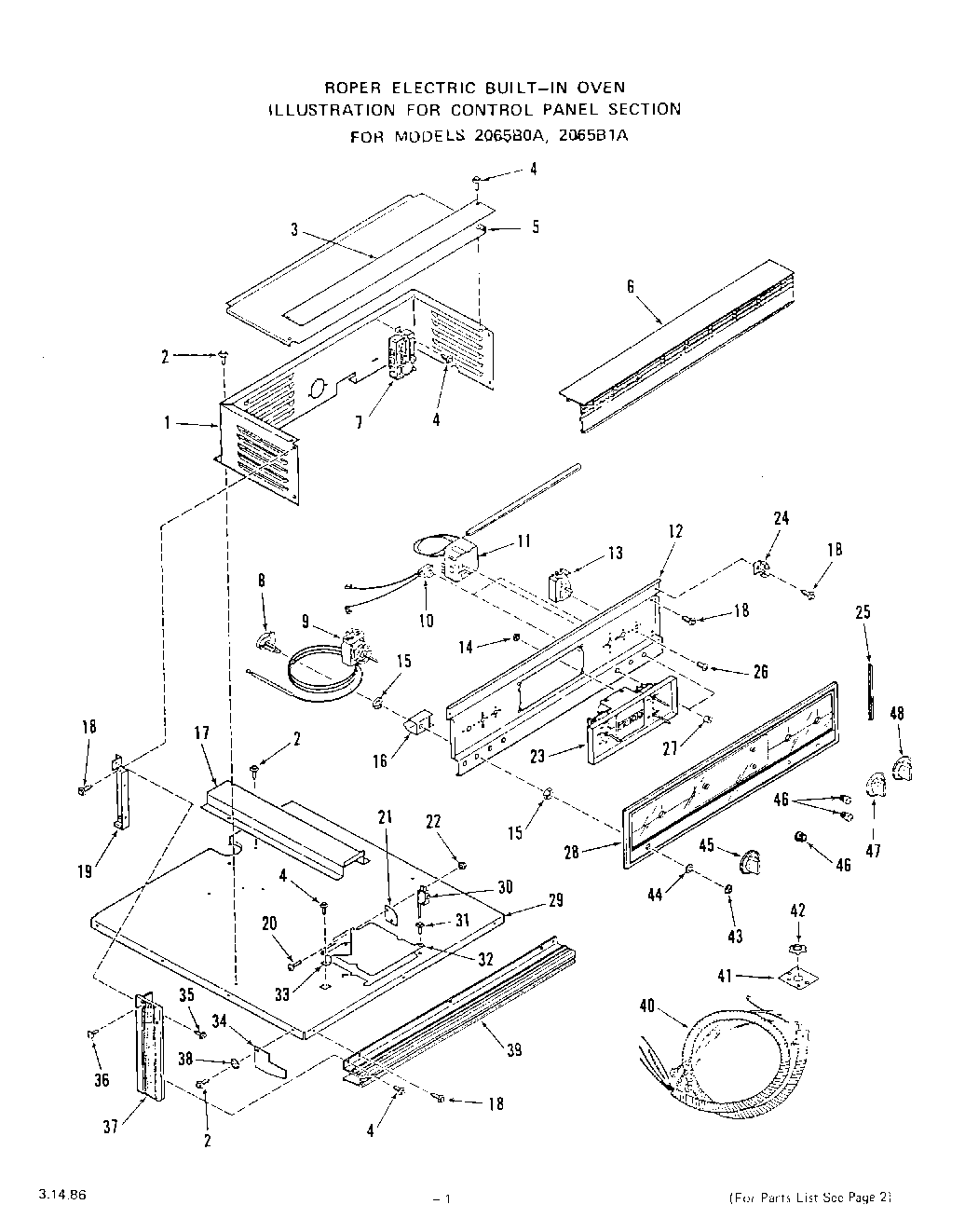

2065B1A 02 – CONTROL PANEL

Products

Position	Product
1	Control Housing
2	Screw 10-16×7/16“
3	Extension-Top Cover
4	Screw 10 – 32 x 7/16“
5	Top Cover-Control Housing
6	Trim
7	Oven Relay
8	Push Switch-Oven Light
9	Lower Oven Thermostat
10	Lower Oven
10	Indicator Light
10	Upper Oven
11	Oven Thermostat
12	Control Mounting Panel
13	Selector Switch
14	Keps Nut 10-24
15	Lock Nut
16	Shield-Switch
17	Wire Cover
18	WP112432 Whirlpool Nut Assembly
19	Right
19	Left
19	Support-Control Panel
20	Screw 4-40×3/4“
21	Insulator
22	Keps Nut 4-40
23	Clock w/1 Hr. Timer
24	Retainer-Glass (Rt. or Lt.)
25	End Trim-Control Panel Glass (Rt. or Lt.)
26	WPL 78565
27	Lens-Indicator Light (2 Req)
28	Control Panel Glass
29	Cabinet Top
30	Micro Switch – Lock
31	WPL 295850
32	Cover Plate-Lock
33	Bracket-Micro Switch
34	Heat Shield (Lt. or Rt.)
35	Screw 6-32×1/4“
36	Screw 6-32 x 1/2“
37	Left
37	Right
37	Side Trim-Control Panel
38	Washer
39	Lower Trim
40	Harness Conduit Asem.
41	Plate (For Key 45)
42	Nut (For Key 45)
43	Knurled Nut
44	Washer
45	Knob-Lower Oven Thermostat
46	Knob-Clock
47	Knob-Oven Thermostat
48	Knob-Selector Switch
