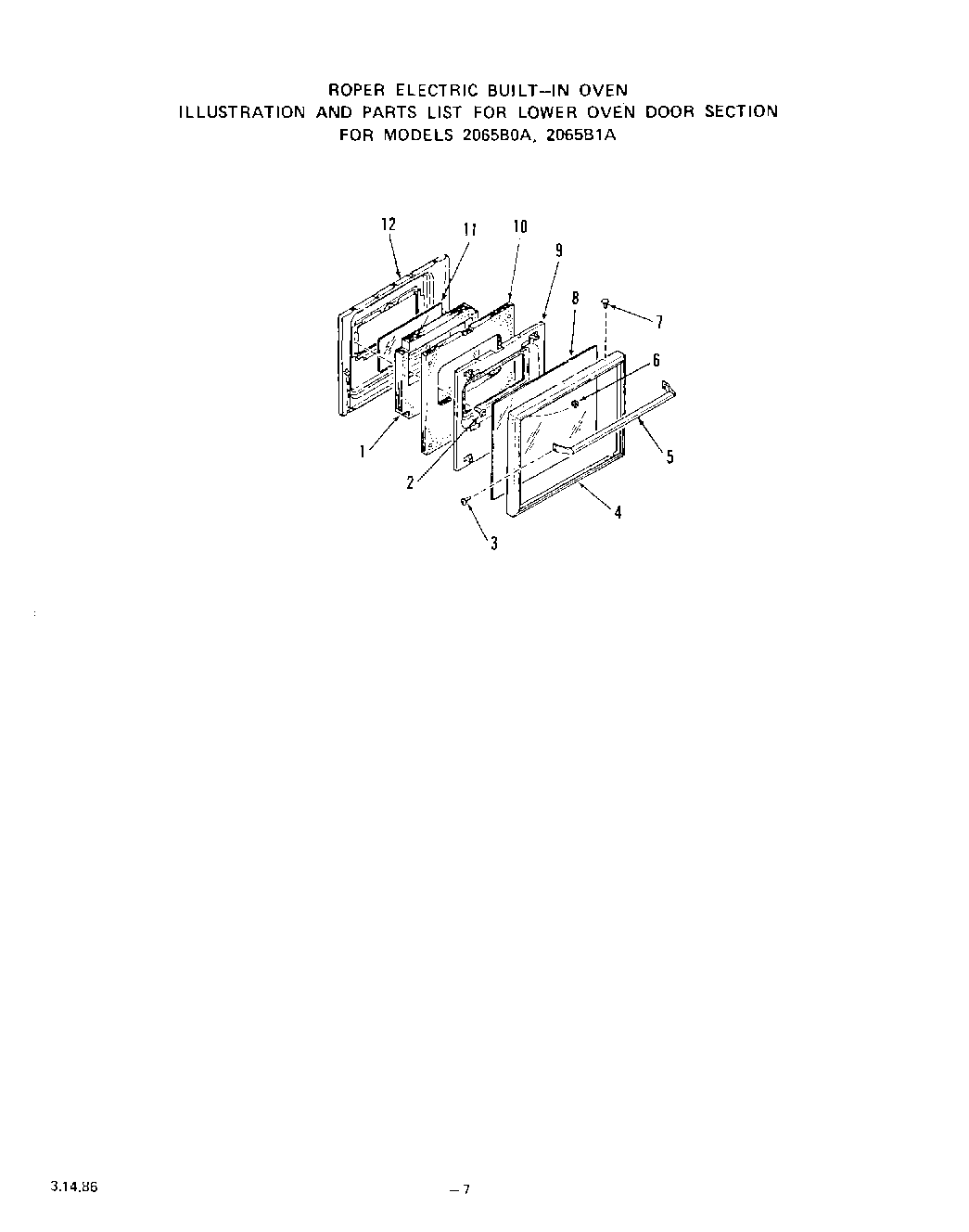

2065B1A 06 – LOWER OVEN DOOR, LIT/OPTIONAL

Products

Position	Product
1	Insulation-Oven Door Plug
2	WP112432 Whirlpool Nut Assembly
3	Screw 8-32 x 1/2“
4	Frame-Oven Door
5	Handle-Oven Door
6	Keps Nut 8-32
7	Screw 6-20×3/8“
8	Oven Door Glass-Outer
9	Retainer-Oven Door Insulation
10	Insulation-Oven Door Lining
11	Oven Door Glass-Center
12	Auxiliary
12	xWire Harness
12	Lining-Oven Door
12	xRepair Parts List
12	2065B1A Models
12	Main
12	xOperating Guide
12	xInstallation Guide
12	2065B0A Models
12	xElectric Use & Care Guide
