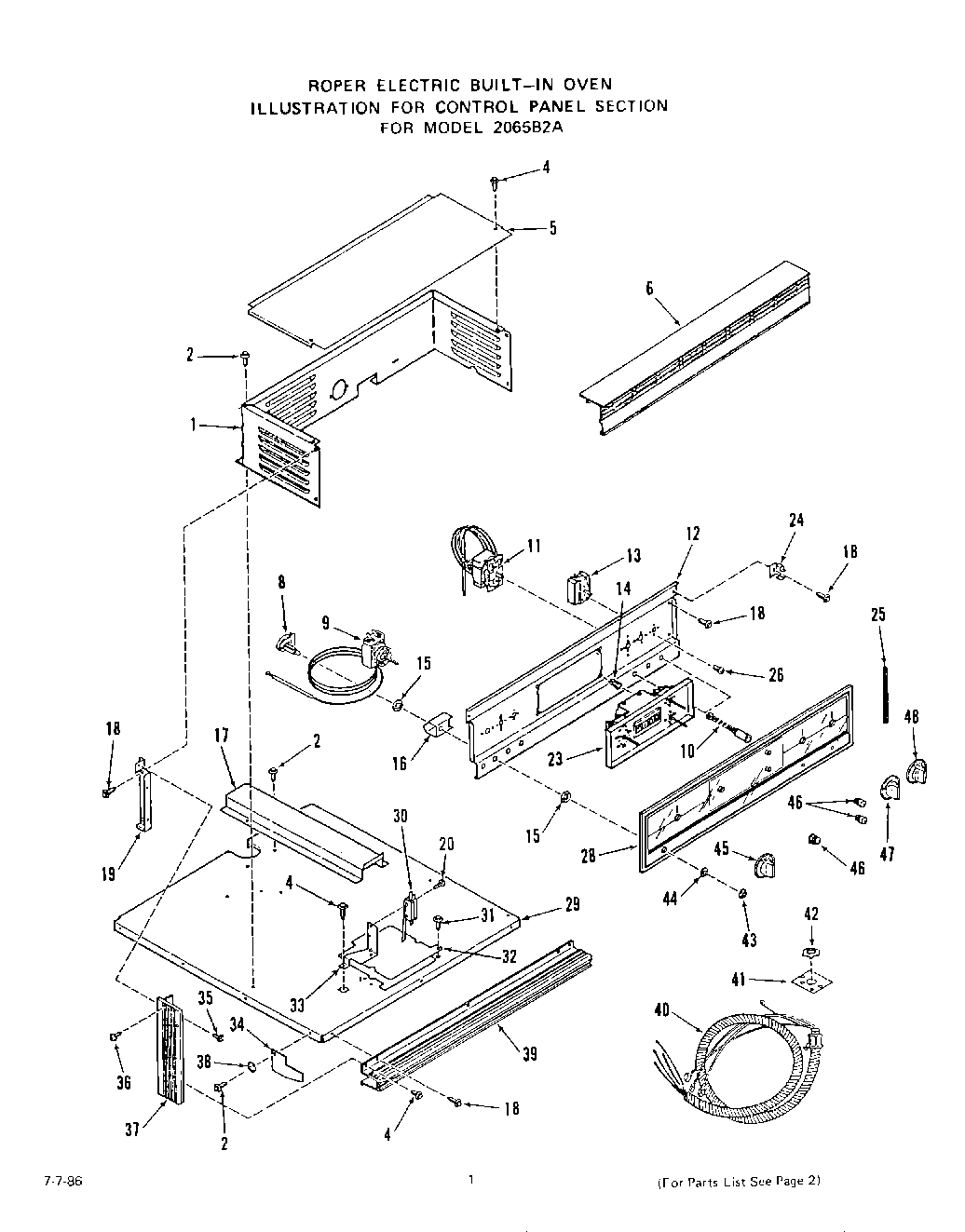

2065B2A 02 – CONTROL PANEL

Products

Position	Product
1	Control Housing
2	Screw 10-16×7/16“
4	Screw 10 – 32 x 7/16“
5	Top Cover-Control Housing
6	Trim
8	Push Switch-Oven Light
9	Lower Oven Thermostat
10	Indicator Light
10	Indicator Light
10	Lower Oven
11	Oven Thermostat
12	Control Mounting Panel
13	Selector Switch
14	Tubular Clip (4 Req.)
15	Lock Nut
16	Shield-Switch
17	Wire Cover
18	WP112432 Whirlpool Nut Assembly
19	Support-Control Panel
19	Left
19	Right
20	Screw 6-32×7/8“
23	Clock w/1 Hr. Timer
24	Retainer-Glass (Rt. or Lt.)
25	End Trim-Control Panel Glass (Rt. or Lt.)
26	WPL 78565
28	Control Panel Glass
29	Cabinet Top
30	Micro Switch-Lock
31	WPL 295850
32	Cover Plate Lock
33	Bracket-Micro Switch
34	Heat Shield (Lt. or Rt.)
35	Screw 6-32×1/4“
36	Screw 6-32 x 1/2“
37	Side Trim-Control Panel
37	Right
37	Left
38	Washer
39	Lower Trim
40	Harness Conduit Asm.
41	Plate (For Key 45)
42	Nut (For Key 45)
43	Knurled Nut
44	Washer
45	Knob-Lower Oven Thermostat
46	Knob-Clock
47	Knob-Oven Thermostat
48	Knob-Selector Switch
