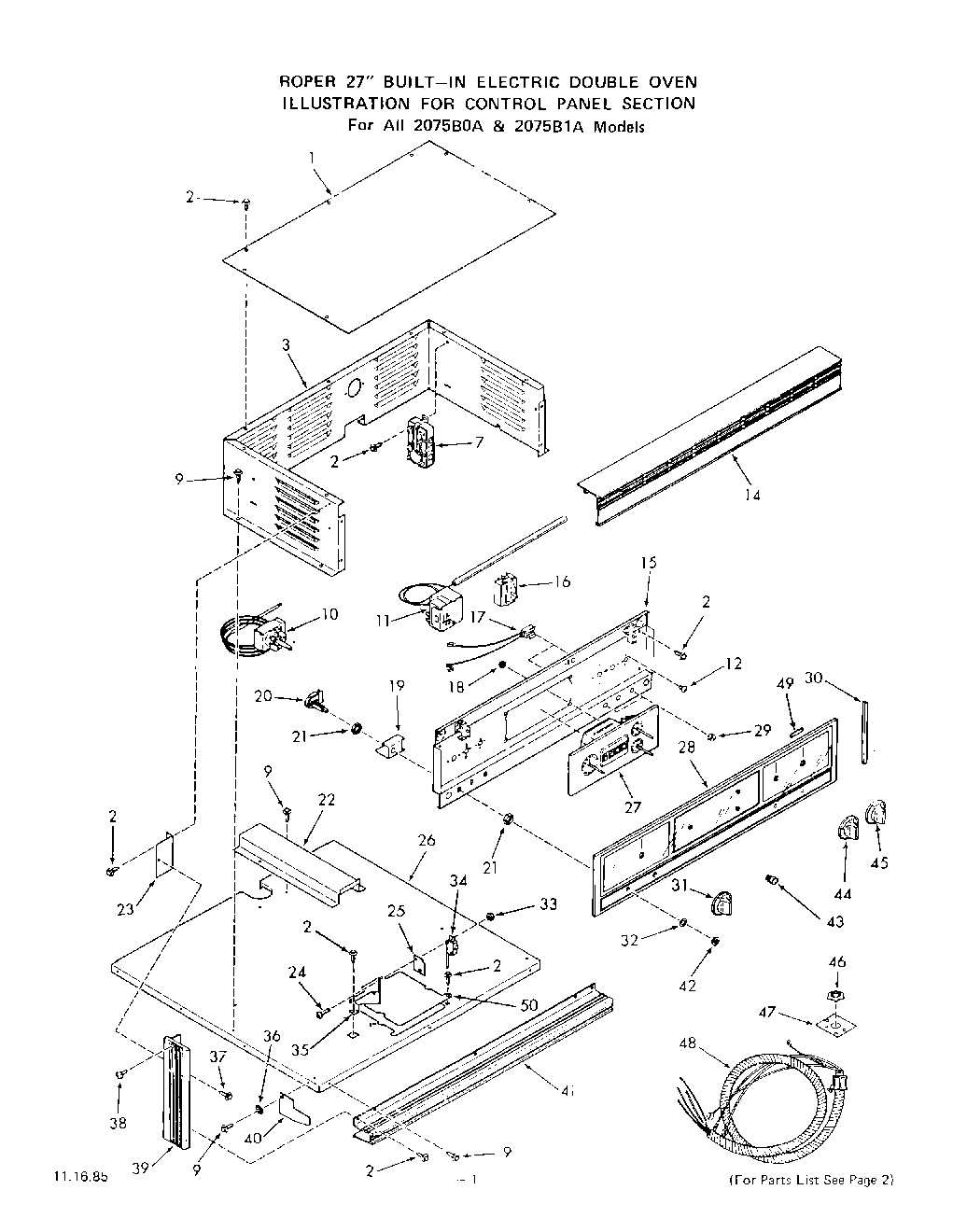

2075B1A 02 – OVEN DOOR LOCK

Products

Position	Product
1	Top-Control Housing
2	Screw 10 - 32 x 7/16``
3	Control Housing
7	Oven Relay
9	Screw 10-16x7/16``
10	Lower Oven Thermostat
11	Oven Thermostat
12	WPL 78565
14	Top Trim
15	Mounting Panel-Controls
16	Selector Switch
17	Indicator Light
17	Upper Oven
17	Lower Oven
18	Keps Nut 10-24
19	Shield-Switch
20	Push Switch-Oven Light
21	Lock Nut
22	Wire Cover
23	Control Panel Support (Lt. or Rt.)
24	Screw 4-40x3/4``
25	Insulator
26	Cabinet Top
27	Clock w/1 Hr. Timer
28	Control Panel Glass
29	Lens-Indicator Light
30	End Trim-Control Panel Glass (Rt or Lt)
31	Knob-Lower Oven Thermostat
32	Washer
33	Keps Nut 4-40
34	Micro Switch - Lock
35	Bracket-Micro Switch
36	Washer
37	Screw 6-32x1/4``
38	Screw 6-32 x 1/2``
39	Side Trim-Control Panel
39	Left
39	Right
40	Heat Shield (Lt. or Rt.)
41	Control Panel Trim
42	Knurled Nut
43	Knob-Clock (Start & Stop Time)
44	Knob-Oven Thermostat
45	Knob-Selector Switch
46	Nut (For Key 45)
47	Plate (For Key 45)
48	Harness Conduit Asm.
49	Cushion-Door Glass
50	Cover Plate-Lock
