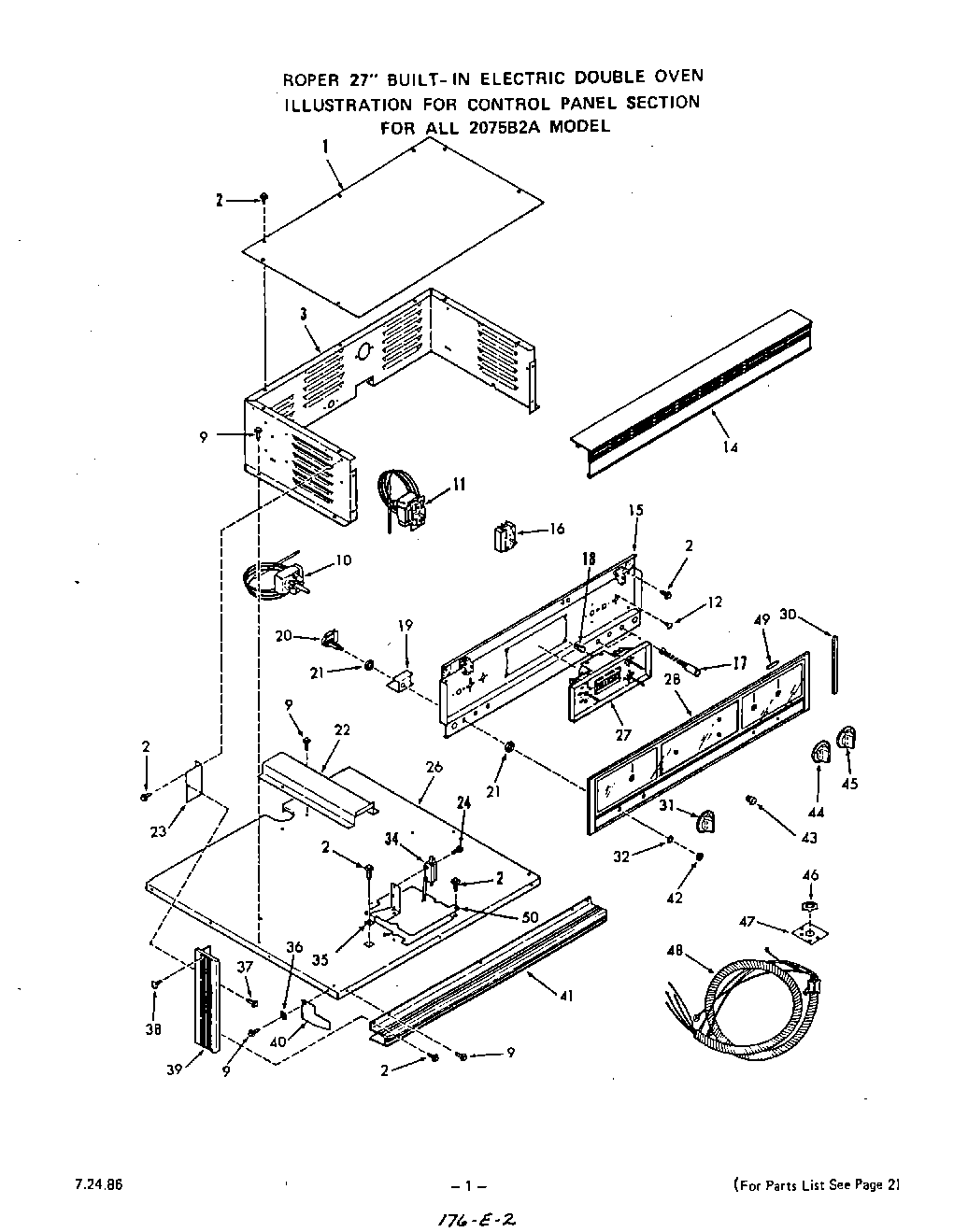

2075B2A 02 – CONTROL PANEL

Products

Position	Product
1	Top-Control Housing
2	Screw 10 – 32 x 7/16“
3	Control Housing
9	Screw 10-16×7/16“
10	Lower Oven Thermostat
11	Oven Thermostat
12	WPL 78565
14	Top Trim
15	Mounting Panel-Controls
16	Selector Switch
17	Indicator Light
17	Lower Oven
17	Indicator Light
18	Tubular Clip (4 Req.)
19	Shield-Switch
20	Push Switch-Oven Light
21	Lock Nut
22	Wire Cover
23	Control Panel Support (Lt. or Rt.)
24	Screw 6-32×7/8“
26	Cabinet Top
27	Clock w/1 Hr. Timer
28	Control Panel Glass
30	End Trim-Control Panel Glass (Rt or Lt)
31	Knob-Lower Oven Thermostat
32	Washer
34	Micro Switch-Lock
35	Bracket-Micro Switch
36	Washer
37	Screw 6-32×1/4“
38	Screw 6-32 x 1/2“
39	Left
39	Side Trim-Control Panel
39	Right
40	Heat Shield (Lt. or Rt.)
41	Control Panel Trim
42	Knurled Nut
43	Knob-Clock (Start & Stop Time)
44	Knob-Oven Thermostat
45	Knob-Selector Switch
46	Nut (For Key 45)
47	Plate (For Key 45)
48	Harness Conduit Asm.
49	Cushion-Door Glass
50	Cover Plate Lock
