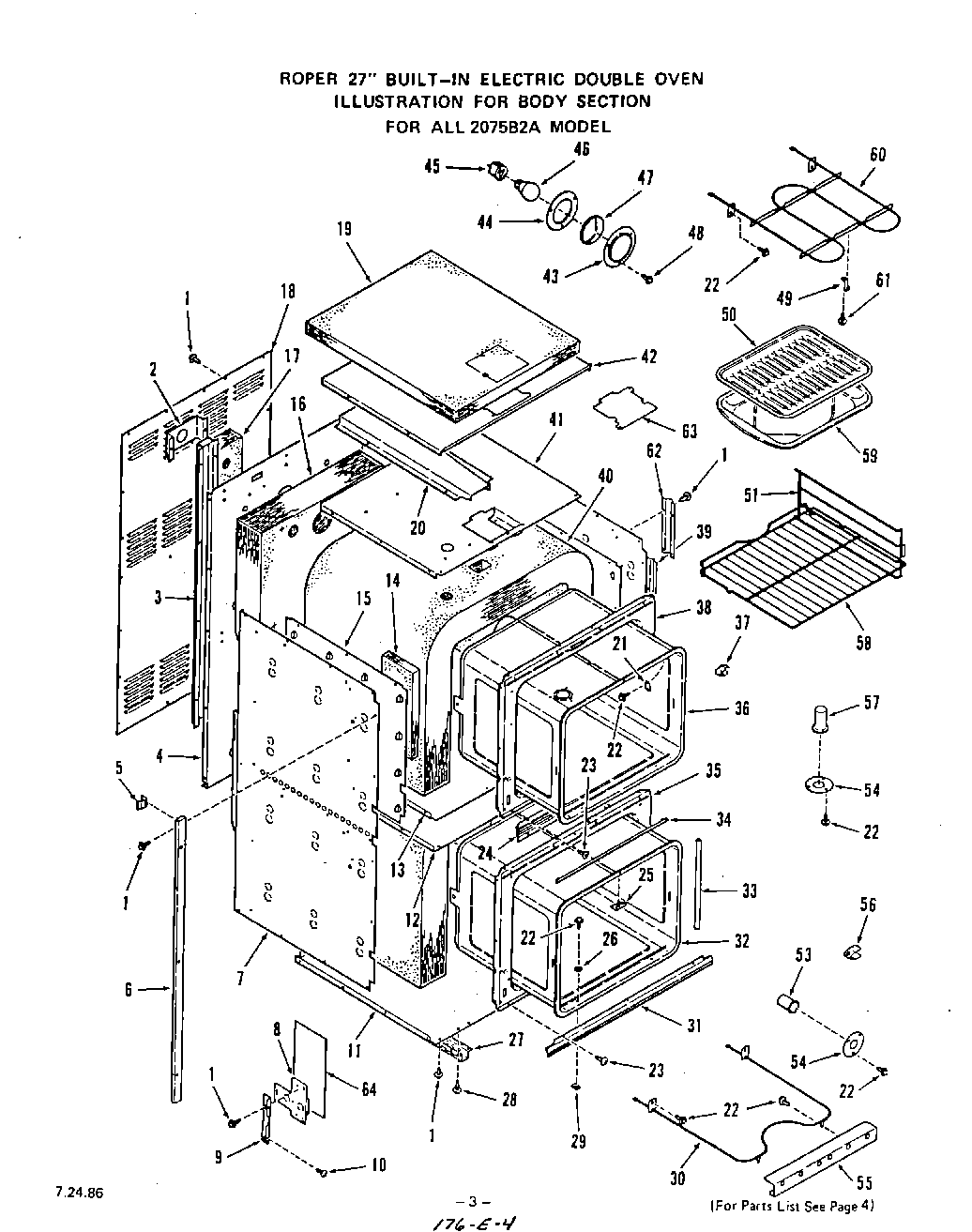

2075B2A 04 – BODY , LIT/OPTIONAL

Products

Position	Product
1	WP112432 Whirlpool Nut Assembly
2	Insulation Retainer-Oven Light
3	Rear Oven Vent Box
4	Main Back
5	Spacer (4 Req)
6	Side Trim (Lt. or Rt.)
7	Right
7	Left
7	Cabinet Side
8	Hinge Box Asm. Lt or Rt
9	Hinge Angle-Lt. or Rt.
11	Cabinet Bottom
12	Insulation Retainer-Ov. Top (Lo)
13	Insulation Retainer-Btm. (Up.)
14	Insulation (Lt. or Rt.)
15	Insulation Retainer-Oven Side (lt. or Rt.)
16	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
18	Cabinet Back
19	Insulation-Cabinet Top
20	Top Oven Vent Box
21	Cover Plate-Thermostat Bulb
23	Screw 10-32 x 5/8“
24	Center Front Trim
25	Cover
26	Washer
27	Bottom Channel-Lt. or Rt.
28	Screw 10 – 32 x 1/4“
29	Speed Nut 10-32
30	Bake Element
30	Upper Oven 2075B1A Model
30	Bake Element
31	Lower Trim
32	2075B1A Model
33	Lower Oven Door
34	Lower Oven Seal Lt or Rt
35	2075B1A Model
36	2055B1A Model
37	Clip-Thermostat Bulb (2 Req)
38	2055B1A Model
39	WPL 325532
40	Insulation Oven Top & Sides (1 Piece)
41	Insulation Retainer-Oven Top
42	Insulation Retainer-Cabinet Top
43	Retainer-Oven Light Lens
44	Gasket-Lens
45	Holder-Oven Light Bulb
46	Oven Lamp Bulb
47	Lens-Oven Light
48	Screw 10 – 32 x 17/32“
49	Broiler Element Support
50	WPL 326297
51	Oven Rack Guide-Rt. or Lt.
53	WPL 294679
54	Oven Vent Clamp
55	WPL 331670
56	WPL 291123
58	Oven Rack (2 Req)
59	WPL 331592
60	Broiler Element
61	Screw 10ABx3/8“
62	WPL 323665
63	Cover Plat
64	WPL 114300
