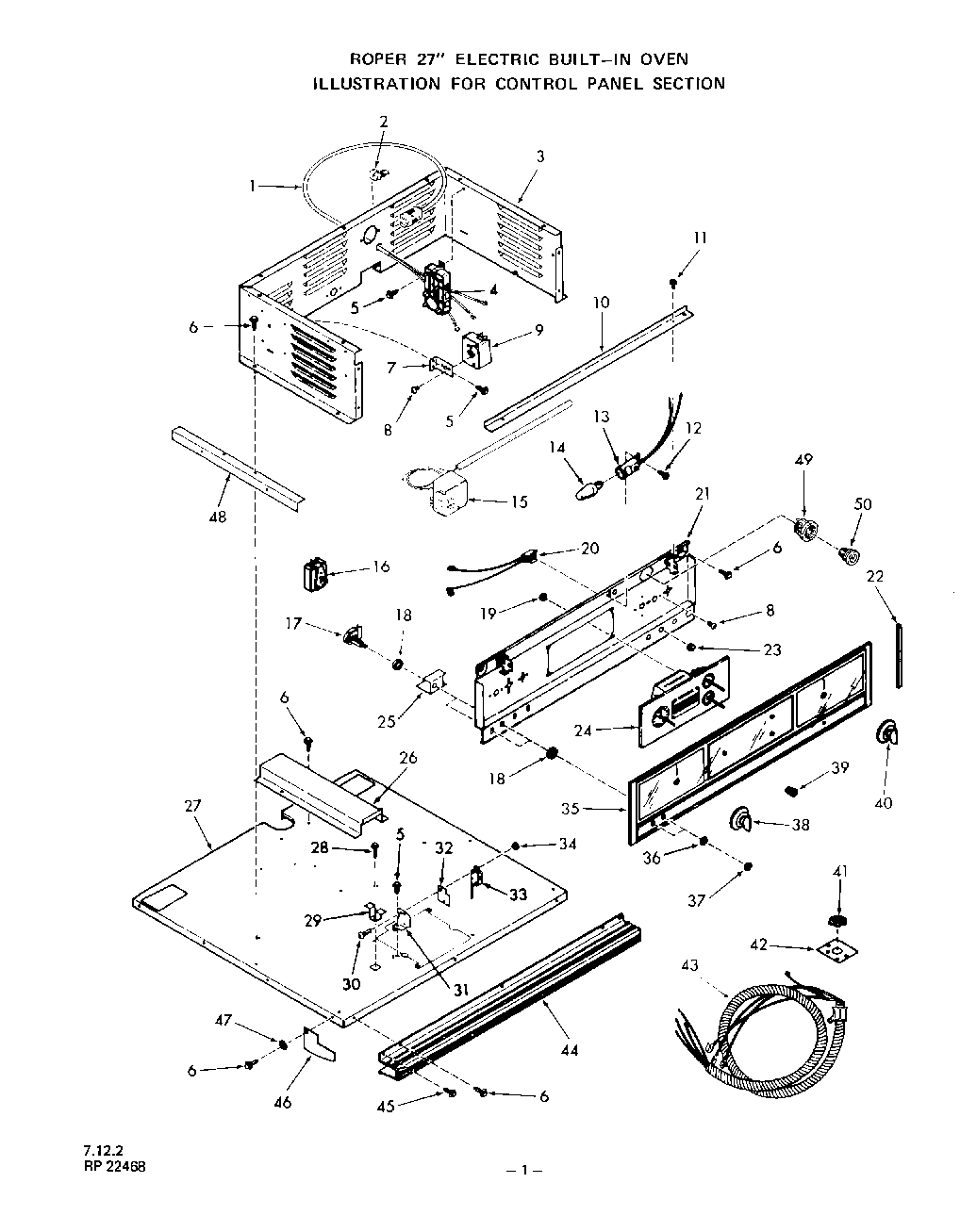

2092B0A 02 – CONTROL PANEL
Written by
in
2092B0A 02 – CONTROL PANEL
Products
Position
Product
1
Cord w/Plug
2
Strain Relief
3
Control Housing
4
Oven Relay
5
Screw 10 – 32 x 7/16“
7
Mounting Bracket-Fixed Input Control
8
WPL 78565
9
Fixed Input Control
10
Shield-Wires
11
Screw 6-32×1/4“
12
WPL 97220
13
Lamp Bulb Holder
14
Lamp Bulb
15
Oven Thermostat
16
Selector Switch
17
Push Switch-Oven Light
18
Lock Nut
19
Keps Nut 10-24
20
Indicator Light
21
Mounting Panel-Controls
22
End Trim-Control Panel Glass (Rt or Lt)
23
Lens-Indicator Light (2 Req)
24
Clock w/1 Hr. Timer
25
Shield-Switch
26
Wire Cover
27
Cabinet Top
28
WP112432 Whirlpool Nut Assembly
29
Spacer
30
Screw 4-40×3/4“
31
Bracket-Micro Switch
32
Insulator
33
Micro Switch – Lock
34
Keps Nut 4-40
35
Control Panel Glass
36
Washer
37
Knurled Nut
38
Knob-Selector Switch
39
Knob-Clock (Start & Stop Time)
40
Knob-Oven Thermostat
41
Nut (For Key 45)
42
Plate (For Key 45)
43
Harness Conduit Asm.
44
Control Panel Trim
45
Screw 10-32×1/2“
46
Heat Shield (Lt. or Rt.)
47
Washer
48
Stiffener-Lt. or Rt.
49
Fuse Holder
50
Fuse-15 Amp.
←
