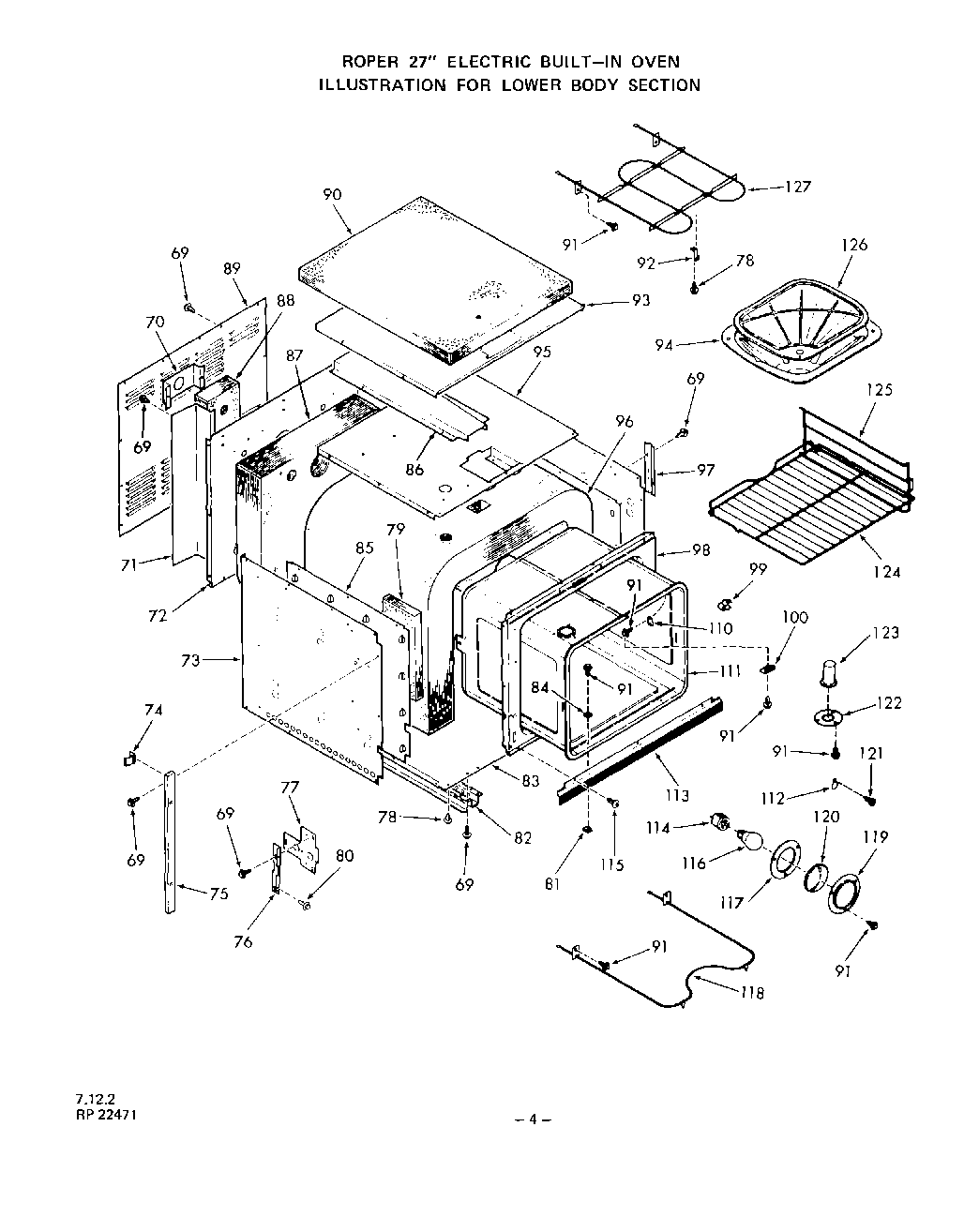

2092B0A 04 – LOWER BODY

Products

Position	Product
69	WP112432 Whirlpool Nut Assembly
70	Insulation Retainer-Oven Light
71	Side-Air Channel (Lt. or Rt.)
72	Main Back
73	Cabinet Side (Left)
73	Cabinet Side (Right)
74	Spacer (4 Req)
75	Side Trim-Lt. or Rt.
76	Hinge Angle-Lt. or Rt.
77	Hinge Box Asm. Lt or Rt
78	Screw 10 – 32 x 1/4“
79	Insulation (Lt. or Rt.)
81	Speed Nut 10-32
82	Base-Lt. or Rt.
83	Cabinet Bottom
84	Washer
85	Insulation Retainer-Oven Side
86	Top Vent Box
87	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
89	WP489128 Whirlpool Refrigerator Screw
91	Screw 10 – 32 x 17/32“
92	Broiler Element Support
93	Insulation Retainer-Cabinet Top
94	Broiler Pan
95	Insulation Retainer-Oven Top
96	Insulation Oven Top & Sides (1 Piece)
97	Raceway
98	Front Frame
99	Thermostat Bulb Retainer (2 Required)
100	Cover
110	Cover Plate-Thermostat Bulb
111	Oven Body
112	Cover Plate, Rotisserie
113	Lower Trim
114	Holder-Oven Light Bulb
115	Screw 10-32 x 5/8“
116	Oven Lamp Bulb
117	Gasket-Lens
118	Bake Element
119	Retainer-Oven Light Lens
120	Lens-Oven Light
121	Shoulder Screw 10-32×1/2“
122	Oven Vent Clamp
124	Oven Rack (2 Req)
125	Oven Rack Guide-Rt. or Lt.
126	Broiler Pan Grid
127	Broiler Element
