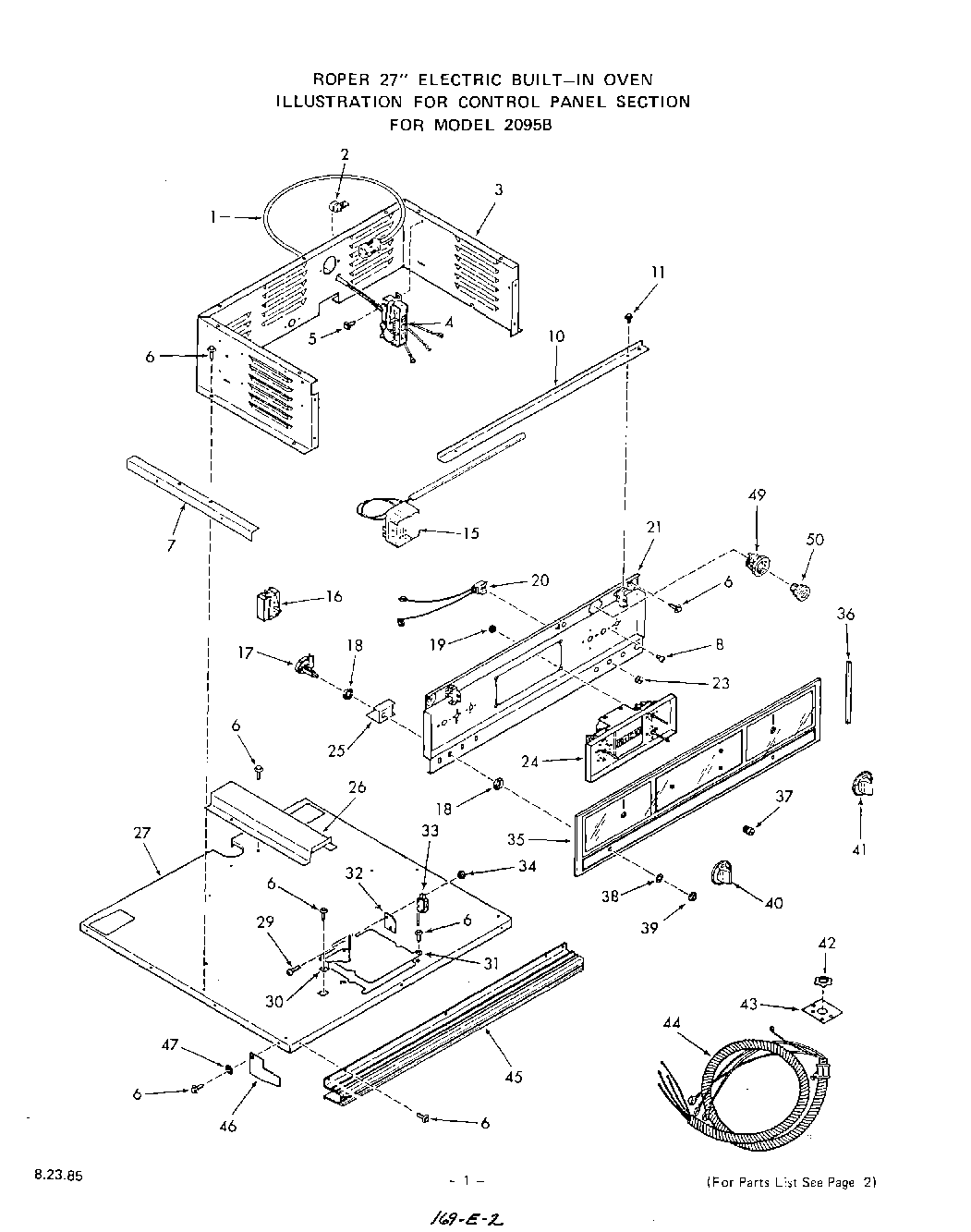

2095B1A 02 – CONTROL PANEL

Products

Position	Product
1	Cord w/Plug
2	Strain Relief
3	Control Housing
4	Oven Relay
5	Screw 10 – 32 x 7/16“
6	WP112432 Whirlpool Nut Assembly
7	Stiffener-Lt. or Rt.
8	WPL 78565
10	Shield-Wires
11	Screw 6-32×1/4“
15	Oven Thermostat
16	Selector Switch
17	Push Switch-Oven Light
18	Lock Nut
19	Keps Nut 10-24
20	Indicator Light
21	Mounting Panel-Controls
23	Lens-Indicator Light
24	Clock w/1 Hr. Timer
25	Shield-Switch
26	Wire Cover
27	Cabinet Top
29	Screw 4-40×3/4“
30	Bracket-Micro Switch
31	Cover Plate-Lock
32	Insulator
33	Micro Switch – Lock
34	Keps Nut 4-40
35	Control Panel Glass
36	End Trim-Control Panel Glass (Rt or Lt)
37	Knob-Clock (Start & Stop Time)
38	Washer
39	Knurled Nut
40	Knob-Selector Switch
41	Knob-Oven Thermostat
42	Nut (For Key 45)
43	Plate (For Key 45)
44	Harness Conduit Asm.
45	Control Panel Trim
46	Heat Shield (Lt. or Rt.)
47	Washer
49	Fuse Holder
50	Fuse-15 Amp.
