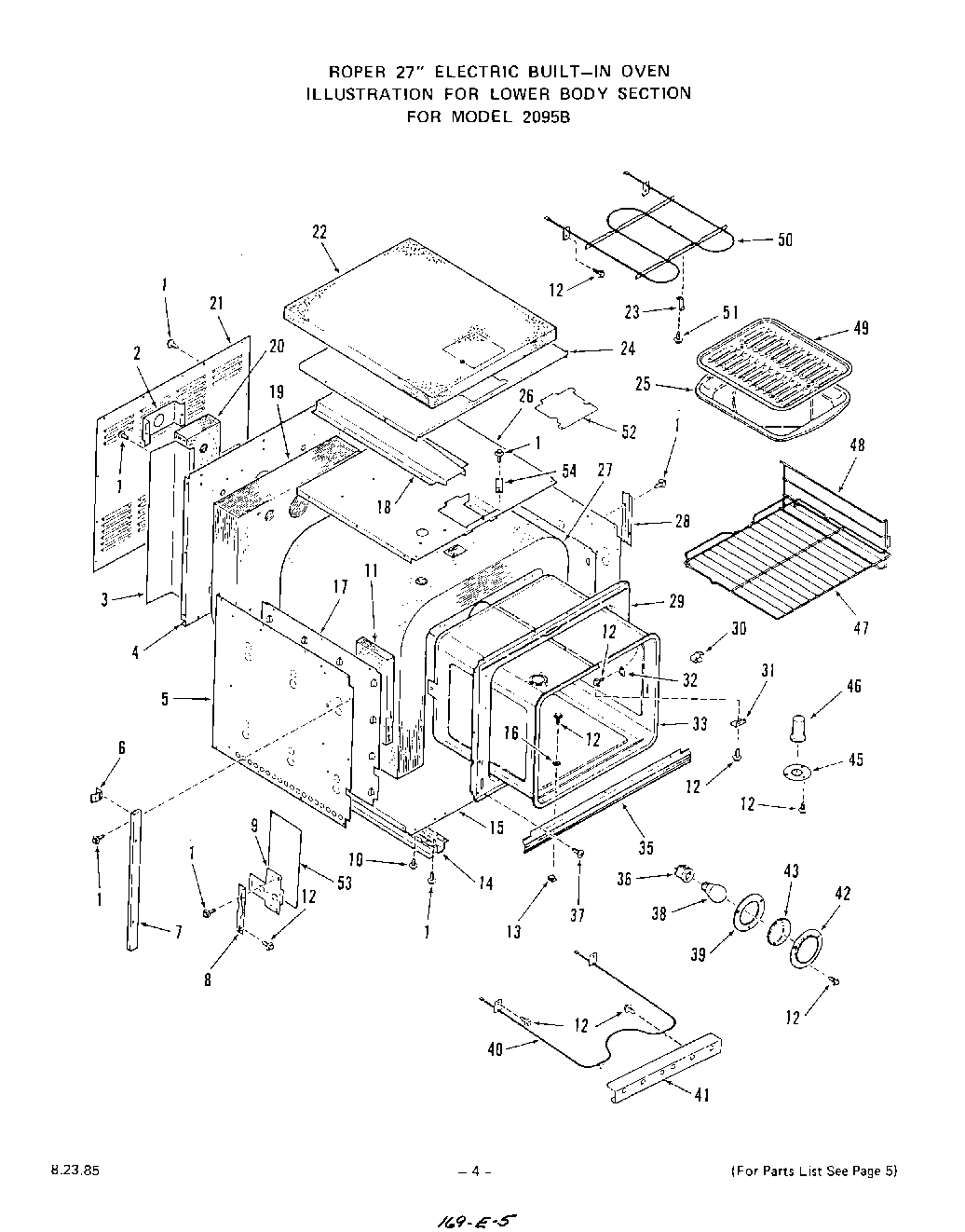

2095B1A 04 – LOWER BODY

2095B1A 04 – LOWER BODY

Written by

in

2095B1A 04 – LOWER BODY

Products

PositionProduct
1Screw 10-32×7/16“
2Insulation Retainer-Oven Light
3Side-Air Channel (Lt. or Rt.)
4Main Back
5Right
5Left
5Cabinet Side
6Spacer (4 Req)
7Side Trim-Lt. or Rt.
8Hinge Angle-Lt. or Rt.
9Hinge Box Asm. Lt or Rt
10Screw 10 – 32 x 1/4“
11Insulation (Lt. or Rt.)
12Screw 10 – 32 x 17/32“
13Speed Nut 10-32
14Base-Lt. or Rt.
15Cabinet Bottom
16Washer
17Insulation Retainer-Oven Side (lt. or Rt.)
18Top Oven Vent Box
19WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
21Cabinet Back
23Broiler Element Support
24Insulation Retainer-Cabinet Top
252055B0A Model
25Pan-Broiler
25WPL 331592
26Insulation Retainer-Oven Top
27Insulation Oven Top & Sides (1 Piece)
28Raceway
292055B1A Model
29Front Frame
292055B0A Model
30Thermostat Bulb-Retainer (2 Req)
31Cover
32Cover Plate-Thermostat Bulb
332055B0A Model
332055B1A Model
33Oven Body
35Lower Trim
36Holder-Oven Light Bulb
37Screw 10-32 x 5/8“
38Oven Lamp Bulb
39Gasket-Lens
40Bake Element
41Shield-Element
41WPL 325918
41WPL 331670
42Retainer-Oven Light Lens
43Lens-Oven Light
45Oven Vent Clamp
47Oven Rack (2 Req)
48Oven Rack Guide-Rt. or Lt.
49WPL 326297
50Broiler Element
51Screw 10ABx3/8“
52Cover Plat
53WPL 114300
54Bracket
