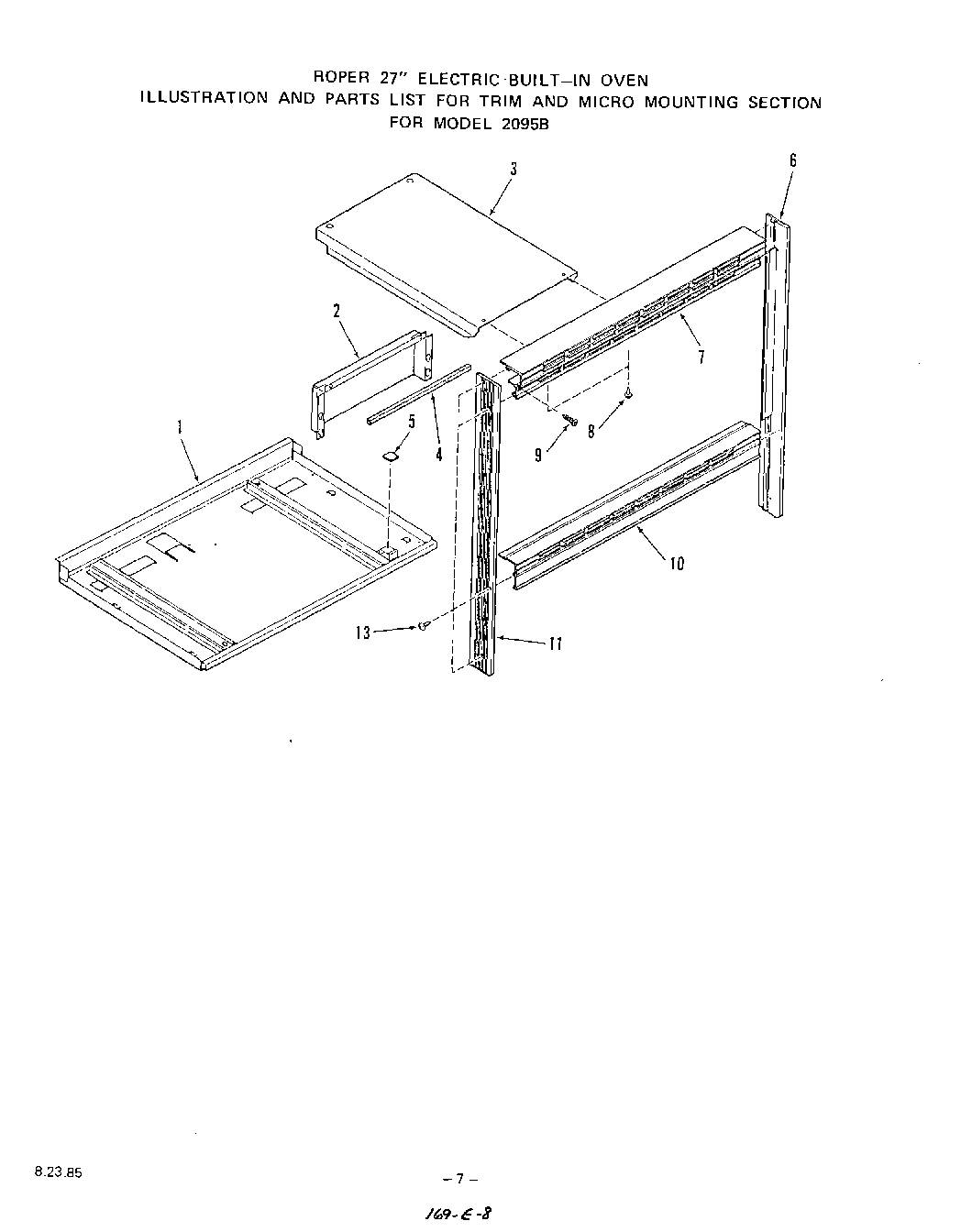

2095B1A 06 – TRIM AND MICRO MOUNTING

Products

PositionProduct
xWire Harness
1Module Support Bottom
2Vent Box
3Extension-Vent
4Foam Strip
5Spacer (2 Req)
6Side Trim-Right
7Top Trim
8WP112432 Whirlpool Nut Assembly
9Screw 10ABx2 1/2“
10Trim-Lower
11Side Trim-Left
13Auxiliary
13Screw 6-32 x 1/2“
13Main
