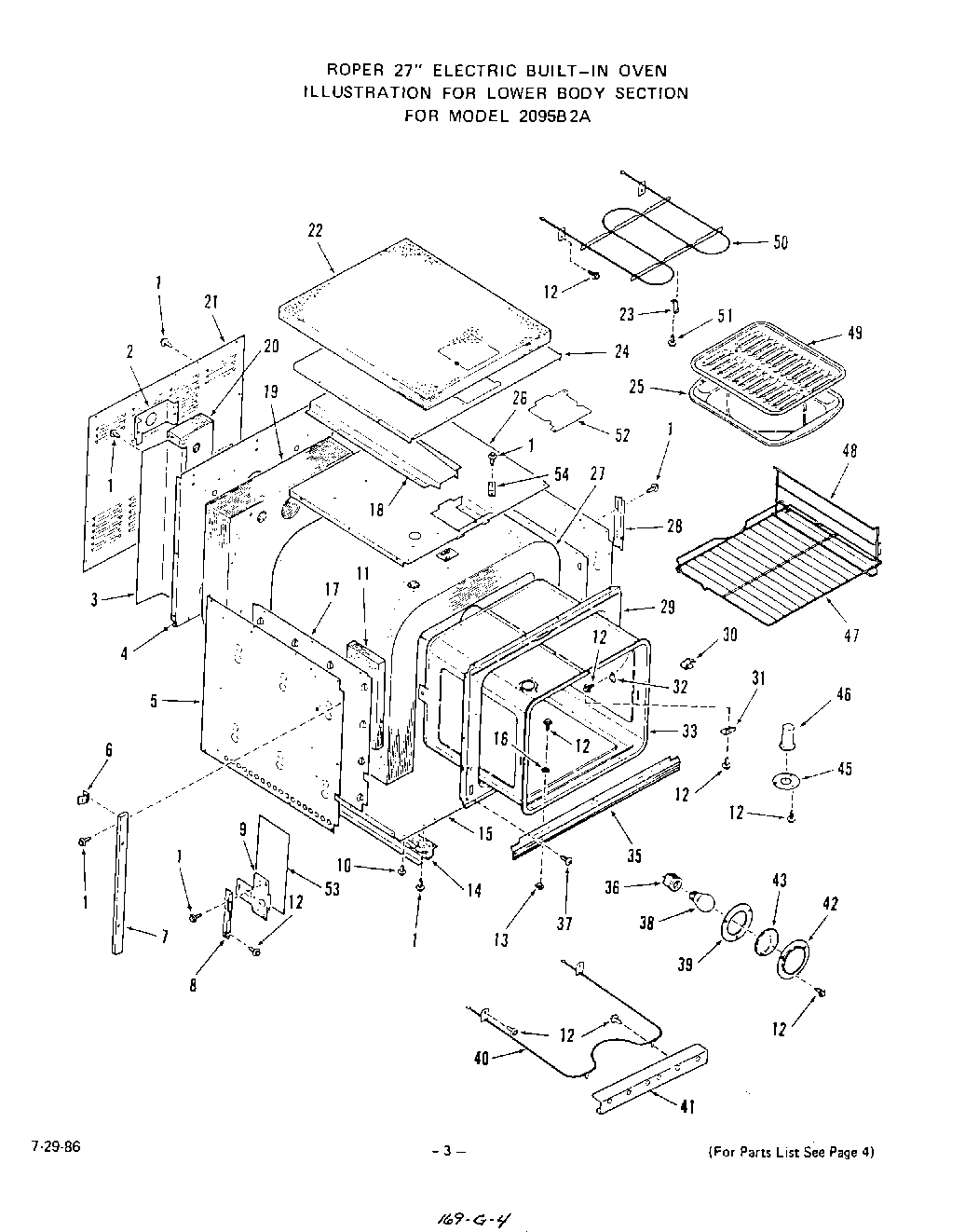

2095B2A 04 – LOWER BODY

Products

Position	Product
1	WP112432 Whirlpool Nut Assembly
2	Insulation Retainer-Oven Light
3	Side-Air Channel (Lt. or Rt.)
4	Main Back
5	Left
5	Right
5	Cabinet Side
6	Spacer (4 Req)
7	Side Trim-Lt. or Rt.
8	Hinge Angle-Lt. or Rt.
9	Hinge Box Asm. Lt or Rt
10	Screw 10 – 32 x 1/4“
11	Insulation (Lt. or Rt.)
12	Screw 10 – 32 x 17/32“
13	Speed Nut 10-32
14	Base-Lt. or Rt.
15	Cabinet Bottom
16	Washer
17	Insulation Retainer-Oven Side (lt. or Rt.)
18	Top Oven Vent Box
19	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
21	Cabinet Back
22	Insulation-Cabinet Top
23	Broiler Element Support
24	Insulation Retainer-Cabinet Top
25	WPL 331592
26	Insulation Retainer-Oven Top
27	Insulation Oven Top & Sides (1 Piece)
28	Raceway
29	2055B1A Model
30	Clip-Thermostat Bulb (2 Req)
31	Cover
32	Cover Plate-Thermostat Bulb
33	2055B1A Model
35	Lower Trim
36	Holder-Oven Light Bulb
37	Screw 10-32 x 5/8“
38	Oven Lamp Bulb
39	Gasket-Lens
40	Bake Element
41	WPL 331670
42	Retainer-Oven Light Lens
43	Lens-Oven Light
45	Oven Vent Clamp
47	Oven Rack (2 Req)
48	Oven Rack Guide-Rt. or Lt.
49	WPL 326297
50	Broiler Element
51	Screw 10ABx3/8“
52	Cover Plat
53	WPL 114300
54	Bracket
