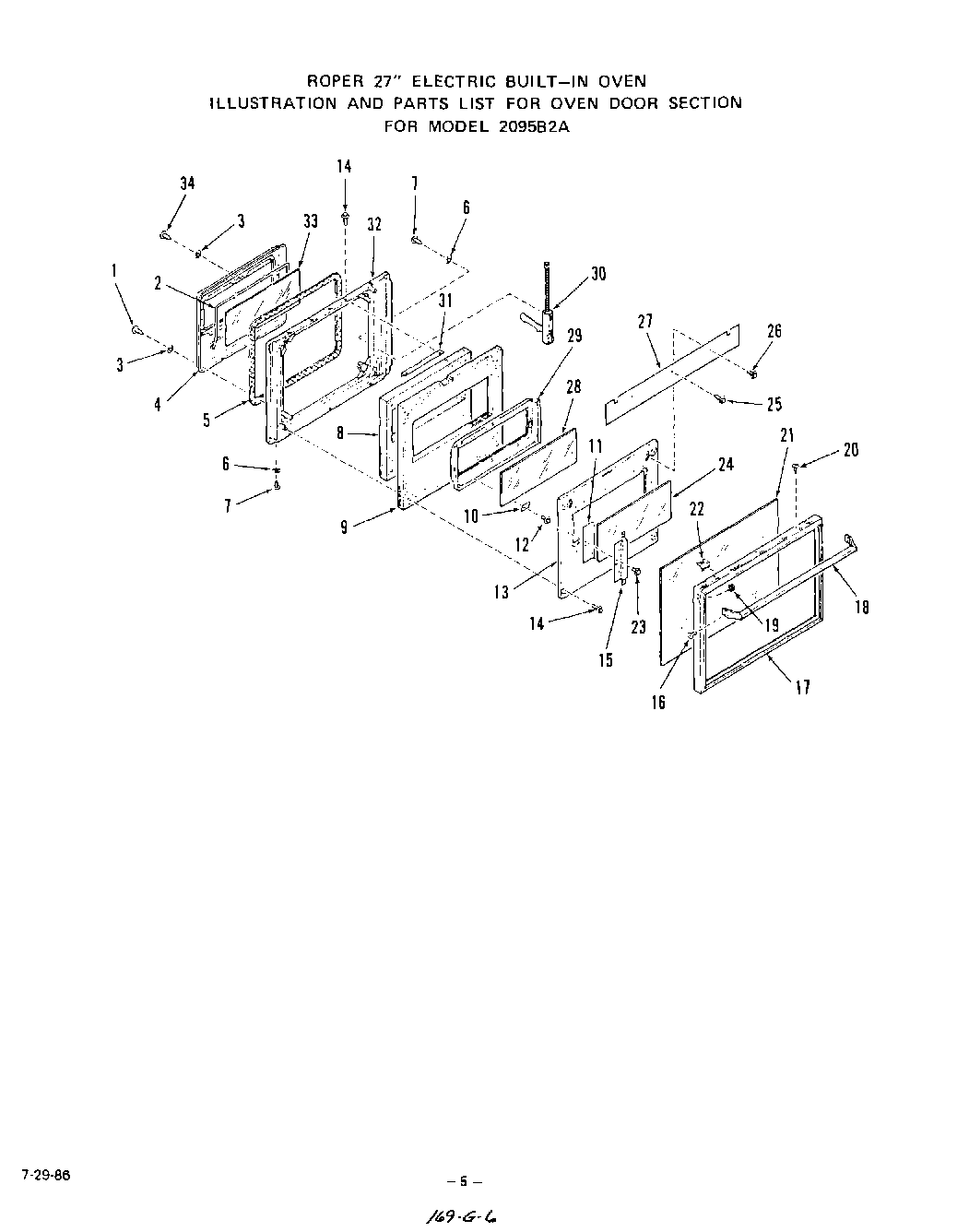

| 1 | Screw 10ABx1/2`` |
| 2 | Seal-Inner Glass |
| 3 | WPL 21067 |
| 4 | Plug-Oven Door Lining |
| 5 | Oven Door Gasket |
| 6 | Washer |
| 7 | Screw 10-32x5/16`` |
| 8 | Insulation-Oven Door Plug |
| 9 | Insulation-Oven Door Lining |
| 10 | Door Glass Retainer (4 Req) |
| 11 | Spacer-Oven Door Glass (Lt. or Rt.) |
| 12 | Screw 10-32x17/32`` |
| 13 | Retainer-Oven Door Insulation |
| 14 | WP112432 Whirlpool Nut Assembly |
| 15 | WP487353 Whirlpool Refrigerator Screw |
| 16 | Screw 8-32 x 1/2`` |
| 17 | Frame-Oven Door |
| 18 | Oven Door Handle |
| 19 | Keps Nut 8-32 |
| 20 | Screw 6-20x3/8`` |
| 21 | Oven Door Glass-Outer |
| 22 | Door Glass Retainer (6 Req) |
| 23 | Screw 10ABx3/4`` |
| 24 | Oven Door Glass-Intermediate |
| 25 | WPL 295850 |
| 26 | Screw 6-32x1/4`` |
| 27 | Baffle-Oven Door Lining |
| 28 | Inner Glass-Oven Door |
| 29 | Retainer-Oven Door Glass |
| 30 | Oven Door Hinge-Rt. or Lt. |
| 31 | WP312967 Whirlpool Clamp |
| 32 | 2055B1A Model |
| 33 | Inner Glass-Oven Door |
| 34 | Screw 10ABx1 |
