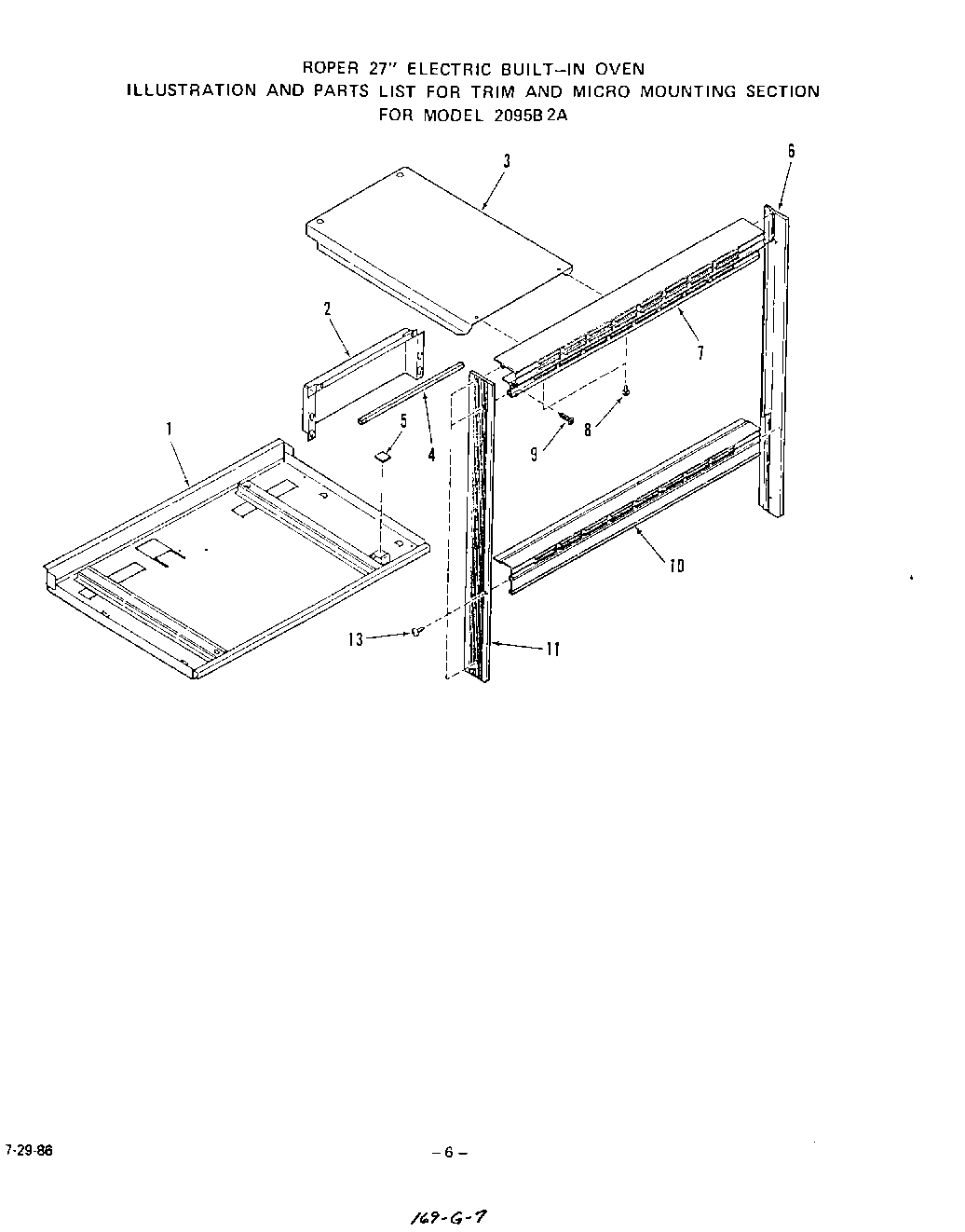

2095B2A 06 – TRIM AND MICRO MOUNTING

Products

Position	Product
	xWire Harness
1	Module Support Bottom
2	Vent Box
3	Extension-Vent
4	Foam Strip
5	Spacer (2 Req)
6	Side Trim-Right
7	Top Trim
8	WP112432 Whirlpool Nut Assembly
9	Screw 10ABx2 1/2“
10	Trim-Lower
11	Side Trim-Left
13	Screw 6-32 x 1/2“
13	Main
13	Lock Switch
