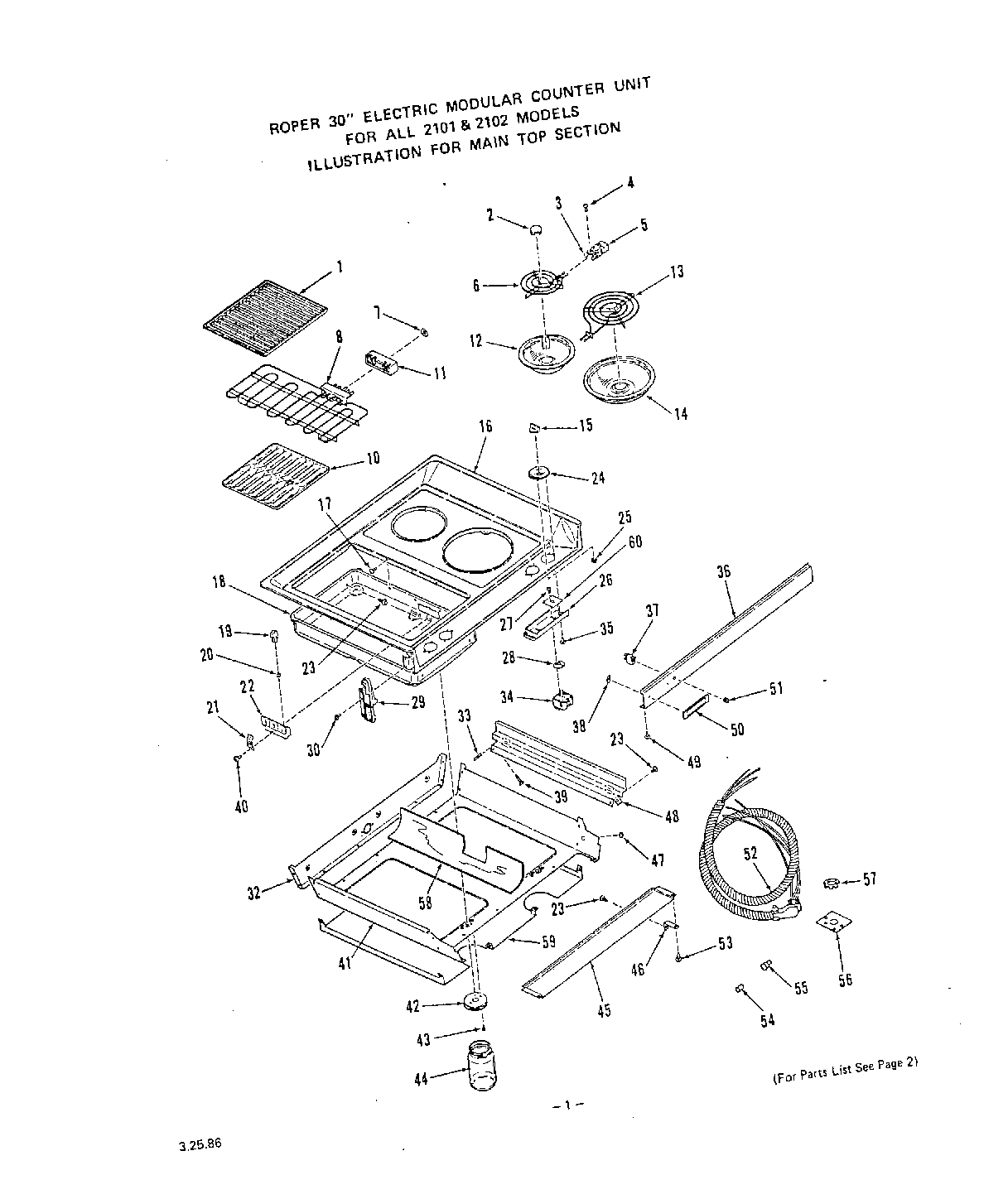

| WPL ARI9248A34 |
| 1 | Grate-Grill (2 Req) |
| 2 | Medallion (2 Req) All 2101 Models |
| 3 | Bracket-Term. Block (2 Req) All 2101 Mod. |
| 4 | Screw 7-32x5/16``(2 Req) All 2101 Models |
| 5 | Term. Block w/Leads-All 2101 Models |
| 6 | 6`` Surface Element (1 Req) All 2101 Models |
| 7 | Speed Nut |
| 8 | Grill Element (1 Req) |
| 8 | 208 Volt (Optional-Order Kit 2C70GEE) |
| 8 | 240 Volt |
| 10 | 21010E,1E,21020E, 1E Models |
| 10 | Reflector-Grill (2 Req) |
| 10 | 21012E & 21022E Models |
| 11 | Terminal Block-Grill Element |
| 12 | 6`` Burner Bowl (1 Req) All 2101 Models |
| 13 | 8`` Surface Element (1 Req) All 2101 Mod. |
| 14 | 8`` Burner Bowl (1 Req) All 2101 Models |
| 15 | Knob-Infinite Control (4 Req) |
| 16 | Black 2102B |
| 16 | Black 2101B |
| 16 | Toast 2102T |
| 16 | Platinum 2102P |
| 16 | Almond 2102L |
| 16 | White 2102W |
| 16 | Toast 2101T |
| 16 | Chrome 2101X |
| 16 | Platinum 2101P |
| 16 | Chrome 2102X |
| 16 | Almond 2101L |
| 16 | White 2101W |
| 16 | Main Top |
| 18 | Left All 21011E,2E,21021E,2E Models |
| 18 | Left All 21010E & 21020E Models |
| 18 | Right All 21010E Models |
| 18 | Right All 21020E Models |
| 18 | Right All 21021E & 21022E Models |
| 18 | Right All 21011E & 21012E Models |
| 18 | Grease Well |
| 19 | 21012E & 21022E Models |
| 19 | Terminal-Female |
| 19 | 21010E, 1E, 21020E, 1E Models |
| 20 | WPL ARI9241A73 |
| 20 | 21010E, 1E, 21020E, 1E Models |
| 21 | WPL 330309 |
| 22 | WPL 329007 |
| 22 | WPL 333732 |
| 22 | WPL ARI9242A76 |
| 23 | Screw 10-16x7/16`` |
| 24 | WPL 331540 |
| 24 | WPL 331543 |
| 24 | WPL 329551 |
| 24 | WPL 329550 |
| 24 | WPL 331541 |
| 24 | WPL ARI9243A24 |
| 24 | WPL 329549 |
| 24 | WPL ARI9244A25 |
| 24 | WPL 329548 |
| 24 | WPL 331542 |
| 25 | WPL 78593 |
| 26 | WPL 331875 |
| 27 | WPL 78565 |
| 28 | WPL 280157 |
| 29 | WPL 328784 |
| 29 | WPL 328783 |
| 29 | WPL ARI9245A94 |
| 30 | Screw-10-32x1/2`` |
| 31 | WPL 329000 |
| 33 | WPL 329056 |
| 34 | WPL 320944 |
| 34 | WPL 331619 |
| 34 | WPL ARI9246A15 |
| 35 | Screw 6-20x3/8`` |
| 36 | WPL ARI9247A86 |
| 36 | WPL 333176 |
| 36 | WPL 329059 |
| 37 | WPL 327326 |
| 38 | WPL 24710 |
| 39 | WPL 329057 |
| 40 | WPL 232183 |
| 41 | WPL 328999 |
| 42 | WPL 329010 |
| 43 | Screw 10 - 32 x 1/4`` |
| 44 | WPL 329034 |
| 45 | WPL 329019 |
| 46 | WPL 329829 |
| 47 | WPL 98229 |
| 48 | WPL 329055 |
| 49 | Screw 6-20x3/8`` |
| 50 | WPL 329016 |
| 51 | WPL 329465 |
| 52 | WPL 333726 |
| 53 | WP112432 Whirlpool Nut Assembly |
| 54 | WPL 112061 |
| 55 | WPL 112062 |
| 56 | WPL 333487 |
| 57 | Nut (For Key 45) |
| 58 | WPL 330186 |
| 59 | WPL 330268 |
| 60 | WPL 329062 |
| 60 | WPL 333863 |
| 60 | WPL 330289 |
| 60 | WPL 329048 |
