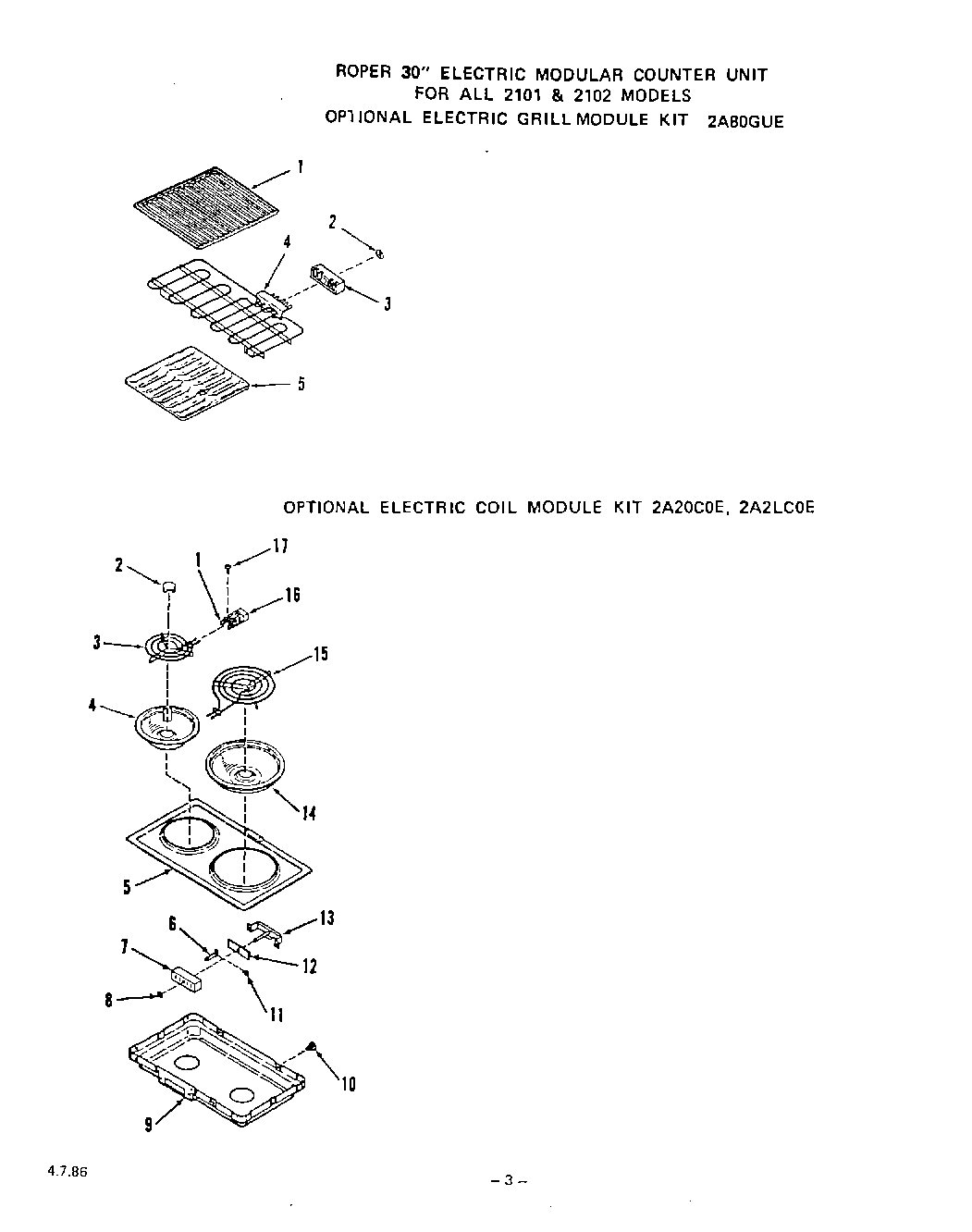

2101W0E 03 – ELECTRIC GRILL MODULE KIT, ELECTRIC

Products

Position	Product
A12	hold down, glass (2)
A5	Chrome
A5	Almond
A9	Pan-Module
A7	Terminal Block-Grill Element
A4	6`` Burner Bowl (1 Req) All 2101 Models
A15	8`` Surface Element (1 Req) All 2101 Mod.
A14	8`` Burner Bowl (1 Req) All 2101 Models
A10	WPL 232183
A5	Main Top
A8	Speed Nut
A13	Bracket-Terminal Block
A3	6`` Surface Element (1 Req) All 2101 Models
A16	Term. Block w/Leads-All 2101 Models
A17	Screw 7-32x5/16``(2 Req) All 2101 Models
A1	Bracket-Term. Block (2 Req) All 2101 Mod.
A6	Terminal Pin (4 Req)
A11	WPL 78565
A2	Medallion (2 Req) All 2101 Models
1	Grate-Grill (2 Req)
4	Element-Grill
4	240 Volt
4	208 Volt (Optional-Order Kit 2C70GEE)
5	21010E,1E,21020E, 1E Models
