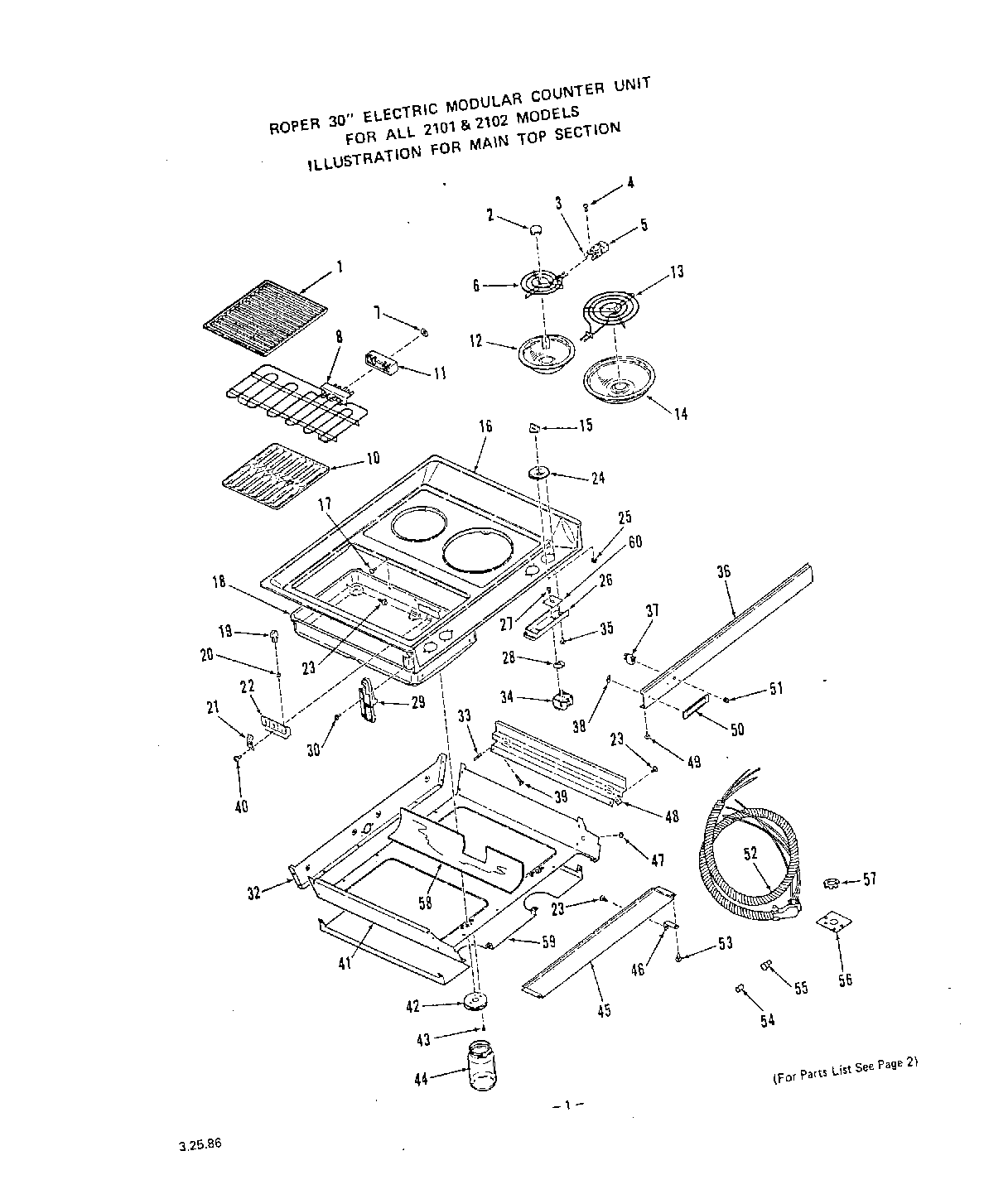

2102^2E 02 – MAIN TOP

2102^2E 02 – MAIN TOP

Written by

in

2102^2E 02 – MAIN TOP

Products

Position	Product
	WPL ARI9344A67
1	Grate-Grill (2 Req)
2	Medallion (2 Req) All 2101 Models
3	Bracket-Term. Block (2 Req) All 2101 Mod.
4	Screw 7-32×5/16“(2 Req) All 2101 Models
5	Term. Block w/Leads-All 2101 Models
6	6“ Surface Element (1 Req) All 2101 Models
7	Speed Nut
8	208 Volt (Optional-Order Kit 2C70GEE)
8	240 Volt
8	Grill Element (1 Req)
10	21012E & 21022E Models
10	Reflector-Grill (2 Req)
10	21010E,1E,21020E, 1E Models
11	Terminal Block-Grill Element
12	6“ Burner Bowl (1 Req) All 2101 Models
13	8“ Surface Element (1 Req) All 2101 Mod.
14	8“ Burner Bowl (1 Req) All 2101 Models
15	Knob-Infinite Control (4 Req)
16	Chrome 2101X
16	Toast 2101T
16	White 2102W
16	Almond 2102L
16	Platinum 2102P
16	Toast 2102T
16	Black 2101B
16	Black 2102B
16	Almond 2101L
16	Chrome 2102X
16	White 2101W
16	Main Top
16	Platinum 2101P
18	Right All 21021E & 21022E Models
18	Right All 21020E Models
18	Grease Well
18	Right All 21010E Models
18	Left All 21011E,2E,21021E,2E Models
18	Right All 21011E & 21012E Models
18	Left All 21010E & 21020E Models
19	Terminal-Female
19	21010E, 1E, 21020E, 1E Models
19	21012E & 21022E Models
20	WPL ARI9337A23
20	21010E, 1E, 21020E, 1E Models
21	WPL 330309
22	WPL ARI9338A65
22	WPL 333732
22	WPL 329007
23	Screw 10-16×7/16“
24	WPL ARI9340A80
24	WPL ARI9339A19
24	WPL 331541
24	WPL 331543
24	WPL 331542
24	WPL 329548
24	WPL 331540
24	WPL 329549
24	WPL 329551
24	WPL 329550
25	WPL 78593
26	WPL 331875
27	WPL 78565
28	WPL 280157
29	WPL ARI9341A38
29	WPL 328784
29	WPL 328783
30	Screw-10-32×1/2“
31	WPL 329000
33	WPL 329056
34	WPL 320944
34	WPL ARI9342A31
34	WPL 331619
35	Screw 6-20×3/8“
36	WPL 333176
36	WPL 329059
36	WPL ARI9343A12
37	WPL 327326
38	WPL 24710
39	WPL 329057
40	WPL 232183
41	WPL 328999
42	WPL 329010
43	Screw 10 – 32 x 1/4“
44	WPL 329034
45	WPL 329019
46	WPL 329829
47	WPL 98229
48	WPL 329055
49	Screw 6-20×3/8“
50	WPL 329016
51	WPL 329465
52	WPL 333726
53	WP112432 Whirlpool Nut Assembly
54	WPL 112061
55	WPL 112062
56	WPL 333487
57	Nut (For Key 45)
58	WPL 330186
59	WPL 330268
60	WPL 330289
60	WPL 329062
60	WPL 329048
60	WPL 333863
