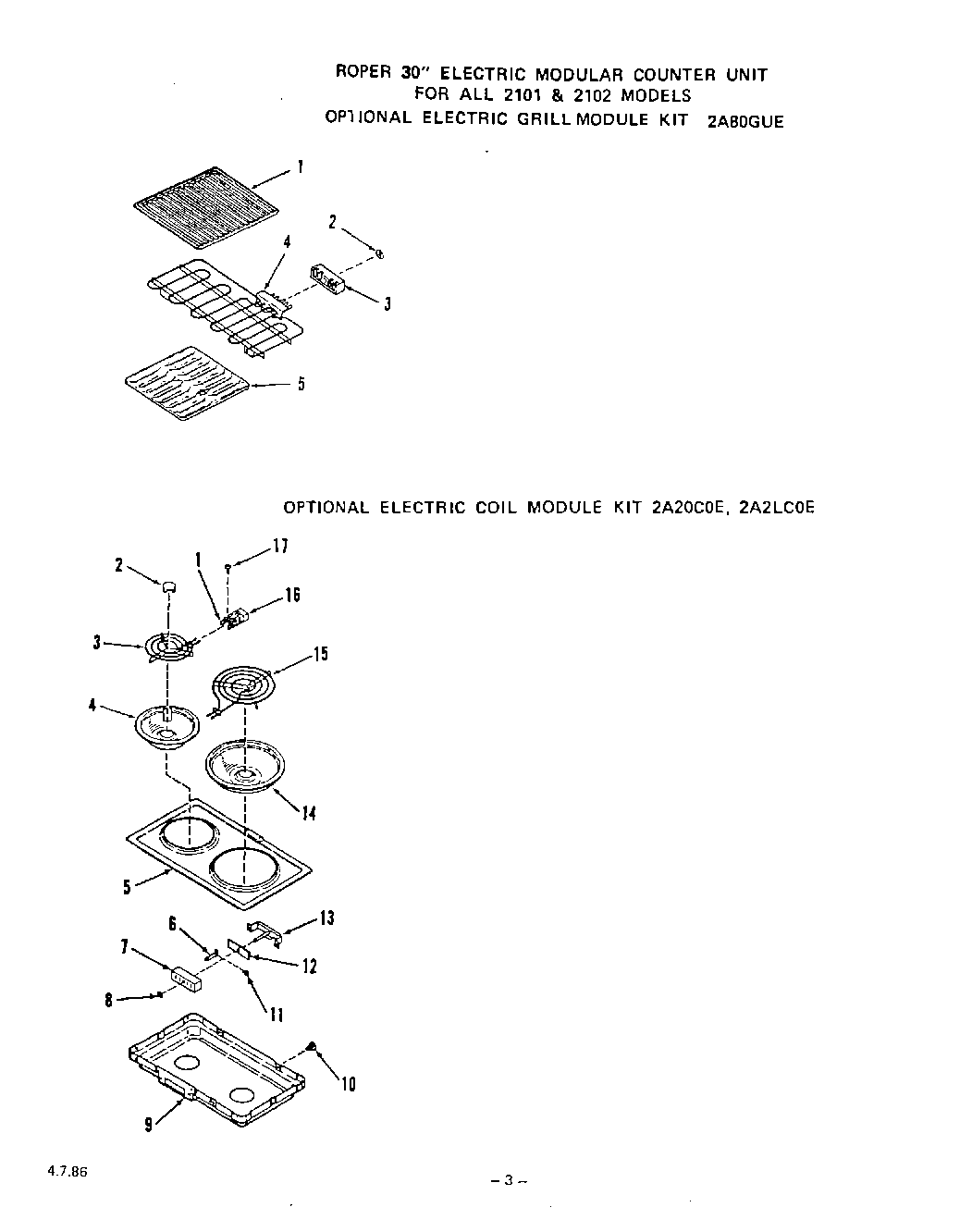

2102^2E 03 – ELECTRIC GRILL MODULE KIT, ELECTRIC

Products

Position	Product
A12	hold down, glass (2)
A5	Chrome
A5	Almond
A9	Pan-Module
A7	Terminal Block-Grill Element
A4	6“ Burner Bowl (1 Req) All 2101 Models
A15	8“ Surface Element (1 Req) All 2101 Mod.
A14	8“ Burner Bowl (1 Req) All 2101 Models
A10	WPL 232183
A5	Main Top
A8	Speed Nut
A13	Bracket-Terminal Block
A3	6“ Surface Element (1 Req) All 2101 Models
A16	Term. Block w/Leads-All 2101 Models
A17	Screw 7-32×5/16“(2 Req) All 2101 Models
A1	Bracket-Term. Block (2 Req) All 2101 Mod.
A6	Terminal Pin (4 Req)
A11	WPL 78565
A2	Medallion (2 Req) All 2101 Models
1	Grate-Grill (2 Req)
4	Element-Grill
4	240 Volt
4	208 Volt (Optional-Order Kit 2C70GEE)
5	21010E,1E,21020E, 1E Models
