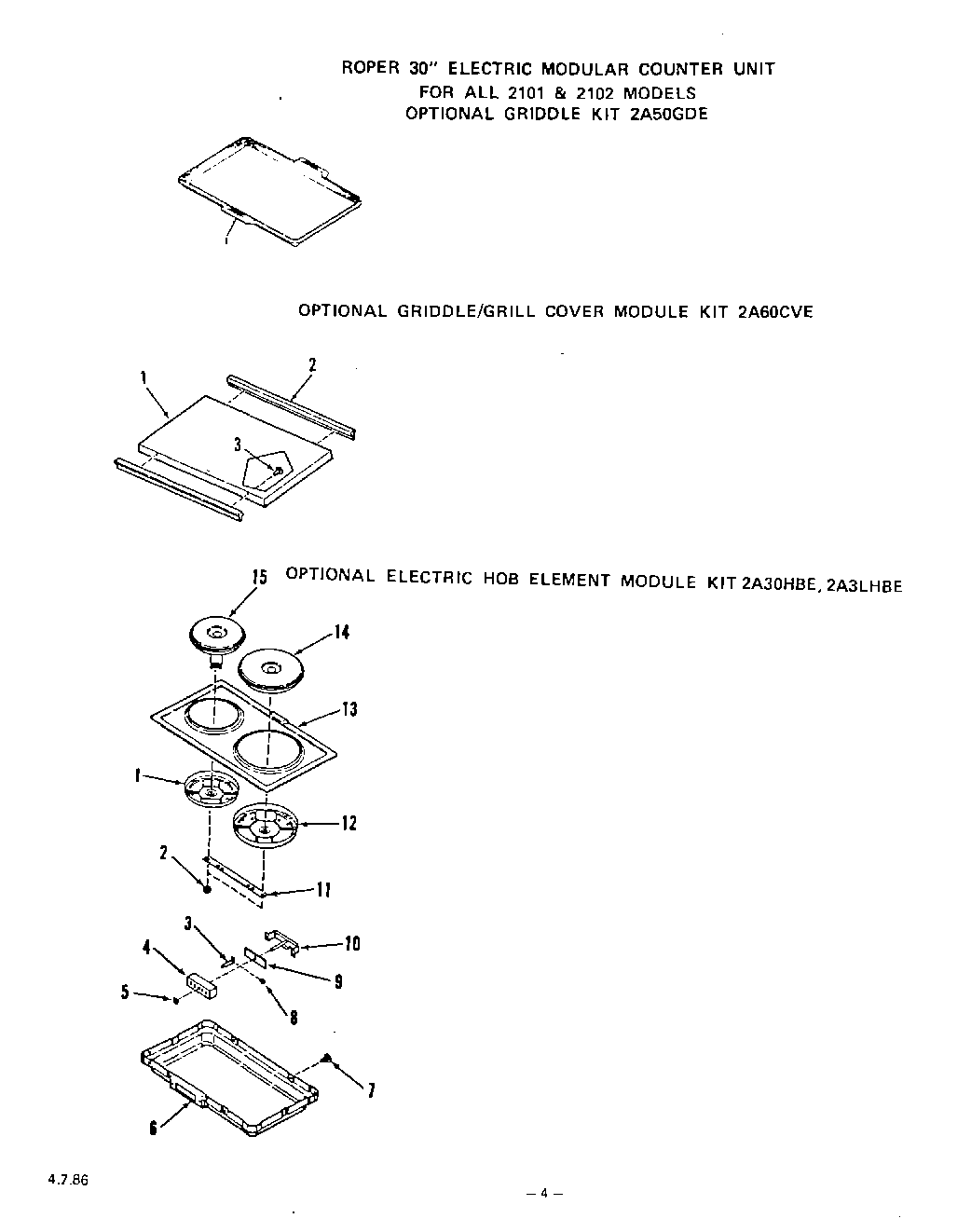

2102W1E 04 – GRIDDLE KIT, GRIDDLE/GRILL COVER

Products

Position	Product
B9	hold down, glass (2)
B12	Clamp-Hob Element (Large)
B13	Chrome
B13	Almond
B14	Element-Hob (Large)
B5	Speed Nut
B15	Element-Hob (Small)
B4	Terminal Block-Grill Element
B7	WPL 232183
B11	Strap-Hob Element
B10	Bracket-Terminal Block
B6	Pan-Module
B8	WPL 78565
A1	Cover
A2	Handle-Rt. or Lt.
A3	Screw 6ABx1/4``
B1	Clamp-Hob Element (Small)
B2	Mounting Nut (2 Req)
B3	Terminal Pin (4 Req)
B13	Main Top
1	Griddle
