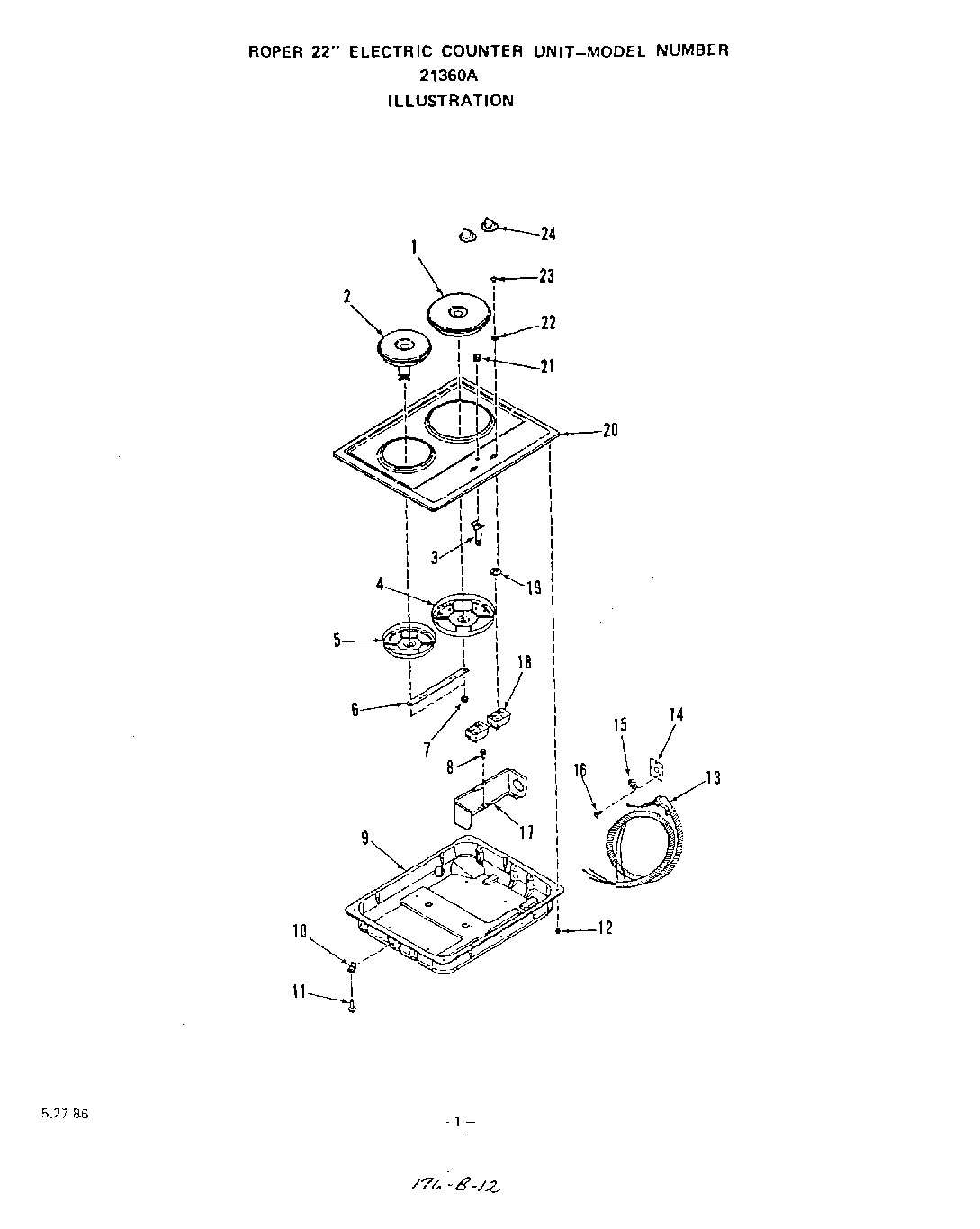

2136X0A 02 – SECTION

Products

Position	Product
1	Element-Hob (Large)
2	Element-Hob (Small)
3	Indicator Light
4	Clamp-Hob Element (Large)
5	Clamp-Hob Element (Small)
6	Strap-Hob Element
7	Mounting Nut (2 Req)
8	WPL 295850
9	Burner Box
10	Retainer Clip
11	Screw 10-32×1“
12	Screw 10ABx1/2“
13	Harness Conduit Asm.
14	Plate (For Key 45)
15	Nut (For Key 45)
16	Screw 10-32×7/16“
17	Barrier
18	Infinite Control
19	WPL 280157
20	Switch, Water Temperature (Alt.)
20	Main Top (Chrome)
21	Lens-Indicator Light (2 Req)
22	Washer
23	Screw 8-32×1/4“
24	Infinite Knob
