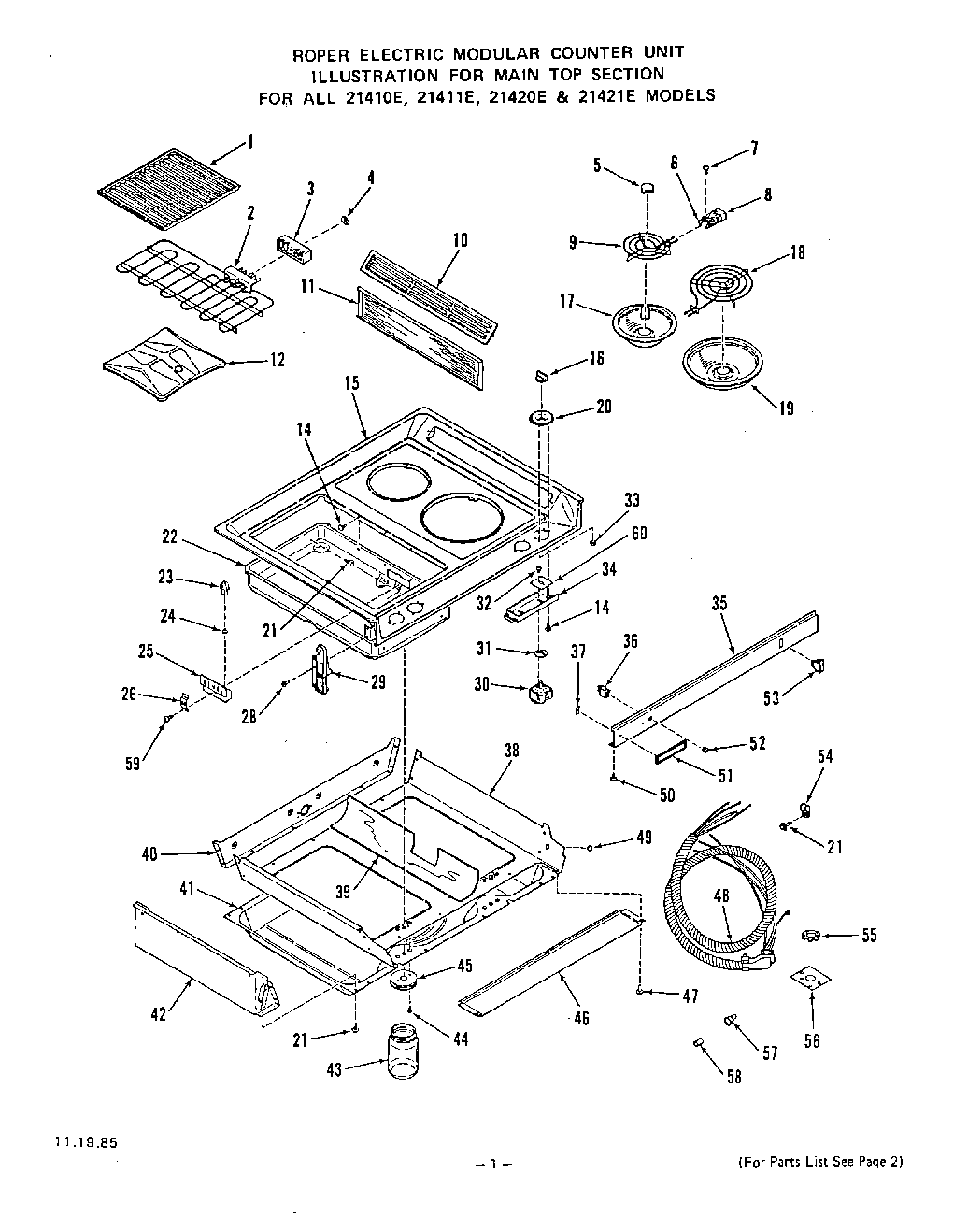

2142W1E 02 – MAIN TOP

Products

Position	Product
1	Grate-Grill (2 Req)
2	Element-Grill
3	Terminal Block-Grill Element
4	Clip-Push On
5	Medallion (2 Req) All 2101 Models
6	Bracket-Term. Block (2 Req) All 2101 Mod.
7	Screw 7-32×5/16“(2 Req) All 2101 Models
8	Term. Block w/Leads-All 2101 Models
9	6“ Surface Element (1 Req) All 2101 Models
10	Air Intake-Grill (Rt. or Lt.)
11	Air Filter (Rt. or Lt.)
12	Reflector-Grill Support (2 Req)
14	Screw 6-20×3/8“
15	Platinum 2142P
15	Main Top
15	Black 2141B
15	Almond 2142L
15	White 2142W
15	Toast 2141T
15	Black 2142B
15	Platinum 2141P
15	Chrome 2142X
15	WP3394509 Whirlpool Bearing Ring
15	Almond 2141L
15	White 2141W
15	Toast 2142T
16	Knob-Infinite Control (4 Req)
17	6“ Burner Bowl (1 Req) All 2101 Models
18	8“ Surface Element (1 Req) All 2101 Mod.
19	8“ Burner Bowl (1 Req) All 2101 Models
20	WPL 331541
20	WPL 331542
20	WPL 331540
20	WPL 331543
20	Cup-Knob
20	WPL 329551
20	WPL 329550
20	WPL 329549
20	WPL 329548
21	Screw 10-16×7/16“
22	Left All 21010E & 21020E Models
22	Right All 21010E Models
22	WPL ARI9496A73
22	Left All 21011E,2E,21021E,2E Models
22	Right All 21021E & 21022E Models
22	Right All 21011E & 21012E Models
22	Right All 21020E Models
23	WPL ARI9497A28
23	21010E, 1E, 21020E, 1E Models
24	21010E, 1E, 21020E, 1E Models
24	WPL ARI9498A34
25	WPL 329007
25	WPL ARI9499A86
26	Baffle, Top Insulation
26	WPL ARI9500A91
28	Screw-10-32×1/2“
29	WPL ARI9501A56
29	WPL 328784
29	WPL 328783
30	WPL 320944
31	WPL 280157
32	WPL 78565
33	WPL 78593
34	WPL 331875
35	WPL 329015
36	WPL 327326
37	WPL 24710
38	WPL 328999
39	WPL 330186
39	WPL ARI9502A91
40	WPL 329000
41	WPL 329250
42	WPL 329013
43	WPL 329034
43	WPL ARI9503A23
44	Screw 10 – 32 x 1/4“
44	WPL ARI9504A37
45	WPL 329010
45	WPL ARI9505A26
46	WPL 329019
47	WP112432 Whirlpool Nut Assembly
48	WPL 329452
49	WPL 232365
50	Screw 6-20×3/8“
51	WPL 329016
52	WPL 329465
53	WPL 330117
54	WPL 109266
55	Nut (For Key 45)
56	Plate (For Key 45)
57	WPL 112062
58	WPL 112061
59	Screw 8ABx3/4“
60	WPL 330289
