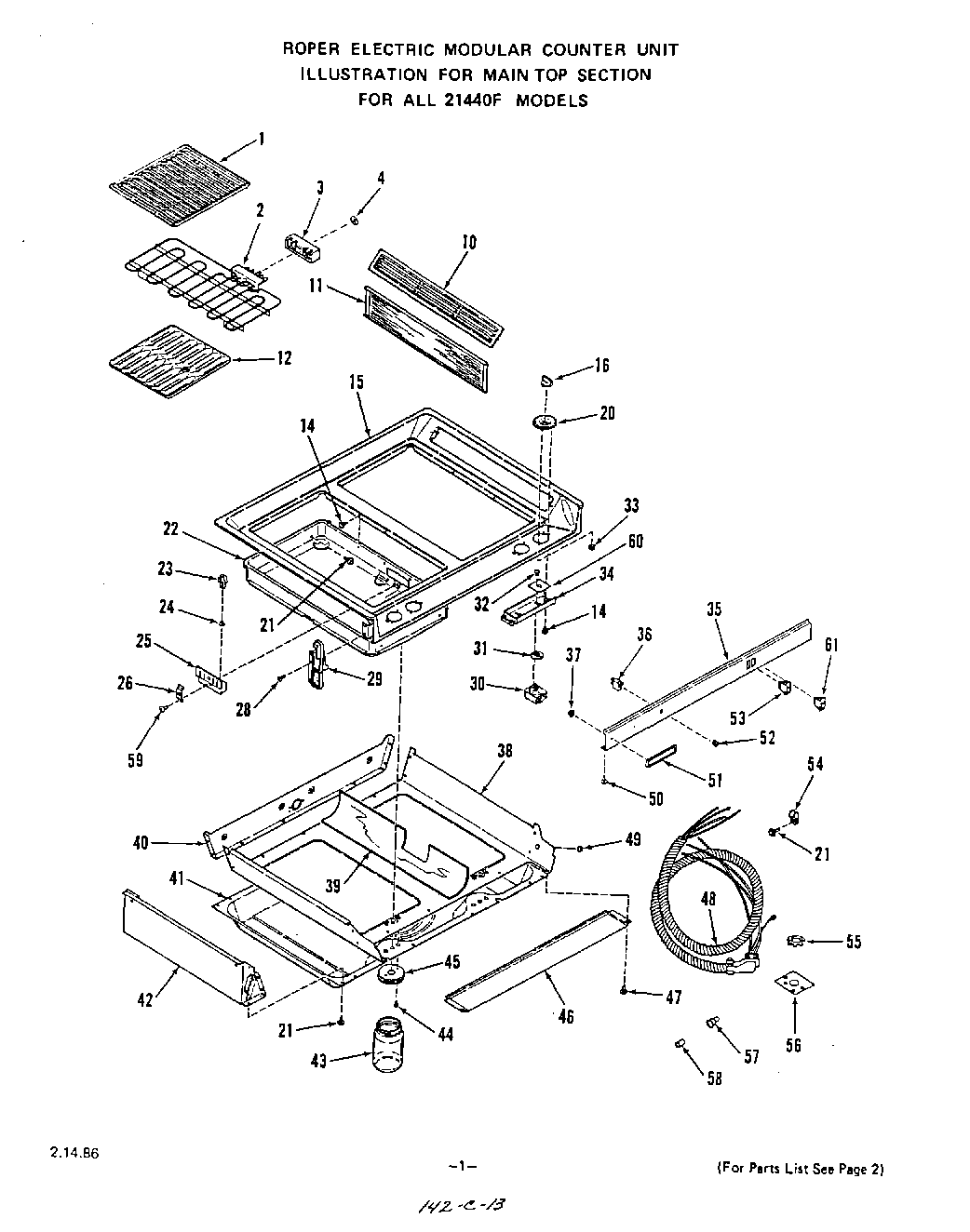

2144W0F 02 – MAIN TOP

Products

Position	Product
1	Grate-Grill (2 Req)
2	Element Grill
3	Terminal Block-Grill Element
4	Clip-Push On
10	Air Intake-Grill (Rt. or Lt.)
11	Air Filter (Rt. or Lt.)
12	21012E & 21022E Models
14	Screw 6-20×3/8“
15	Chrome 2142X
15	White 2142W
15	Almond 2142L
15	Platinum 2142P
15	Toast 2142T
15	Black 2142B
16	Knob-Infinite Control (4 Req)
20	WPL 331541
20	WPL 331542
20	WPL 331540
20	WPL 331543
21	Screw 10-16×7/16“
22	Right All 21021E & 21022E Models
22	Left All 21011E,2E,21021E,2E Models
23	21012E & 21022E Models
25	WPL 333732
26	Baffle, Top Insulation
28	Screw-10-32×1/2“
29	WPL 328784
29	WPL 328783
30	WPL 331619
31	WPL 280157
32	WPL 78565
34	WPL 331875
35	Front Panel
36	WPL 327326
37	WPL 78593
38	Housing-Bottom & Sides
39	WPL 330186
40	WPL 329000
41	WPL 329250
42	WPL 329013
43	WPL 329034
44	Screw 10 – 32 x 1/4“
45	WPL 329010
46	WPL 329019
47	WP112432 Whirlpool Nut Assembly
48	Harness Conduit
49	WPL 232365
50	Screw 6-20×3/8“
51	WPL 329016
52	WPL 329465
53	WPL 331038
54	WPL 109266
55	Nut (For Key 45)
56	WPL 333487
57	WPL 112062
58	WPL 112061
59	WPL 232183
60	WPL 330289
61	WPL 330117
