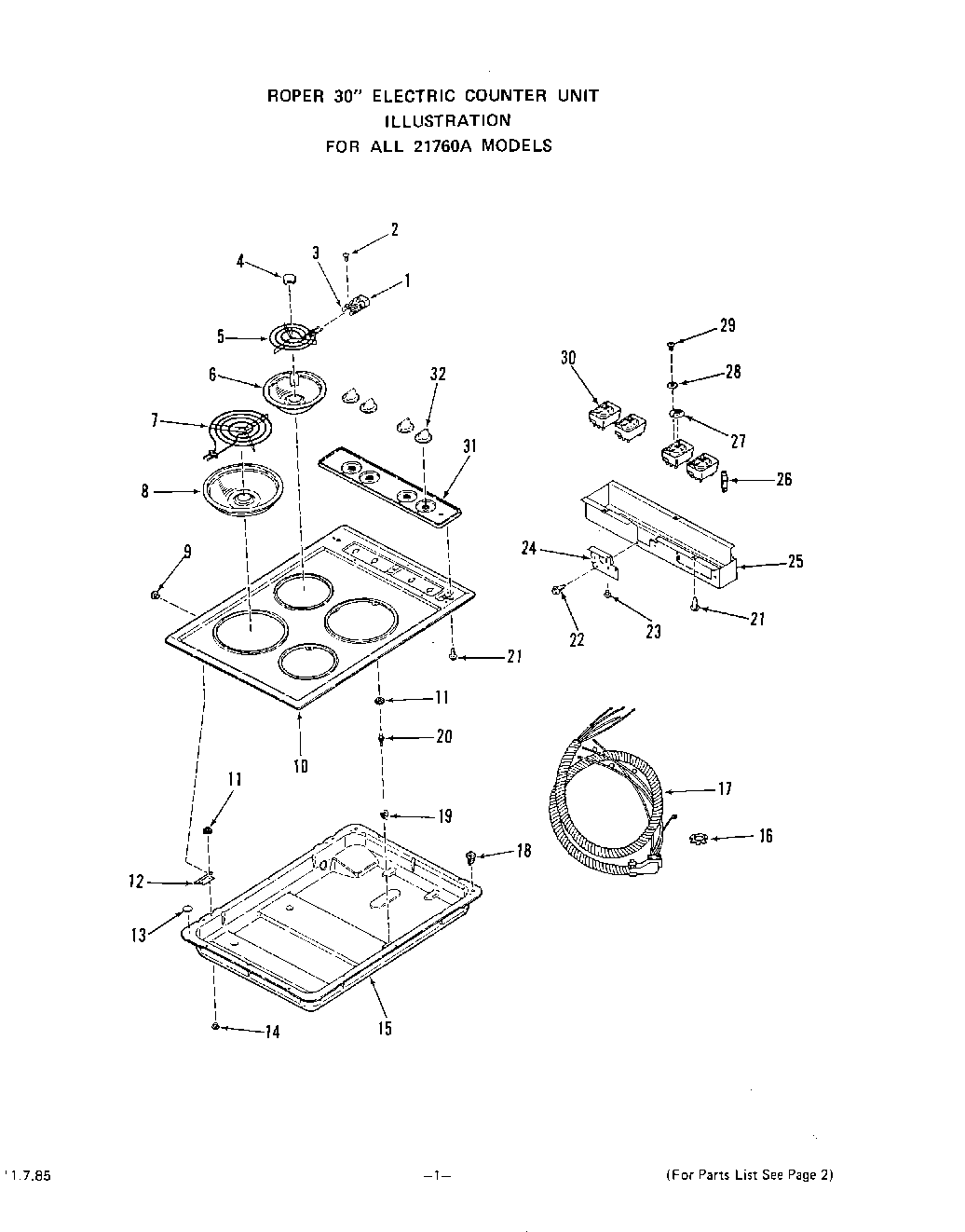

2176^0A 02 – SECTION

Products

Position	Product
1	Term. Block w/Leads-All 2101 Models
2	Screw 7-32×5/16“(2 Req) All 2101 Models
3	Bracket-Term. Block (2 Req) All 2101 Mod.
4	Medallion (2 Req) All 2101 Models
5	6“ Surface Element (1 Req) All 2101 Models
6	6“ Burner Bowl (1 Req) All 2101 Models
7	8“ Surface Element (1 Req) All 2101 Mod.
8	8“ Burner Bowl (1 Req) All 2101 Models
9	Screw 6-32×1/4“
10	Chrome
10	White
10	Platinum
10	Door, Inner
10	Avocado
10	Wheat
10	Coffee
10	Main Top
10	Almond
11	Keps Nut 8-32
12	Hinge-Main Top
13	Spacer (2 Req)
14	Screw 8-32×1/4“
15	Burner Box
16	Nut (For Key 45)
17	Conduit Harness Asm.
18	BURNER RECEPTACLE KIT
19	Catch-Main Top Strike (2 Required)
20	Strike-Main Top (2 Required)
21	Screw 6-32×1/4“
22	Screw 10 – 32 x 7/16“
23	Screw 10 – 32 x 1/4“
24	Conduit Mounting Plate
25	Wire Cover
26	Indicator Light
27	WPL 280157
28	Washer
29	Screw 8-32×1/4“
30	Left Front & Right Rear
30	Right Front & Left Rear
30	Infinite Switch
31	Control Panel
32	Infinite Knob
