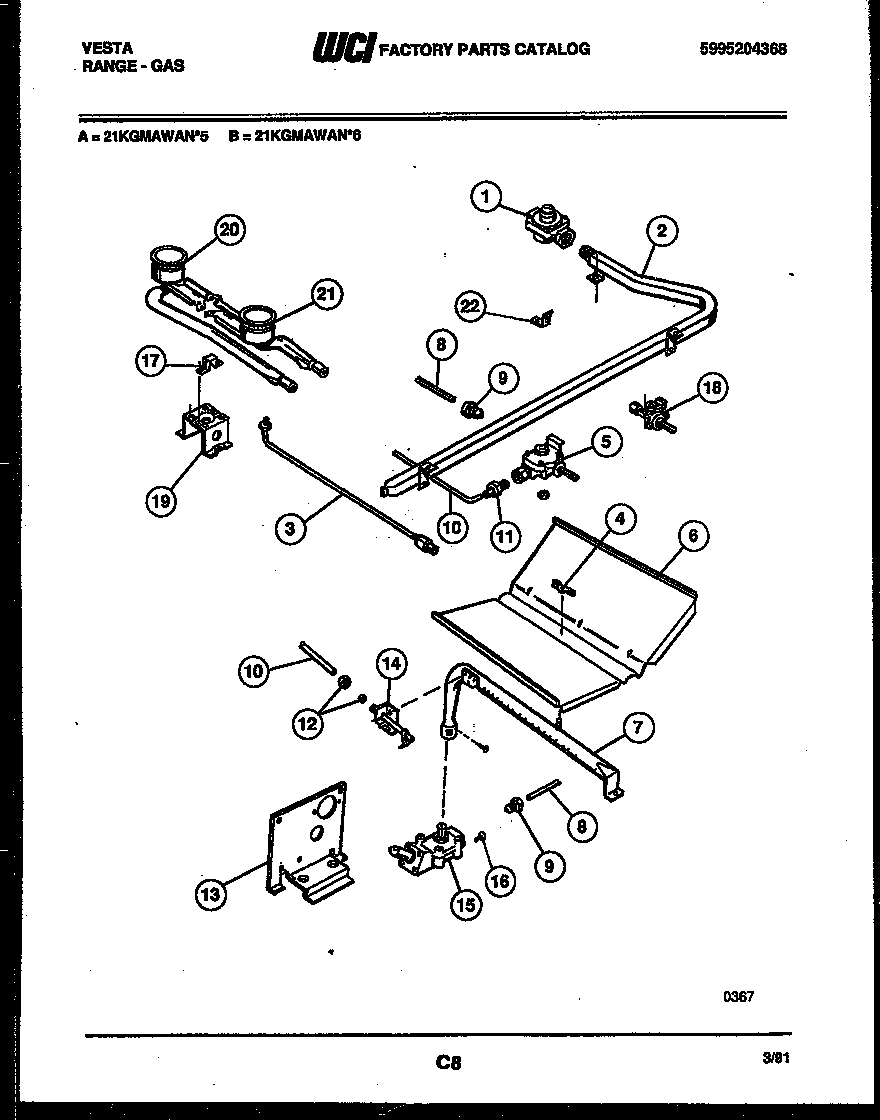

21KGMAWAN5 05 – BURNER, MANIFOLD AND GAS CONTROL

21KGMAWAN5 05 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

21KGMAWAN5 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
15308007974 Frigidaire Pressure Regulator
2MANIFOLD
3TUBE-PILOT
4NUT – WING
5WCI 5308013927
6BAFFLE-OVEN BURNER
7WCI 5308013855
8TUBE OVEN SUPPLY
9NUT-LOXIT (3/8)
10TUBE-OVEN PILOT
11NUT
12NUT & SLEEVE
13SUPPORT-OVEN SAFETY VALVE
14WCI 3205598
15WCI 5308013942
16WCI 3131067
17STRAP – PILOT SHIELD
18WCI 5303131057
19SUPPORT-TOP BURNER
20Burner,top ,rear
21BURNER-TOP FRONT
22WCI 5300009126
