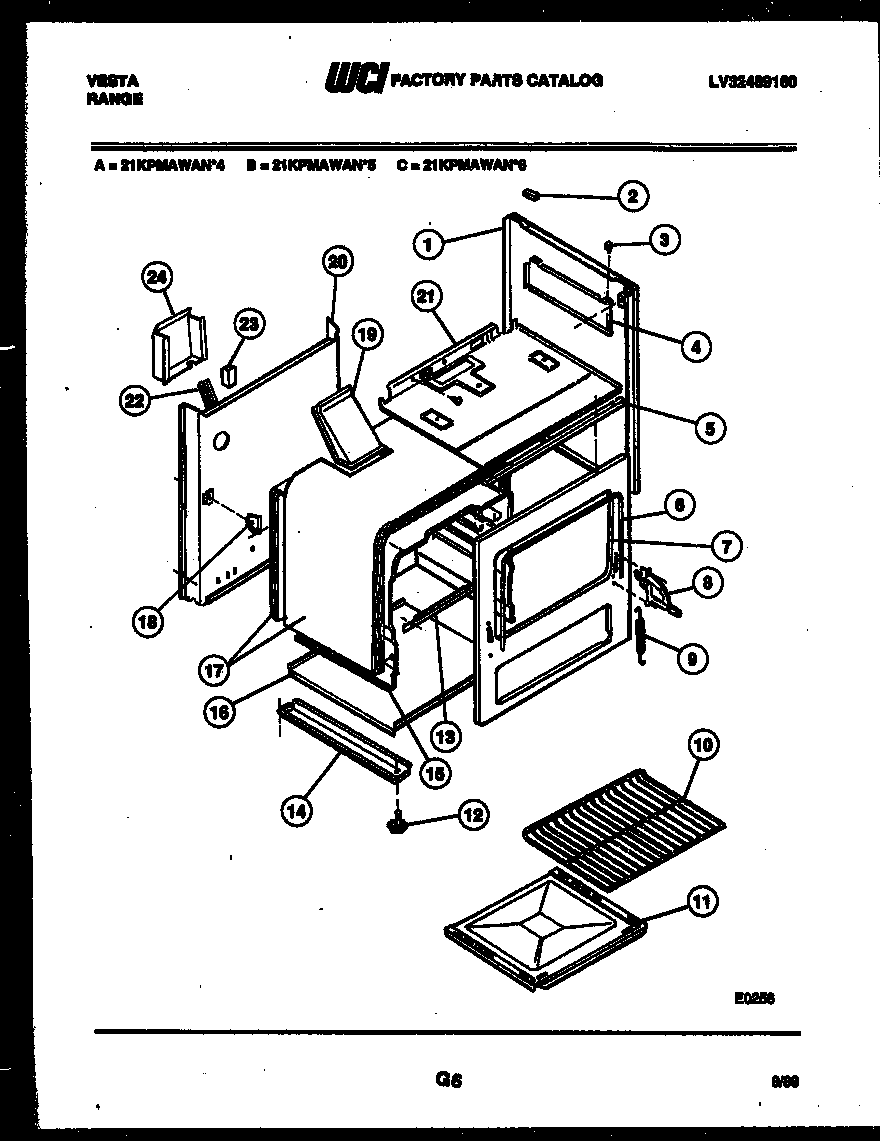

21KPMAWAN5 04 – BODY PARTS

21KPMAWAN5 04 – BODY PARTS

Written by

in

21KPMAWAN5 04 – BODY PARTS

Products

PositionProduct
1PANEL-BODYSIDE (WHITE) (2)
2GROMMET-MAINTOP
3GROMMET
4AWCI 3131054
4WCI 3131053
5SUPPORT-CONTROL PNL
6SEAL – OVEN DOOR
7FRAME-FRONT
8A318348801 Frigidaire Oven Left Side Door Hinge
8WCI 3204670
9SPRING DOOR (2)
10WCI 3016158
11OVEN-BOTTOM
12WCI 3051080
13SUPPORT-OVEN BOTTOM
14BASE RAIL
15BOVEN LINER-BACK
15OVEN LINER-SIDE RH
15OVEN LINER-SIDE LH
15AOVEN LINER-TOP
16MAIN BOTTOM
17INSULATION WRAPPER
17AWCI 3131044
18SUPPORT-REAR OVN (2)
19WCI 3017173
20WCI 3131045
21AANTI-TIP KIT
21BCLIP BACKSPLASH CORNER
21BURNER BOX
22CHANNEL – MAIN WIRE
235303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
24WCI 3131047
