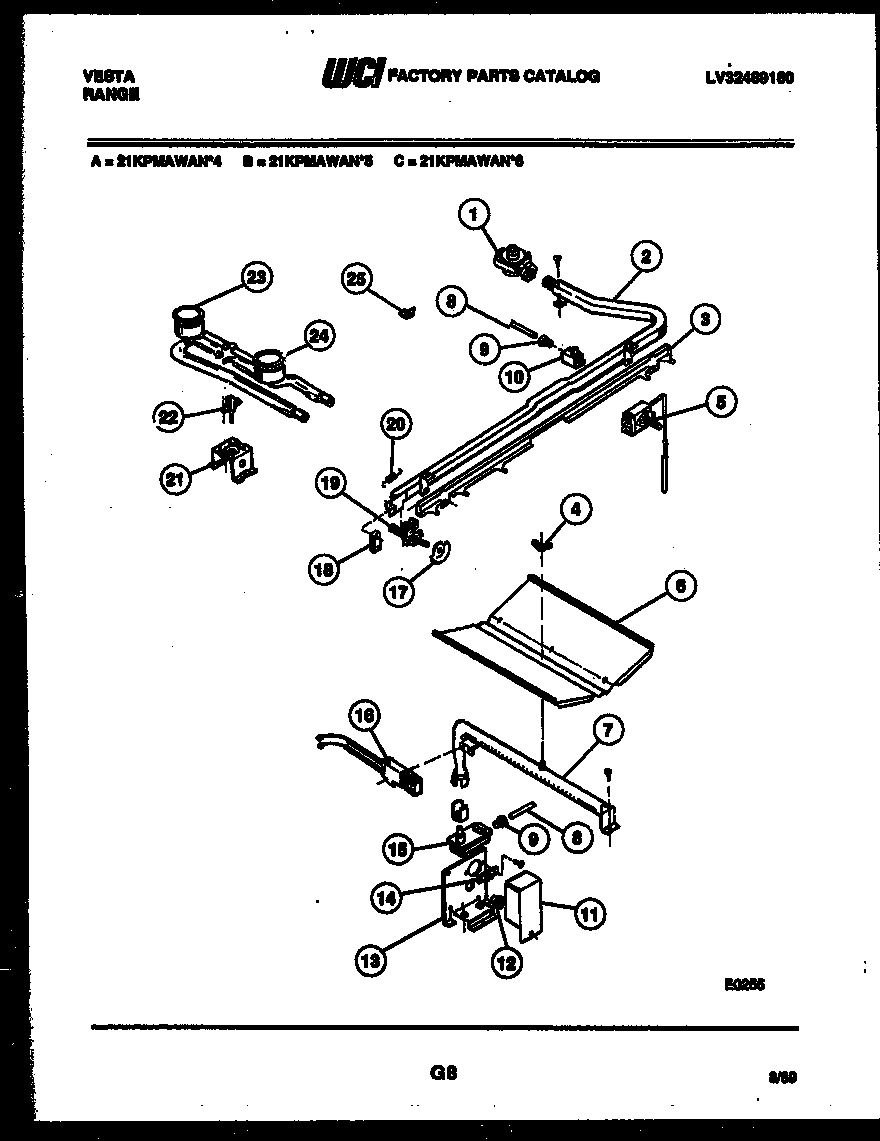

21KPMAWAN5 05 – BURNER PARTS

Products

Position	Product
1	5308007974 Frigidaire Pressure Regulator
2	WCI 3131081
3	SLIDE BAR
4	NUT - WING
5	THERMOSTAT
6	BAFFLE-OVEN BURNER
7	WCI 3202752
8	TUBE - 3/8 FEED
9	WCI 08008363
10	WCI 3131099
11	COVER - OVEN SAFETY VALVE
12	SNAP - BUSHING
13	SUPPORT-OVEN SAFETY VALVE
14	TERMINAL BLOCK
15	VALVE-SAFETY
16	5303935066 Frigidaire Oven Flat Igniter 17" Leads
17	WCI 08008002
18	MICRO - SWITCH
19	WCI 3131057
20	WCI 3131096
21	SUPPORT - TOP BURNER
22	IGNITER 36``
23	BURNER - TOP REAR
24	BURNER - TOP FRONT
25	CLIP-CAPILLARY (NON-ILLUSTRATED)
