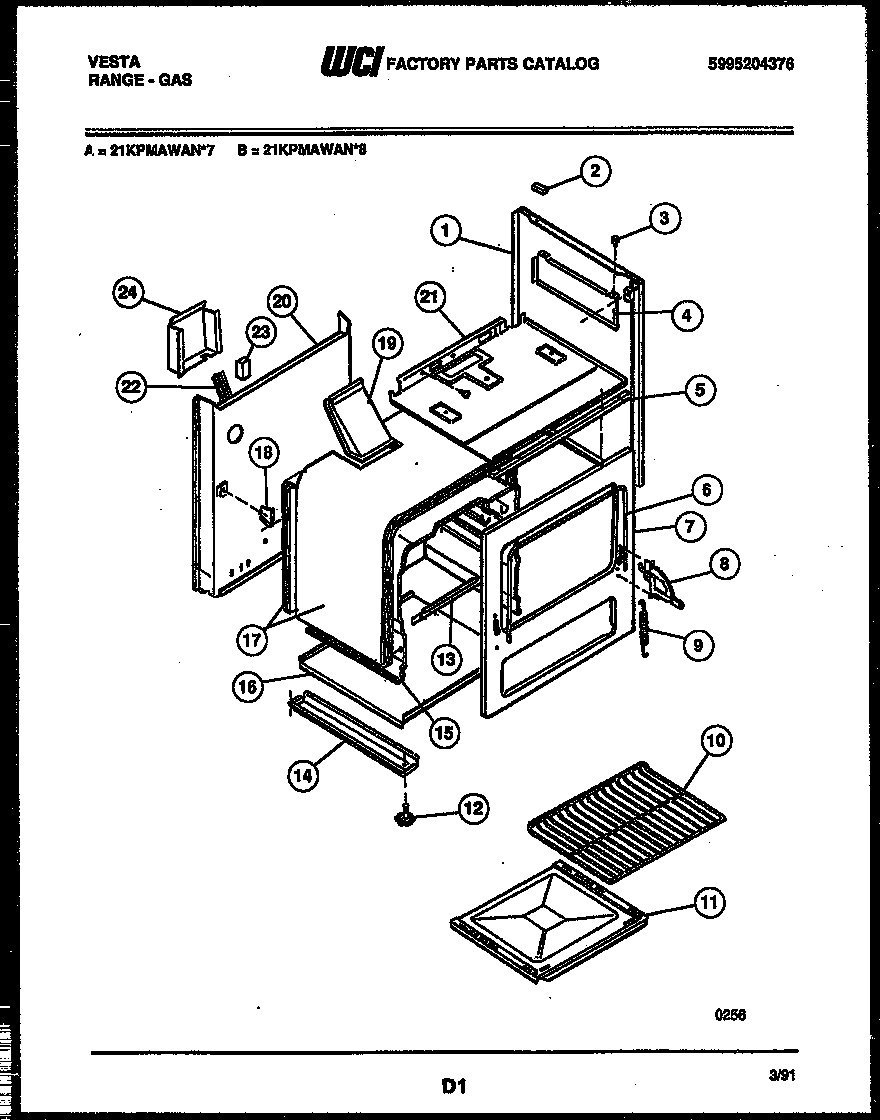

21KPMAWAN7-32 04 – BODY PARTS

21KPMAWAN7-32 04 – BODY PARTS

Written by

in

21KPMAWAN7-32 04 – BODY PARTS

Products

PositionProduct
*45480WCI 191S018F271
2GROMMET-MAINTOP
3GROMMET
4ASHIELD-BURNER BOX LH
4SHIELD-BURNER BOX RH
5SUPPORT-CONTROL PNL
6SEAL OVEN DOOR
7FRAME-FRONT
8HINGE ASSY-RH
8A318348801 Frigidaire Oven Left Side Door Hinge
9SPRING-OVEN DOOR
10WCI 3016158
11OVEN-BOTTOM
13SUPPORT-OVEN BOTTOM
14Rail,base ,RH
14ARAIL-BASE, LH
15OVEN LINER-SIDE RH
15AOVEN LINER-SIDE LH
15OVEN LINER-TOP
15AOVEN LINER-BACK
16MAIN BOTTOM
17AWCI 3131044
17INSULATION WRAPPER
18SUPPORT-REAR OVN (2)
19WCI 3017173
20WCI 3131045
21BURNER BOX
21BCLIP,BODYSIDE
21AANTI-TIP KIT
22CHANNEL – MAIN WIRE
235303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
24WCI 3131047
