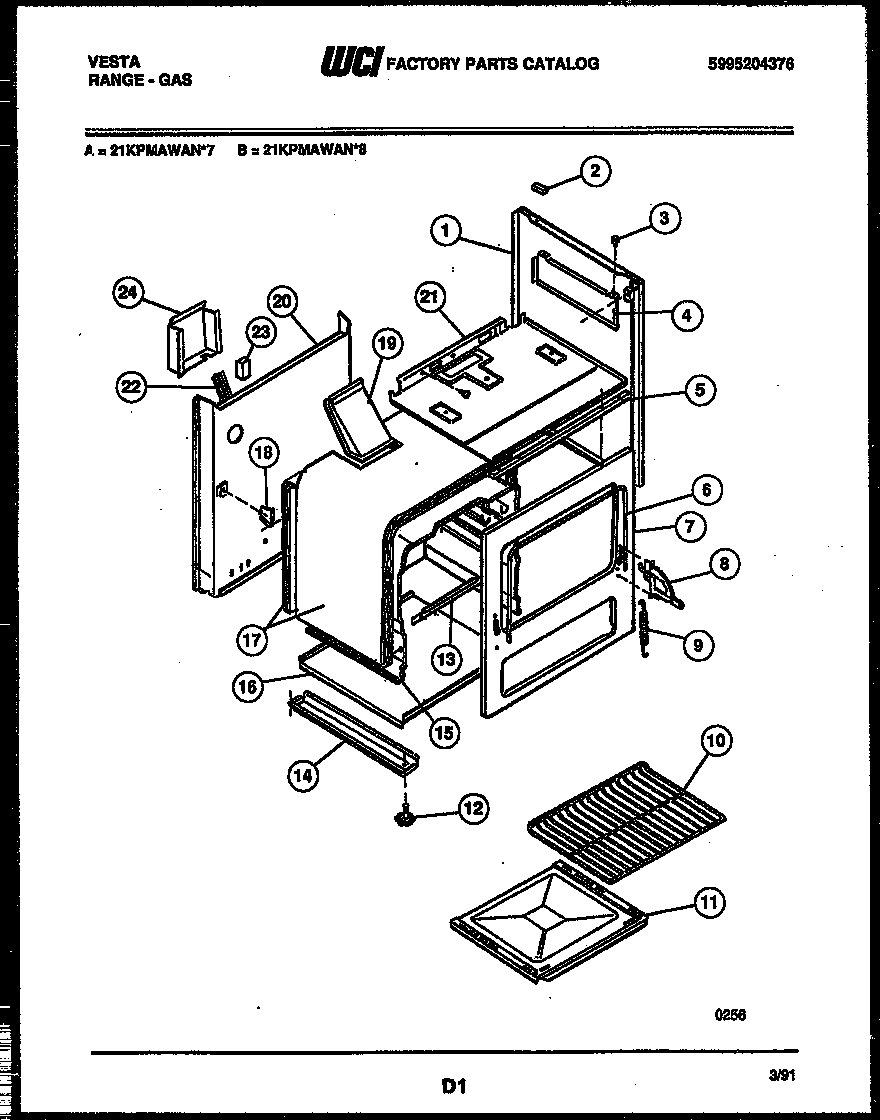

21KPMAWAN8 04 – BODY PARTS

Products

Position	Product
*45480	WCI 5303210892
*45480	WCI 191S018F271
*45480	WCI 5303210891
1	BODYSIDE PANEL-WHITE (2)
2	GROMMET-MAINTOP
3	GROMMET
4	SHIELD-BURNER BOX RH
4A	SHIELD-BURNER BOX LH
5	SUPPORT-CONTROL PNL
6	SEAL OVEN DOOR
7	FRAME-FRONT
8	HINGE ASSY-RH
8A	318348801 Frigidaire Oven Left Side Door Hinge
9	SPRING-OVEN DOOR
10	WCI 3016158
11	OVEN-BOTTOM
13	SUPPORT-OVEN BOTTOM
14A	RAIL-BASE, LH
14	Rail,base ,RH
15	OVEN LINER-SIDE RH
15A	OVEN LINER-SIDE LH
15	OVEN LINER-TOP
15A	OVEN LINER-BACK
16	MAIN BOTTOM
17A	WCI 3131044
17	INSULATION WRAPPER
18	SUPPORT-REAR OVN (2)
19	WCI 3017173
20	WCI 5303212609
21B	CLIP,BODYSIDE
21	BURNER BOX
21A	ANTI-TIP KIT
22	CHANNEL - MAIN WIRE
23	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
24	WCI 3131047
