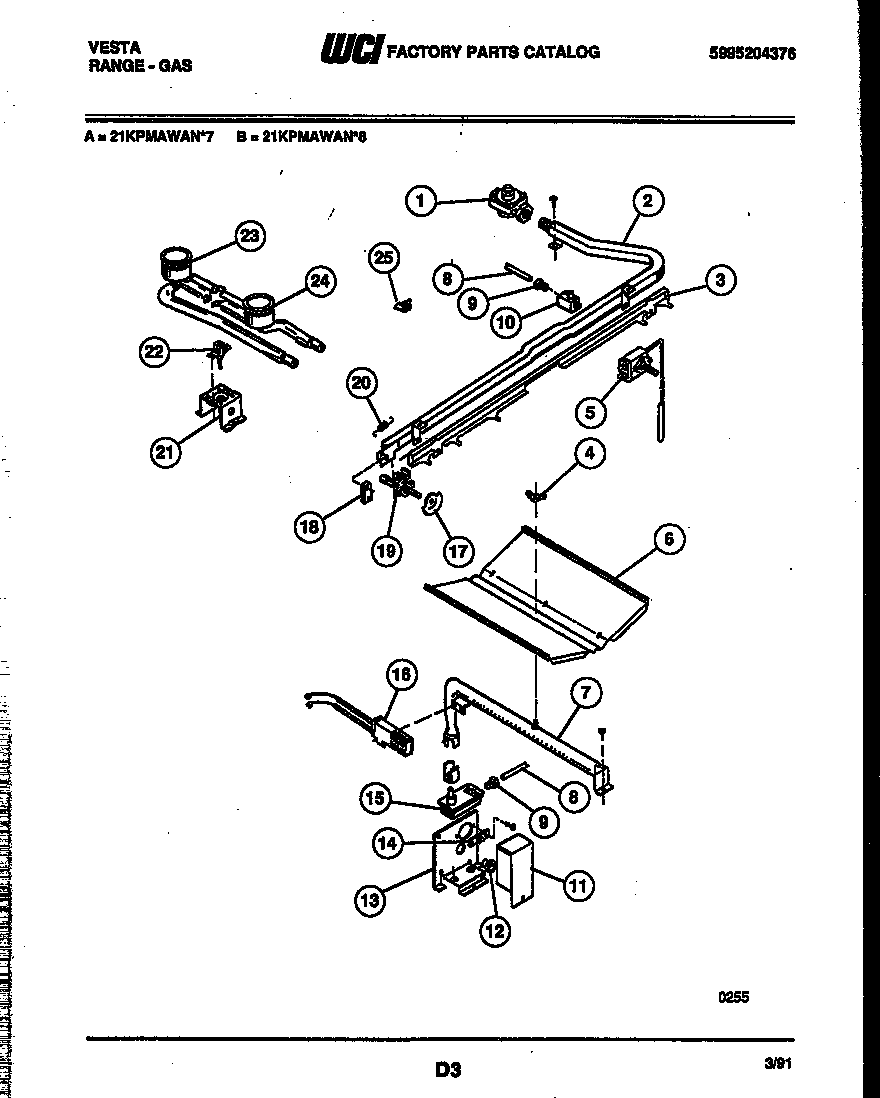

21KPMAWAN8 05 – BURNER, MANIFOLD AND GAS CONTROL

21KPMAWAN8 05 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

21KPMAWAN8 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
15308007974 Frigidaire Pressure Regulator
2WCI 3131081
3SLIDE BAR
4NUT – WING
5THERMOSTAT
6BAFFLE-OVEN BURNER
7WCI 5303202752
8TUBE-OVEN FEED
9NUT-LOXIT (3/8)
10WCI 5303131099
11COVER – OVEN SAFETY VALVE
12BUSHING-SNAP
13SUPPORT-OVEN SAFETY VALVE
14TERMINAL BLOCK
15WCI 5308009419
165303935066 Frigidaire Oven Flat Igniter 17" Leads
17CAM-VALVE
18WCI 5303131094
19WCI 5303131057
20SPRING – SLIDE BAR
21WCI 5303210471
22IGNITER-TOP BURNER 36“
23Burner,top ,rear
24BURNER-TOP FRONT
25WCI 5300009126
