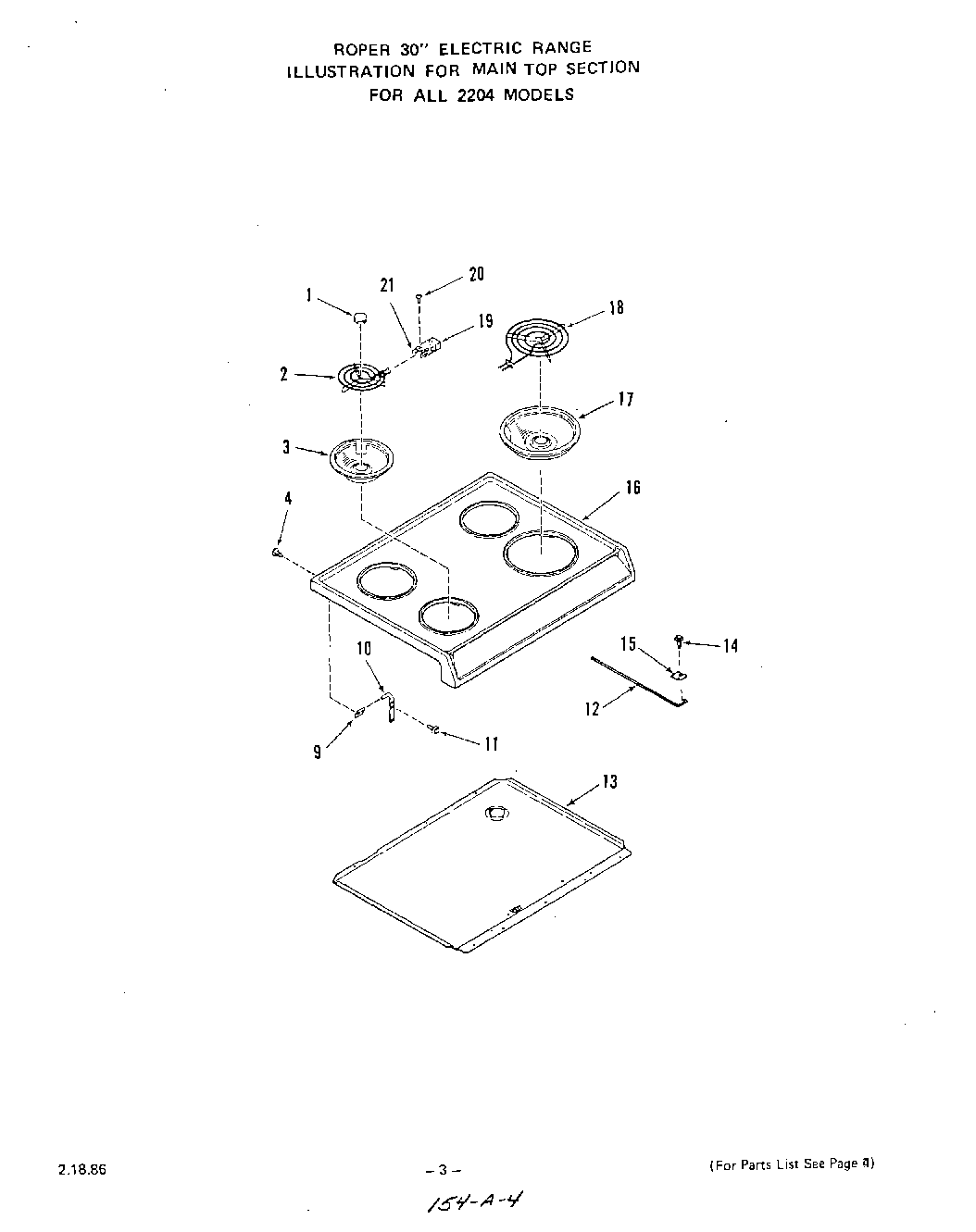

2204^2A 03 – MAIN TOP

Products

Position	Product
1	Medallion
2	6“ Surface Unit (Lt. Front & Rt. Rear)
3	6“ Burner Bowl (1 Req) All 2101 Models
4	Screw 10ABx1/2“
9	Bracket-Main Top Hinge (2 Req)
10	Left
10	Right
10	Hinge-Main Top
11	WPL 321162
12	Support Rod-Main Top
13	22140A, 2240A, 22340A, 22440A
13	2214, 2224, 2234, 2244 1A & 2A
13	Burner Box Bottom
14	Screw 10-16×7/16“
15	Clamp
16	White
16	Almond
16	Main Top
17	8“ Burner Bowl (1 Req) All 2101 Models
18	8“ Surface Unit (Rt. Front & Lt. Rear)
19	Term. Block w/Leads-All 2101 Models
20	Screw 7-32×5/16“(2 Req) All 2101 Models
21	Bracket-Term. Block (2 Req) All 2101 Mod.
