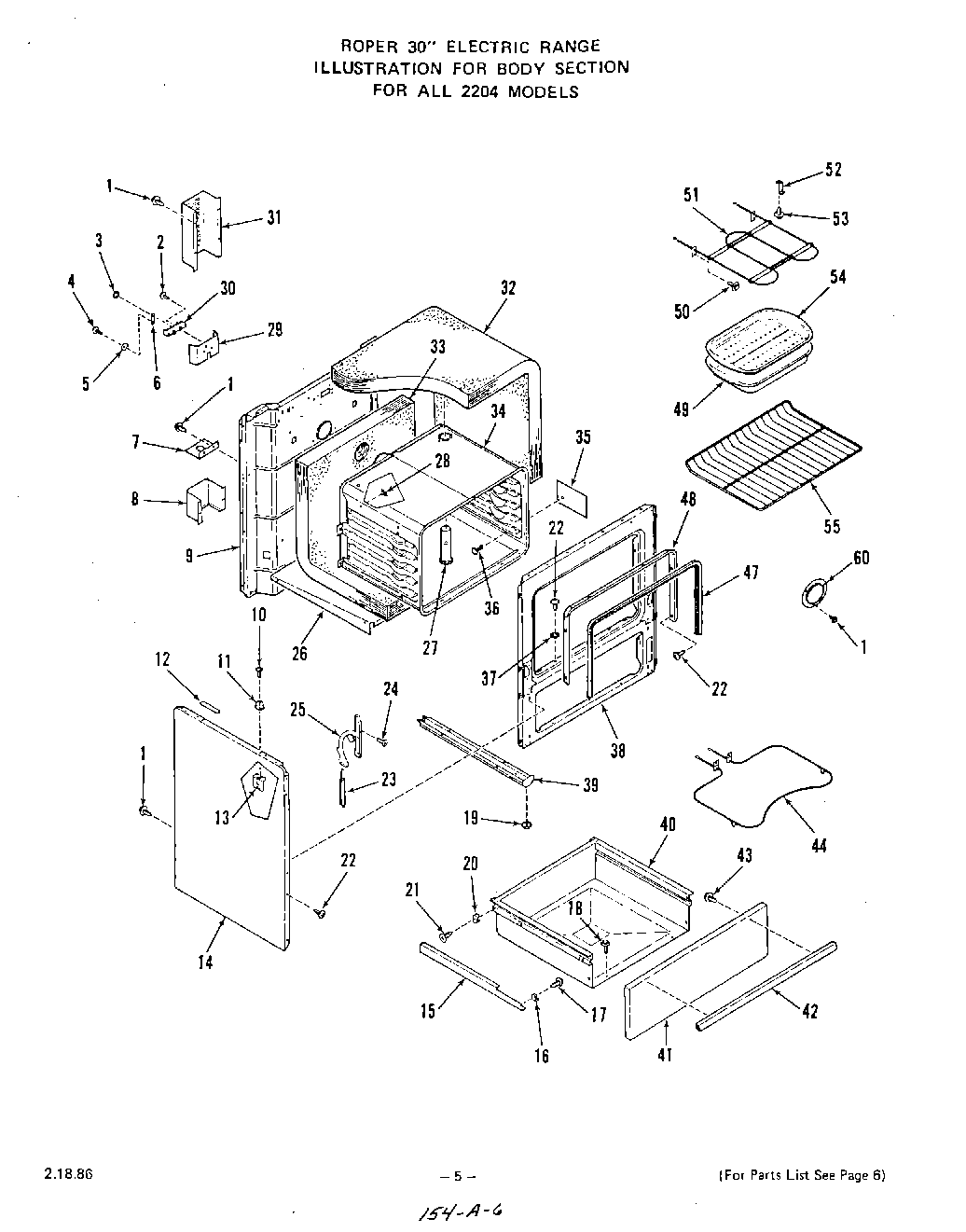

2214W2A 05 – BODY

Products

Position	Product
2	Screw 10-32×1“
3	Hex Nut 10-32
4	Screw 10-32×7/16“
5	Washer
6	Ground Strap
7	Range Service Mounting Plate
8	Wire Shield-Lower
9	Main Back
10	Screw 6-32×7/8“
11	Strike-Main Top (Lt. or Rt.)
12	Spacer-Main Top (2 Req)
13	Bracket-Body Side (Lt. or Rt.)
14	Body Side (Lt. or Rt.)
14	Almond
14	White
15	Support-Storage Drawer (Lt. or Rt.)
16	Front Slide Block-(Lt. or Rt.)
17	Screw 10-32×17/32“
19	Leg Leveler (4 Req)
20	Rear Slide Block – Lt. or Rt.
21	Screw 8 – 32 x 3/8“
22	Screw-10-32×1/2“
23	Spring-Oven Door (Lt. or Rt.)
24	Screw
25	Left
25	Hinge-Oven Door
25	Right
26	Retainer-Bottom Insulation
27	Vent Tube
28	Thermostat Bulb Clip (2 Required)
29	Insulation-Service Cord
30	Junction Block
31	Shield-Upper Wire
32	Insulation-Oven Top & Sides (1 Piece)
33	Insulation-Oven Back & Bottom (1 Piece)
34	All 22140A & 22240A Models
34	Oven Body
34	All 2214, 2224 1A & 2A Models
35	Drawer, Utility
36	Dart-Button Head (2 Required)
37	WPL 21067
38	Front Frame
38	All 22140A & 22240A Models
38	Front Frame
39	Base w/Levelers (Lt. or Rt.)
40	Storage Drawer
41	WPL 326073
41	Front Panel-Storage Drawer
41	WPL 326077
42	Handle-Broiler Door
43	WPL 295850
44	WPL 325883
47	WPL 326293
48	main chassis (almond)
49	WPL ARI9765A34
49	WPL 293098
49	WPL 331592
50	WPL 325666
51	WPL 326360
52	Support-Broiler Element
53	Screw 10-16×7/16“
54	WPL ARI9766A26
54	WPL 326297
54	WPL 293099
55	WPL 326068
60	WPL 326935
