2224^0A 05 – BODY

Products

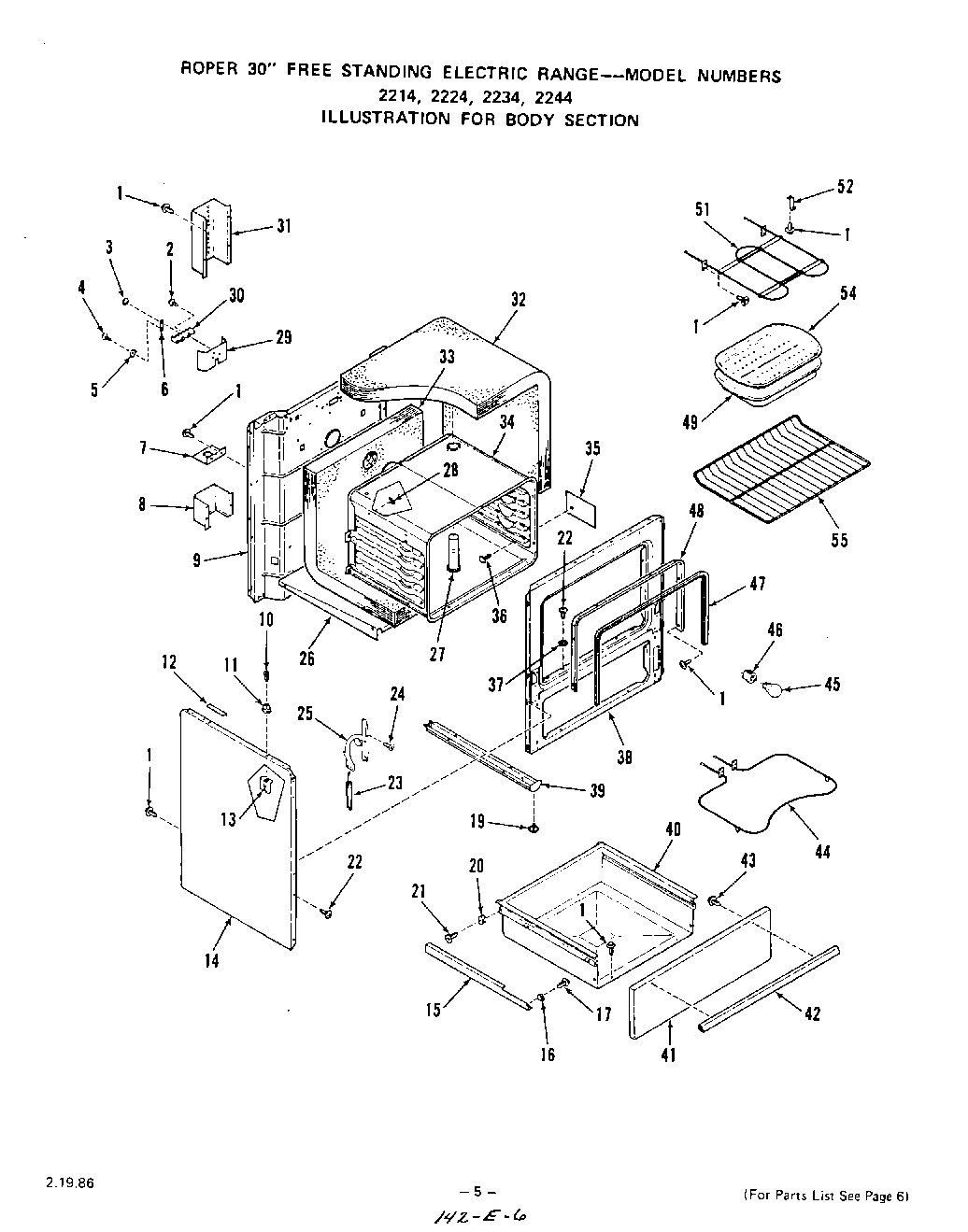

Position	Product
1	WP112432 Whirlpool Nut Assembly
2	Screw 10-32×1“
3	Hex Nut 10-32
4	Screw 10-32×7/16“
5	Washer
6	Ground Strap
7	Range Service Mounting Plate
8	Wire Shield-Lower
9	Main Back
10	Screw 6-32×7/8“
11	Strike-Main Top (Lt. or Rt.)
12	Spacer-Main Top (2 Req)
13	Bracket-Body Side (Lt. or Rt.)
14	White
14	Golden Wheat
14	Body Side (Lt. or Rt.)
14	Platinum
14	Toast
14	Almond
14	Avocado
14	Coffee
15	Support-Storage Drawer (Lt. or Rt.)
16	Front Slide Block-(Lt. or Rt.)
17	Screw 10-32×17/32“
19	Leg Leveler (4 Req)
20	Rear Slide Block – Lt. or Rt.
21	Screw 8 – 32 x 3/8“
22	Screw-10-32×1/2“
23	spring-oven door (lt. or rt.)
24	Screw 10-32 x 5/8“
25	Hinge-Oven Door
25	Right
25	Left
26	Retainer-Bottom Insulation
27	Vent Tube
28	Thermostat Bulb Clip (2 Required)
29	Insulation-Service Cord
30	Junction Block
31	Shield-Upper Wire
32	Insulation-Oven Top & Sides (1 Piece)
33	Insulation-Oven Back & Bottom (1 Piece)
34	All 22140A & 22240A Models
34	All 2234 & 2244 Models
34	All 2214, 2224 1A & 2A Models
34	Oven Body
35	Insulation Retainer-Rt. or Lt.
36	Dart-Button Head (2 Required)
37	WPL 21067
38	WPL 331584
38	WPL ARI9786A49
38	WPL 326042
38	All 22140A & 22240A Models
39	Base w/Levelers (Lt. or Rt.)
40	Storage Drawer
41	WPL 328355
41	WPL 326073
41	WPL 326074
41	WPL 326075
41	WPL ARI9787A97
41	WPL 326077
41	WPL 328347
41	WPL 326076
42	Handle-Broiler Door
43	WPL 295850
44	WPL 325883
45	Oven Lamp Bulb
46	Holder-Oven Light Bulb
47	WPL 326047
48	main chassis (almond)
49	WPL ARI9788A49
49	WPL 331592
49	WPL 293098
50	Screw 10-16×7/16“
51	WPL 326360
52	Support-Broiler Element
53	Screw 10 – 32 x 17/32“
54	WPL 326297
54	WPL ARI9789A94
54	WPL 293099
55	WPL 326068
57	WPL 331867
57	WPL ARI9790A70
57	WPL 319163
