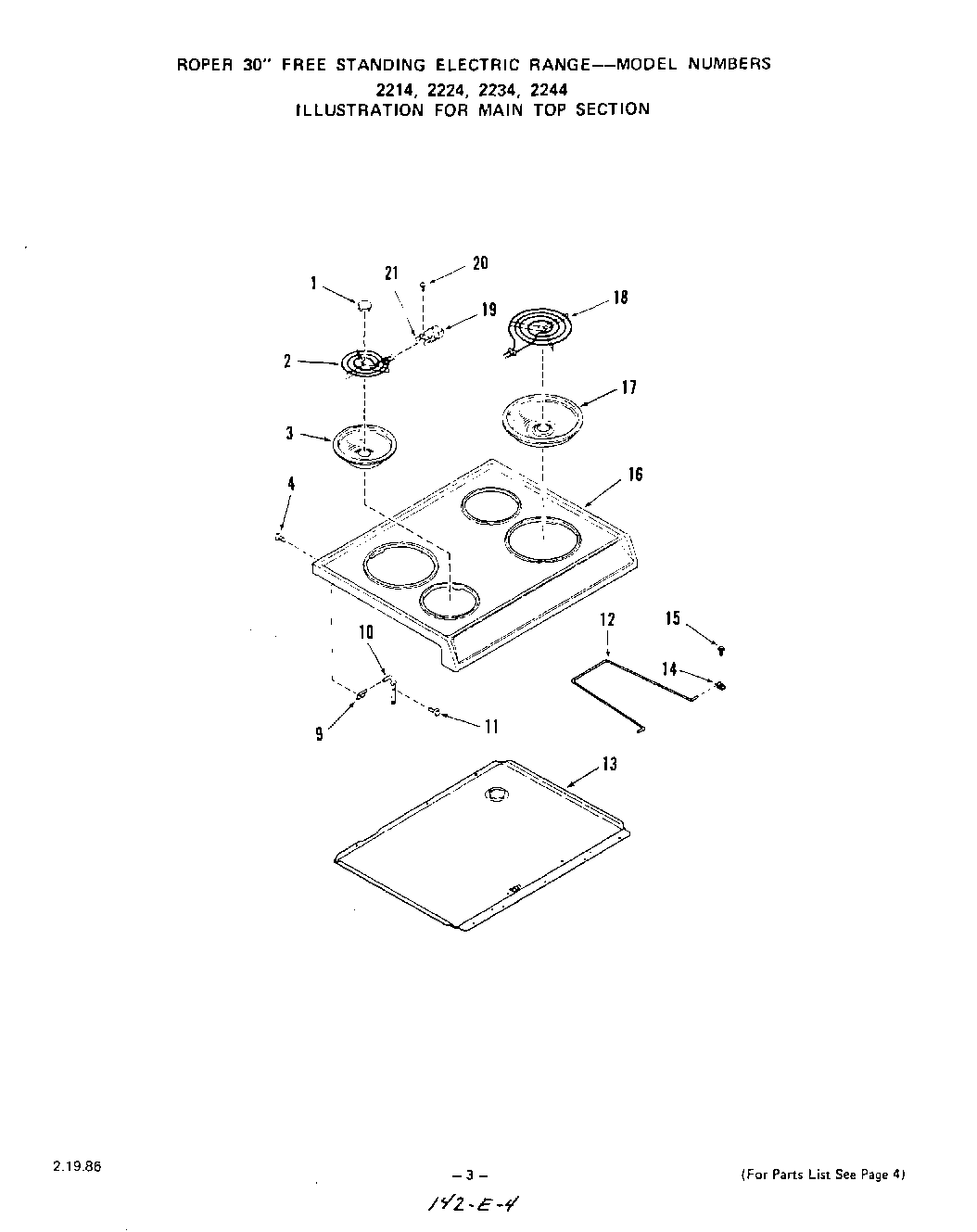

2224W1A 03 – MAIN TOP

Products

Position	Product
1	Medallion (2 Req) All 2101 Models
2	6“ Surface Element (1 Req) All 2101 Models
2	6“ Surface Unit (Lt. Front & Rt. Rear)
2	6“ Surface Element-Lt. Front & Rt. Rear
3	6“ Burner Bowl (1 Req) All 2101 Models
4	Screw 10ABx1/2“
9	Bracket-Main Top Hinge (2 Req)
10	Right
10	Hinge-Main Top
10	Left
11	WPL 321162
12	Support Rod-Main Top
13	22140A, 2240A, 22340A, 22440A
13	Bottom-Burner Box
13	2214, 2224, 2234, 2244 1A & 2A
14	Clip
15	Screw 10-16×7/16“
16	Almond
16	Main Top
16	Platinum
16	Toast
16	Golden Wheat
16	White
16	Avocado
16	Coffee
17	8“ Burner Bowl (1 Req) All 2101 Models
18	8“ Surface Unit (Rt. Front & Lt. Rear)
18	8“ Surface Element (1 Req) All 2101 Mod.
18	8“ Surface Element-Rt. Front & Lt. Rear
19	Term. Block w/Leads-All 2101 Models
20	Screw 7-32×5/16“(2 Req) All 2101 Models
21	Bracket-Term. Block (2 Req) All 2101 Mod.
