2224W1A 07 – SECTION

Products

Position	Product
	xInstallation Guide
	xOperating Guide
	xRepair Parts List
	xWire Harness
	Controls
	Thermostat

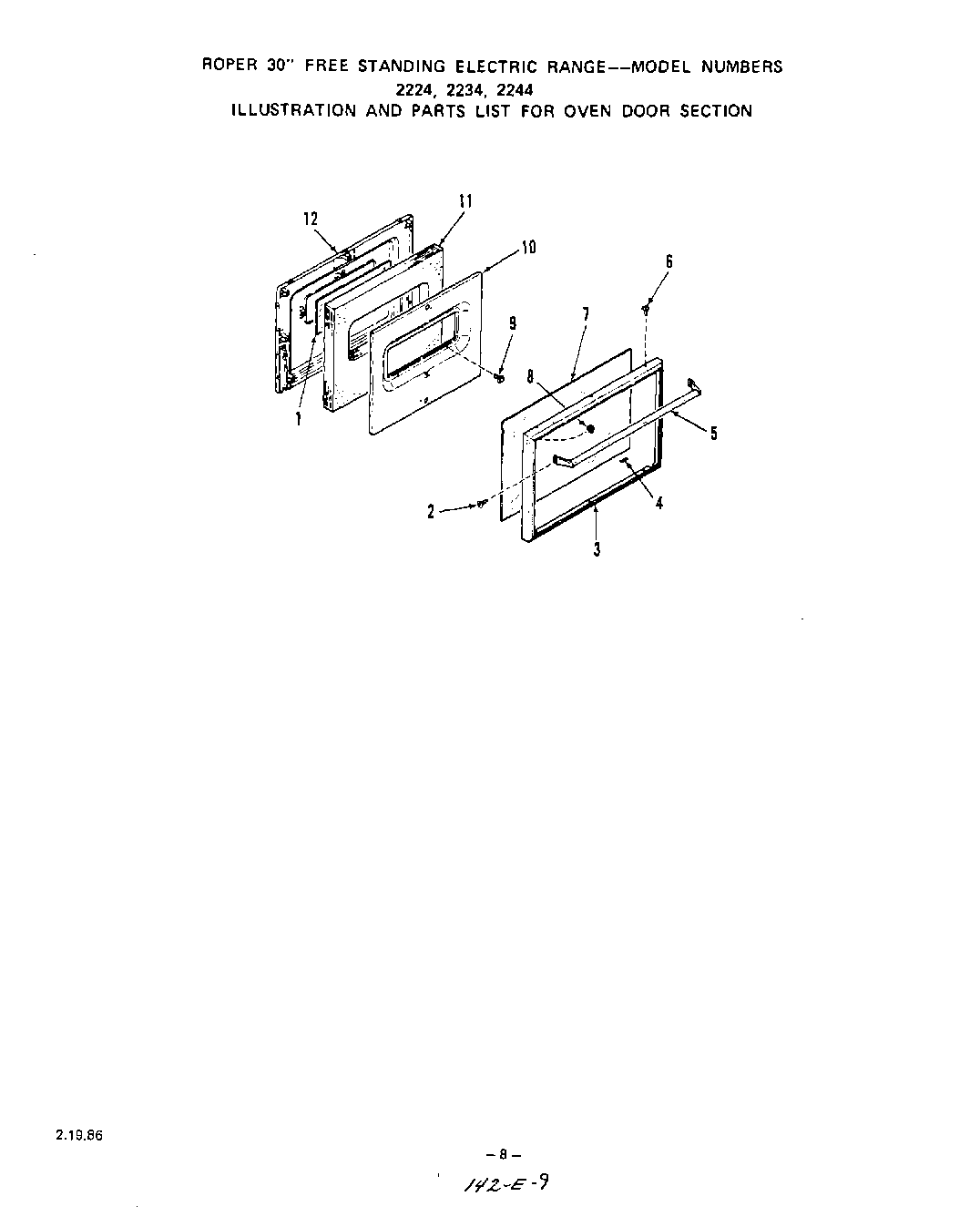

1	Glass-Inner Oven Door
2	Screw 8-32 x 1/2“
3	frame-oven door
4	Cushion-Door Glass
5	Handle-Oven Door
6	Screw-10-32×1/2“
7	outer glass-oven door
8	Keps Nut 8-32
9	Screw 10 – 32×3/8“
10	Retainer-Oven Door Insulation
11	Insulation
12	Electric Use & Care Guide
12	All 2214, 2234 2A Models
12	All 2214, 2234 2A Models
12	Main Top
12	Except 2214, 2234 2A Models
12	Except 2214, 2234 2A Models
12	All 2224 & 2244 Models
12	All 2214 & 2234 Models
12	All 22240A Models
12	Lining-Oven Door (14451A Models)
12	Lining-Oven Door
12	Lining-Oven Door
