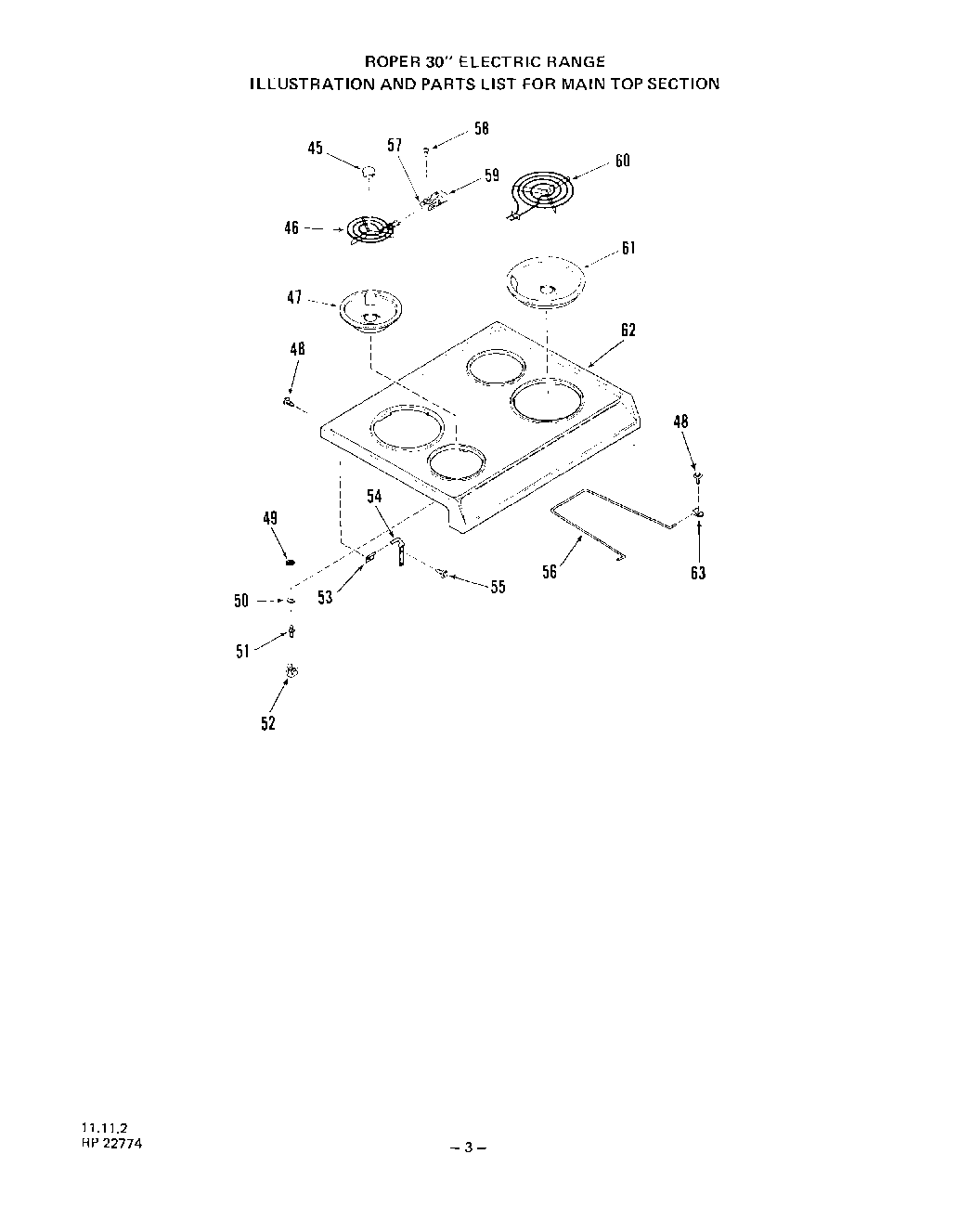

2233W0A 03 – BODY

Products

Position	Product
45	Medallion (2 Req) All 2101 Models
46	6“ Surface Element (Lt. Frt. & Rt. Rr.)
47	6“ Burner Bowl (1 Req) All 2101 Models
48	Screw 10-32×7/16“
49	Keps Nut 8-32
50	Washer
51	Strike-Main Top (2 Required)
52	Catch-Strike
53	Bracket-Main Top Hinge (2 Req)
54	Left
54	Right
55	WPL 321162
56	Support Rod-Main Top
57	Bracket-Term. Block (2 Req) All 2101 Mod.
58	Screw 7-32×5/16“(2 Req) All 2101 Models
59	Term. Block w/Leads-All 2101 Models
60	8“ Surface Element (Rt. Frt. & Lt. Rr.)
61	8“ Burner Bowl (1 Req) All 2101 Models
62	White
62	Almond
62	Main Top (Coffee)
62	Main Top (Avocado)
62	Main Top (Golden Wheat)
63	Clip
