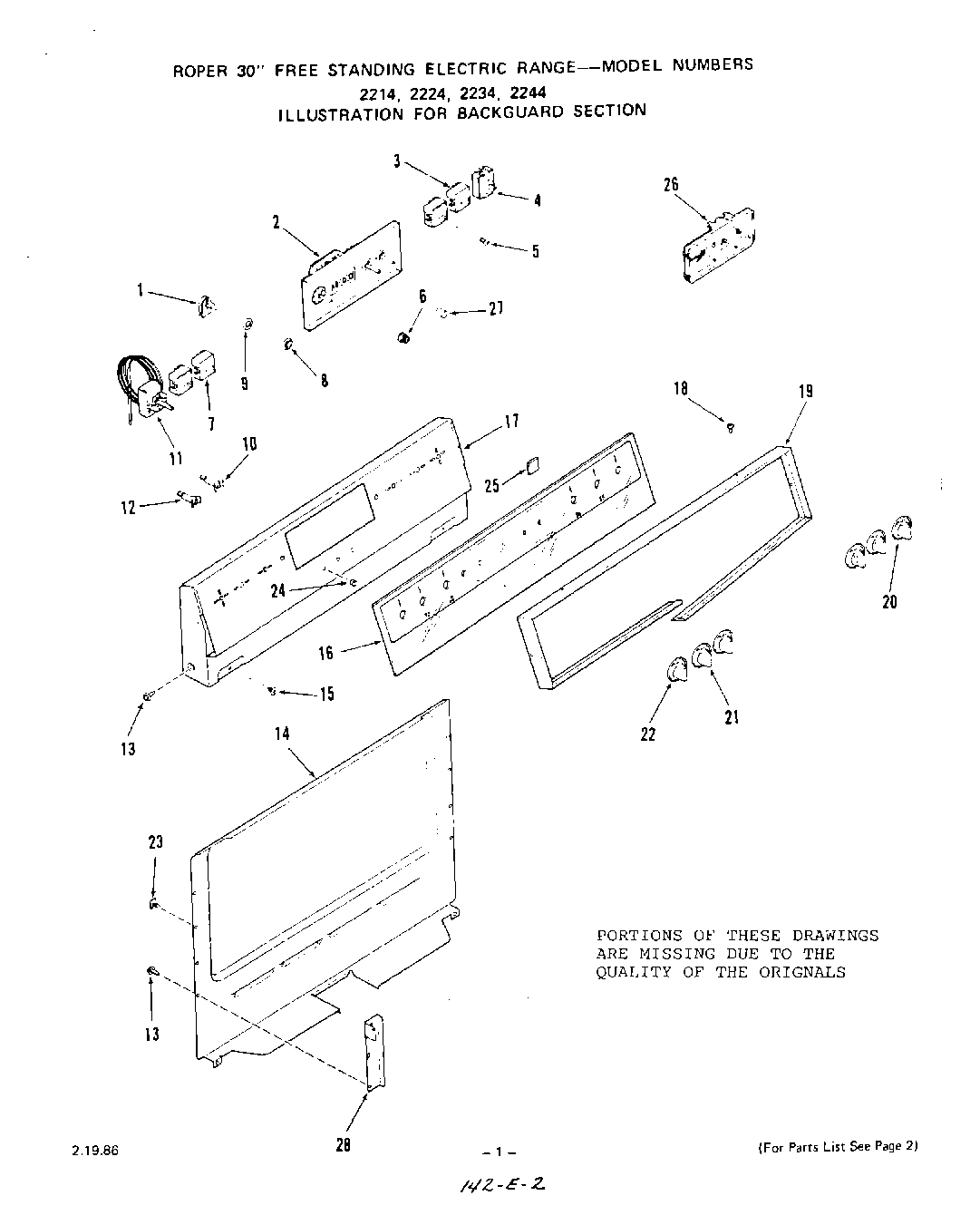

2234^0A 02 – BACKGUARD

2234^0A 02 – BACKGUARD

Written by

in

2234^0A 02 – BACKGUARD

Products

PositionProduct
1Push Switch-Oven Light
2Clock w/1 Hr. Timer
2All 2224 & 2244 Models
3Infinite Control
3Right Front & Left Rear
3Left Front & Right Rear
3Infinite Control (Right)
3Infinite Control (Left)
4Selector Switch
5WPL 78565
6Knob-Clock
6Knob-Clock
7WPL 320944
8Nut-Trim 3/8-27
9Lock Nut
10Indicator Light
112214, 2234, 2244 2A Models
11Thermostat
112214, 2224, 2234, 2244 0A & 1A Models
12Indicator Light-Oven
13Screw 10-16×7/16“
14Cover-Backguard Wire
15Screw 10ABx1/2“
16All 2214 & 2234 Models
16Glass-Backguard
16All 2224 & 2244 Models
17Coffee 2214C
17White 2214W &2234W
17White 2224W & 2244W
17Golden Wheat 2214H & 2234H
17Crosstie-Backguard
17Avocado 2214A
17Almond 2214L & 2234L
17Almond 2224L & 2244L
17Toast 2234T & 2244T
17Golden Wheat 2224H & 2244H
17Platinum 2234P & 2244P
18Screw 6-20×3/8“
19Bezel-Backguard
20Knob-Selector Switch
21Knob-Infinite Control
22Knob-Thermostat
23Clip
24Lens-Indicator Light
25Space
26WPL ARI9895A18
26WPL 322305
26WPL 333049
27WPL ARI9896A35
27Knob-Clock (Start & Stop Time)
28WPL ARI9897A40
28Support-Backguard (Left)
28Support-Backguard (Right)
