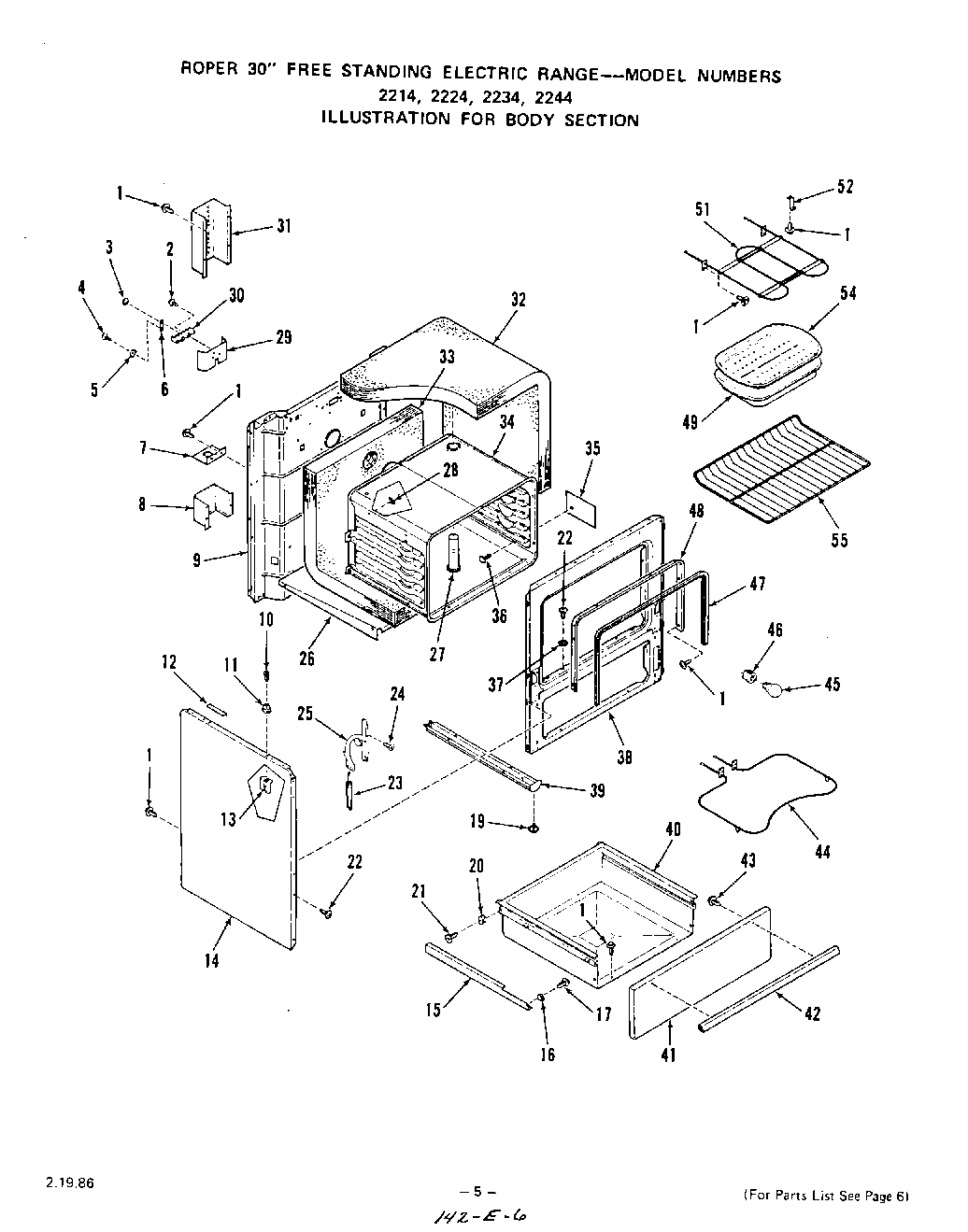

2244^0A 05 – BODY

Products

PositionProduct
1WP112432 Whirlpool Nut Assembly
2Screw 10-32×1“
3Hex Nut 10-32
4Screw 10-32×7/16“
5Washer
6Ground Strap
7Range Service Mounting Plate
8Wire Shield-Lower
9Main Back
10Screw 6-32×7/8“
11Strike-Main Top (Lt. or Rt.)
12Spacer-Main Top (2 Req)
13Bracket-Body Side (Lt. or Rt.)
14Toast
14Platinum
14Golden Wheat
14White
14Almond
14Body Side (Lt. or Rt.)
14Coffee
14Avocado
15Support-Storage Drawer (Lt. or Rt.)
16Front Slide Block-(Lt. or Rt.)
17Screw 10-32×17/32“
19Leg Leveler (4 Req)
20Rear Slide Block – Lt. or Rt.
21Screw 8 – 32 x 3/8“
22Screw-10-32×1/2“
23spring-oven door (lt. or rt.)
24Screw 10-32 x 5/8“
25Right
25Hinge-Oven Door
25Left
26Retainer-Bottom Insulation
27Vent Tube
28Thermostat Bulb Clip (2 Required)
29Insulation-Service Cord
30Junction Block
31Shield-Upper Wire
32Insulation-Oven Top & Sides (1 Piece)
33Insulation-Oven Back & Bottom (1 Piece)
34All 22140A & 22240A Models
34Oven Body
34All 2214, 2224 1A & 2A Models
34All 2234 & 2244 Models
35Insulation Retainer-Rt. or Lt.
36Dart-Button Head (2 Required)
37WPL 21067
38WPL 331584
38WPL ARI10047A2
38WPL 326042
38All 22140A & 22240A Models
39Base w/Levelers (Lt. or Rt.)
40Storage Drawer
41WPL 328355
41WPL 326073
41WPL 326074
41WPL 326075
41WPL ARI10048A5
41WPL 326077
41WPL 328347
41WPL 326076
42Handle-Broiler Door
43WPL 295850
44WPL 325883
45Oven Lamp Bulb
46Holder-Oven Light Bulb
47WPL 326047
48main chassis (almond)
49WPL ARI10049A1
49WPL 331592
49WPL 293098
50Screw 10-16×7/16“
51WPL 326360
52Support-Broiler Element
53Screw 10 – 32 x 17/32“
54WPL 326297
54WPL 293099
54WPL ARI10050A7
55WPL 326068
57WPL 331867
57WPL ARI10051A9
57WPL 319163
