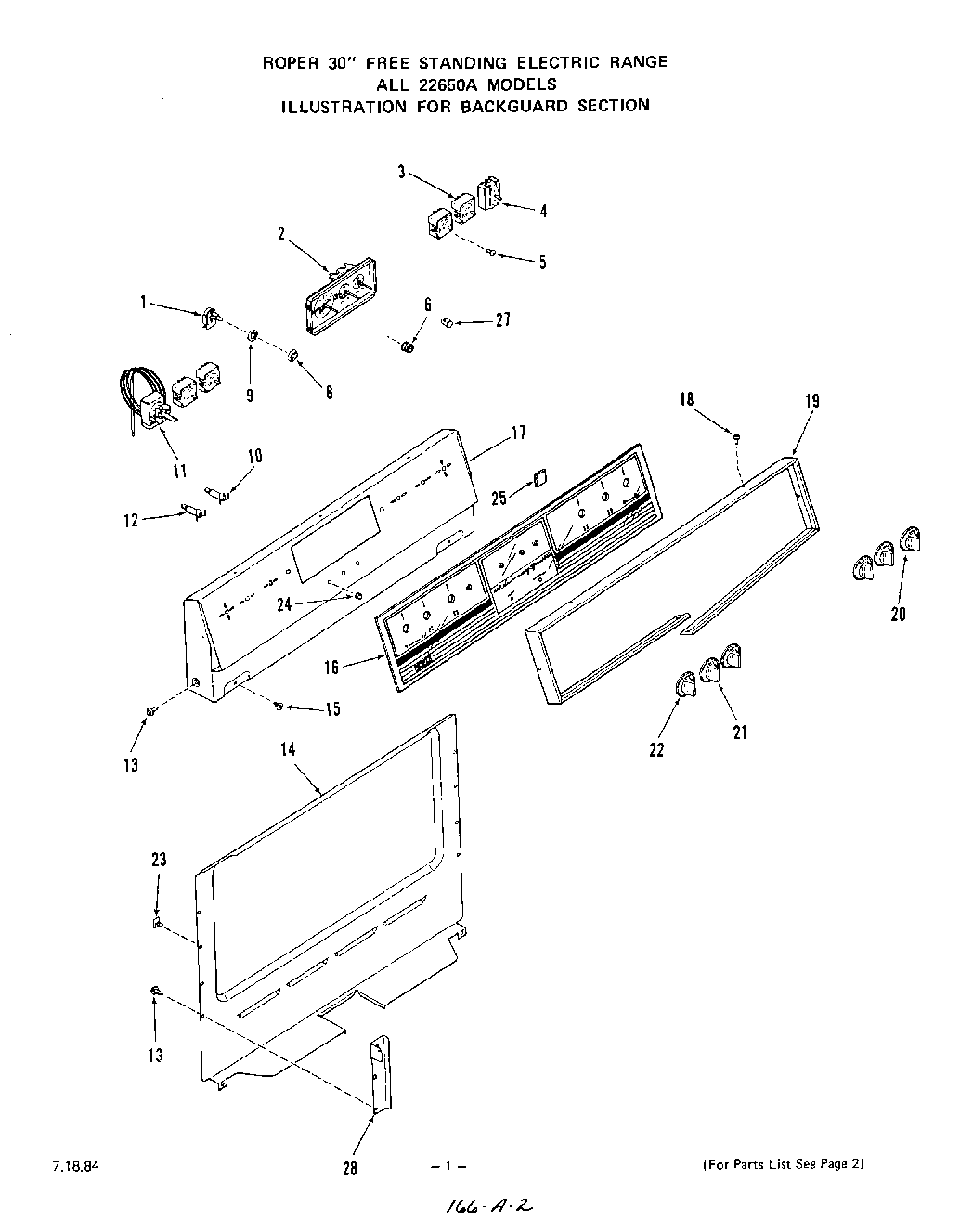

2265W0A 02 – BACKGUARD

Products

Position	Product
1	Push Switch-Oven Light
2	WPL 322305
3	WPL 320944
4	Selector Switch
5	WPL 78565
6	Knob-Clock
8	Nut-Trim 3/8-27
9	Lock Nut
10	Indicator Light
11	2214, 2224, 2234, 2244 0A & 1A Models
12	Indicator Light-Oven
13	Screw 10-16×7/16“
14	Cover-Backguard Wire
15	Screw 10ABx1/2“
16	Backguard Glass
17	White 2214W &2234W
17	Almond 2214L & 2234L
18	Screw 6-20×3/8“
19	Bezel-Backguard
20	Knob-Selector Switch
21	Knob-Infinite Control (4 Req)
22	Knob-Thermostat
23	Clip
24	Lens-Indicator Light
25	Space
27	Knob-Clock (Start & Stop Time)
28	Support-Backguard (Right)
28	Support-Backguard (Left)
