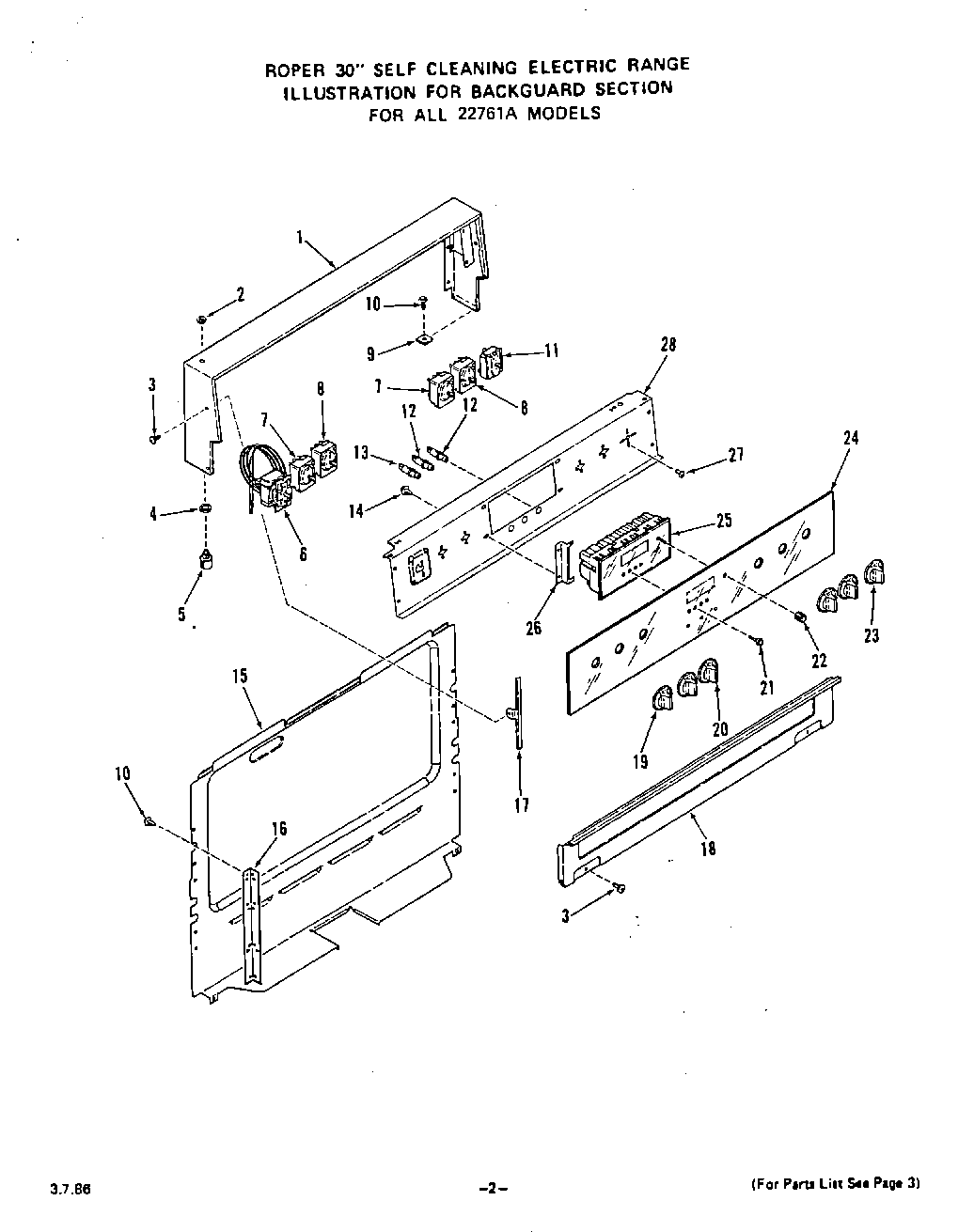

2276^1A 03 – BACKGUARD

Products

Position	Product
1	Frame-Backguard
2	Knurled Nut
3	Screw 6-20×3/8“
4	Lock Nut
5	Push Switch-Oven Light
6	Oven Thermostat
7	Left Front & Right Rear
8	Right Front & Left Rear
9	Plate All 16331A,2A Models
10	Screw 10-16×7/16“
11	Selector Switch
12	Indicator Light
13	Indicator Light
14	Screw 10ABx1/2“
15	Wire Cover-Backguard
16	Support-Backguard (Lt. or Rt.)
17	End Trim-Top Lamp Glass (Lt. or Rt.)
18	Backguard Front-Bottom
19	Knob-Thermostat
20	Knob-Infinite Switch (4 Req)
21	Clock Knob (4 Req)
22	M0282005 Whirlpool Nut
23	Knob-Selector Switch
24	Backguard Glass
25	Clock Electronic
26	Bracket-Clock
27	WPL 78565
28	Mounting Panel-Controls
